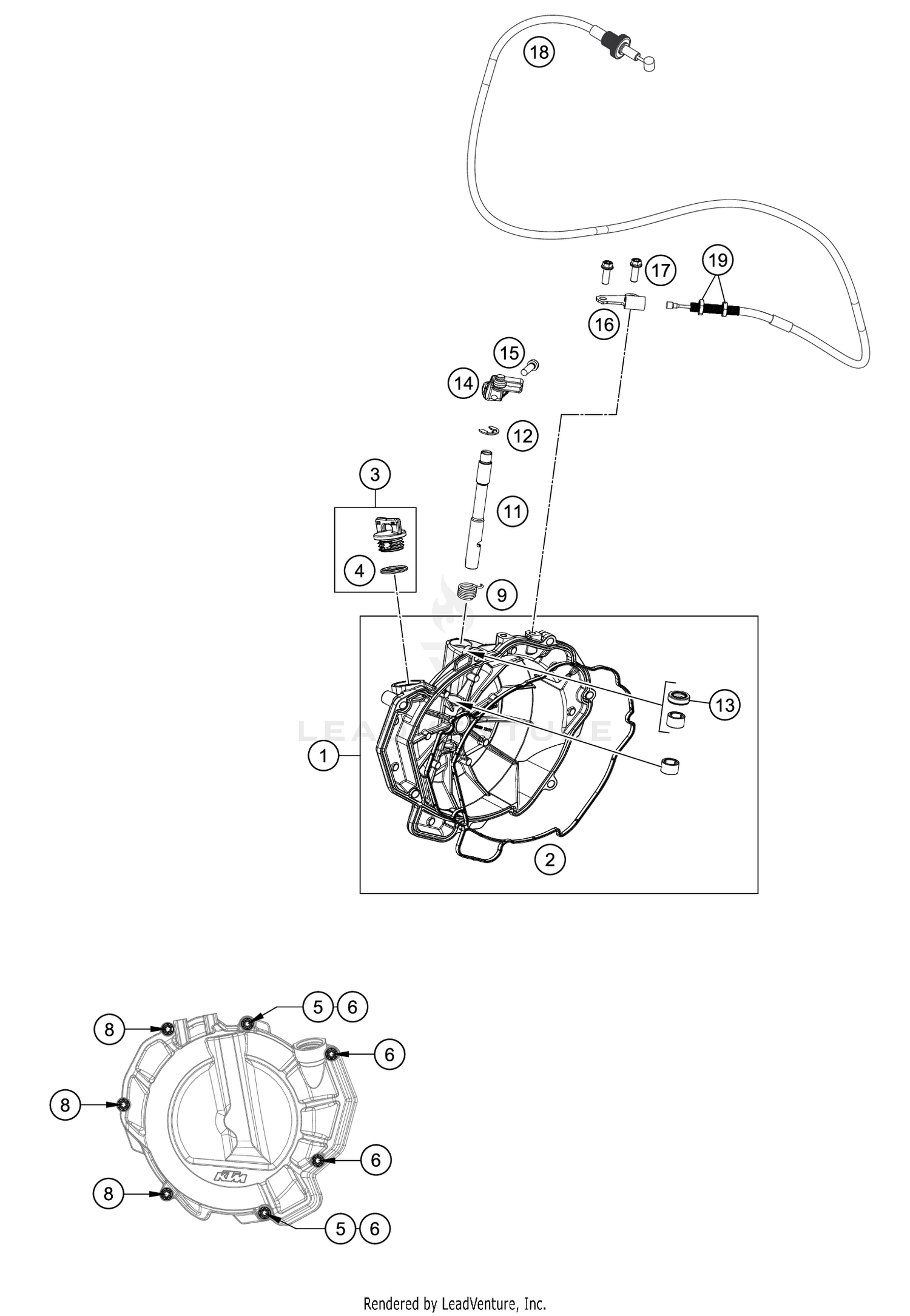

Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clutch cover cpl.
6353000134441
|
$159.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
Form ring, clutch cover
63530025300
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
oil plug cpl. M24x3
58030020100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING 19,00X3,00 NBR
0770191015
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Dowel, 6x8x11.5
59030023000
Superseded by 59030023100
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH collar screw M6x35 TX30
0025060356
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH collar screw M6x25 TX30
0025060256
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
clutch release lever spring
63532048003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
clutch release shaft
63532049000
|
$61.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
retaining washer DIN 6799 - 9
0799090003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
Shaft seal ring 32x45x6.5
0760122060
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
Release lever assembly cmpl.
63532048233
Superseded by 63532048333
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cyl. screw ISO 14580 M6x20 SS
014580060206S
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
Cable retaining bracket
63532052100
|
$13.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M6x16 TX30 SL
0025060166S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
Clutch cable
64102090000
|
$82.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
HEXAGON NUT DIN 934 M8
0934080006
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
