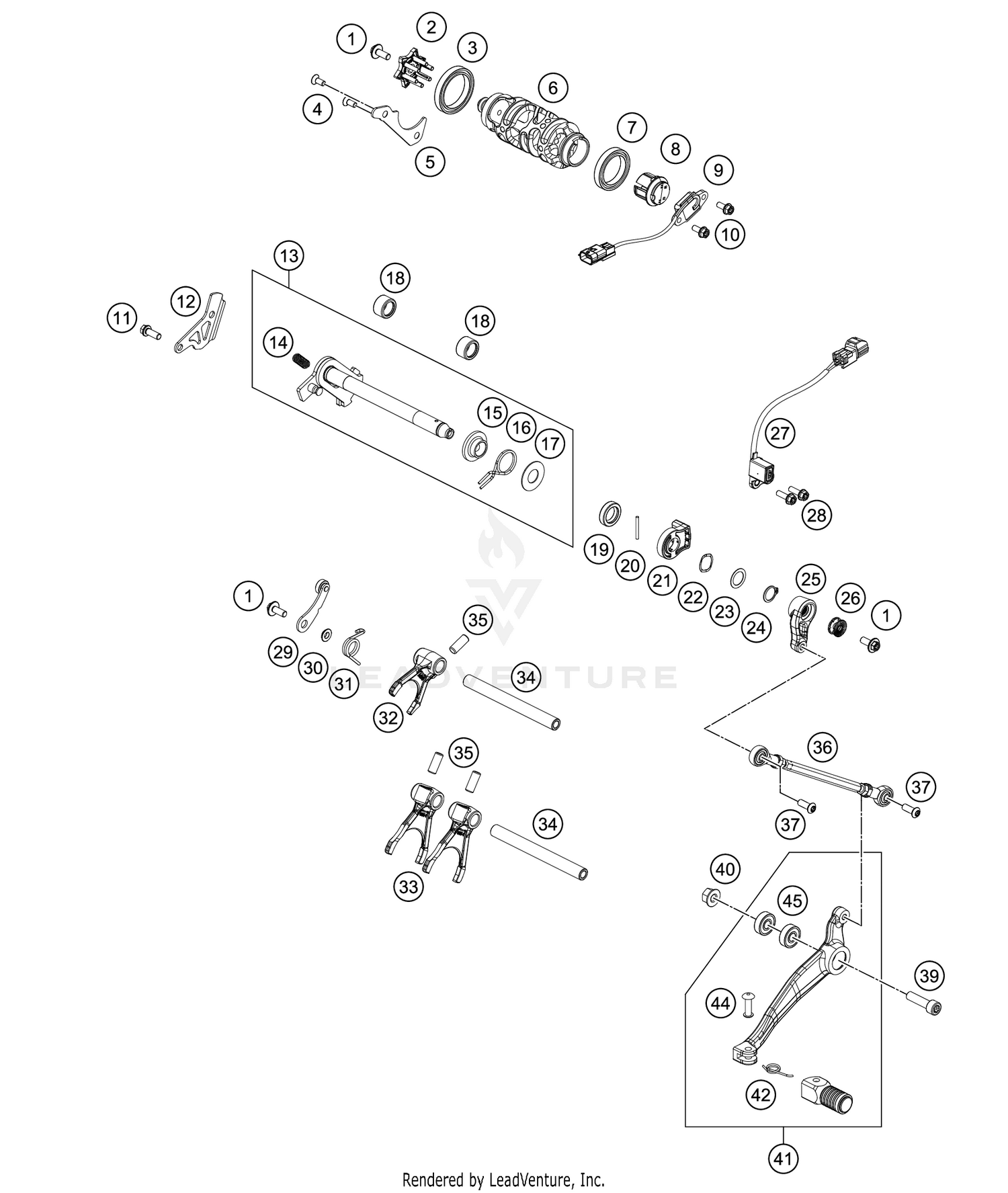

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HH collar screw M6x15 TX30
0024060156S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
Shift locker cpl.
63534015000
|
$51.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
deep groove ball bearing 6807
0625068070
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
INT. TORX FLAT HEAD M5X12 T25
0019050121S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bearing retaining bracket
63534011100
Superseded by 63534011200
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
shift drum 6G
63534012001
|
$112.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
deep groove ball bearing 6806 C3
0625068060
|
$31.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
magnet holder cpl.
79234012020
|
$69.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
gear position sensor
79211023000
|
$142.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M5x12 TX30
0025050126
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M6x16 TX30 SL
0025060166S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
bearing retaining plate
63533022000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
shift shaft cpl.
63534005033
|
$78.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
TENSIONING SPRING 0,8MM
56534013100
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETURNSPRING 2MM
61234014000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOP DISK 14X30X1
54634050000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
needle sleeve HK 1412 14x20x12
54632095000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
dowel pin DIN 7 A1 2.5m6x24
0007025241
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
magnet holder
63534050000
|
$58.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
wave spring Smalley SSB-0075-S17
63534050010
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
Thrust washer DIN 988 14x20x0.5
0988142005
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
retaining ring DIN 471 14x1
0471140100
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
Pull Rod
6413403000033
|
$50.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
PAIR OF WASHERS M 6 NORDLOCK
50233041000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#27
Shift assistant sensor
63534051000
|
$183.03 | ||
|
Available to order. Add to View Price |
|||
|
#28
HH Collar Screw M5x16 ISA30 SS
0025050166S
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
detent arm cpl.
63534024000
|
$38.27 | ||
|
Available to order. Add to View Price |
|||
|
#30
step washer
63534052000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#31
Detent arm spring
63534023000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
shift fork 5-6 gear
63534002000
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#33
Shift fork
63534001100
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#34
shift fork shaft
75034019100
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#35
needle roller D8x20
0402080200
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#36
Shift rod cmpl.
63534036044
|
$68.63 | ||
|
Available to order. Add to View Price |
|||
|
#37
Oval head screw ISR M6x20-A2-70-MK
0738060205S
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
screw ISO 14579-M8x30-10.9-MK black
014579080301S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#40
SELF LOCKING NUT M8 10.9
54310086200
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#41
Gear shift lever preassembled black
6353403104433
|
$143.21 | ||
|
Available to order. Add to View Price |
|||
|
#42
SHIFTING LEVER SPRING 250
54634032100
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT 6X25 FOR SHIFT LEVER
54634031050
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#45
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
