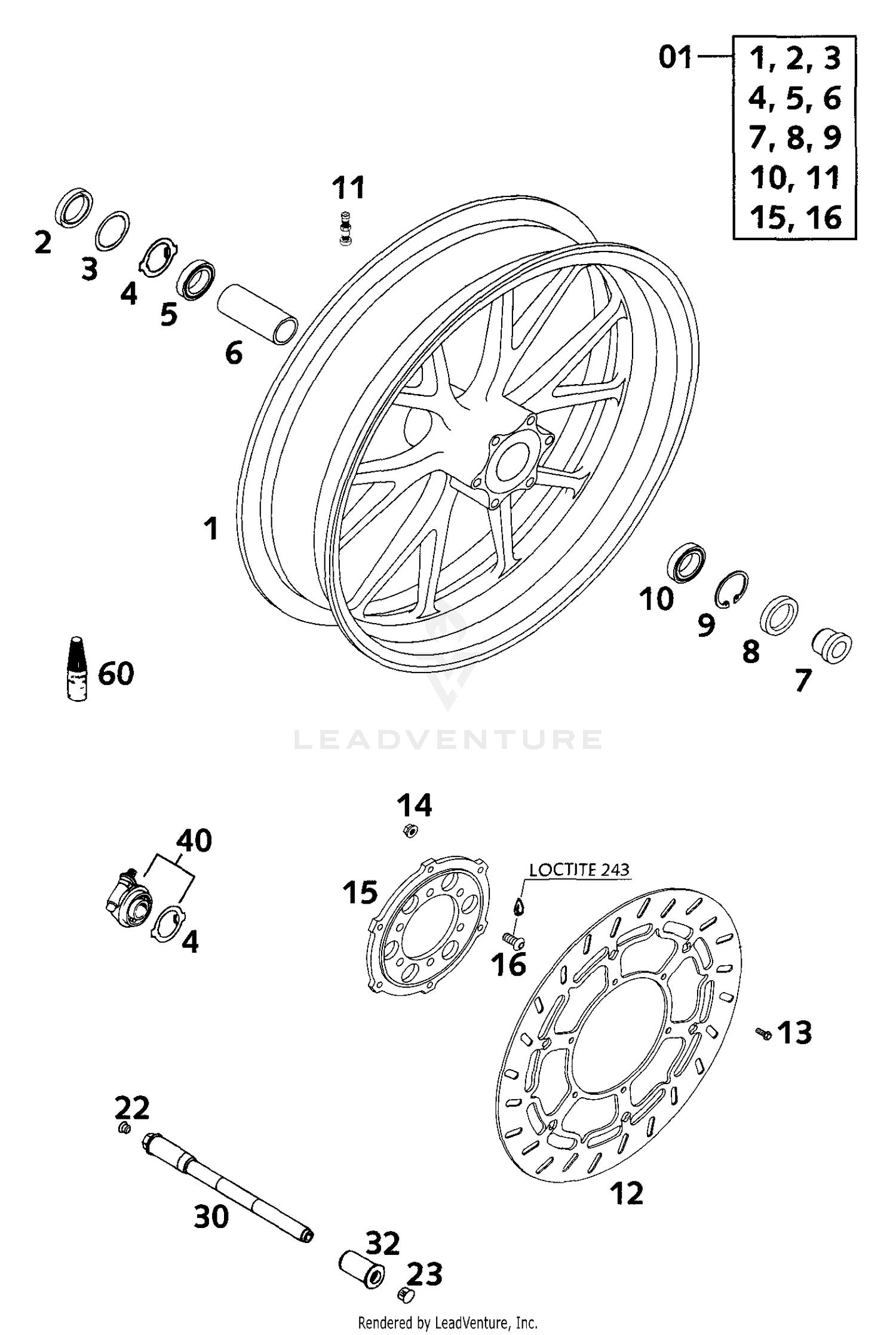

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#01
FRONT WHEEL CPL.3.5X17DUKE'99 (SILVER)
58709068000
|
|||
|
Unavailable |
|||
|
#
FRONT WHEEL CPL.3,5X17DUKE'99 (BLACK)
5870906800030
|
|||
|
Unavailable |
|||
|
#2
SHAFT SEAL RING 40X52X7 B
0760405270
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER 40 X 52 X 0,15 '92
58111054000
|
$1.89 | ||
|
Unavailable |
|||
|
#4
DRIVING DOG F.SPEEDOM.DRIVE'92
58111053100
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
GR.BALL BEAR. 6203-2RSHC3HMTF
0625062032
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEAR.SPACER TUBE 17,5X22X64,5
54609011000
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DISTANCE SLEEVE 17 X 30 X 26,7
58309051000
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT SEAL RING 25X35X7 BTSL
0760253570
|
$18.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP DIN0472-35X1,5
0472035150
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
GR.BALL BEAR. 6003-2RSH/C3HMTF
0625060037
|
$32.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE CPL. BREMBO DUKE 2003
58709077044
Superseded by 58709076000
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE DISK FRONT D=320MM
58309060000
|
$319.29 | ||
|
Unavailable |
|||
|
#13
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
SELF LOCKING NUT M6 10.9
56509064100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRAKE DISC ADAPTER DUKE '99
58709061000
|
|||
|
Unavailable |
|||
|
#16
AH OVAL H.SCREW DIN0170-M 8X20
0107080203
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVERING CAP SFL16
50210086000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLASTIC CAP 3/8'' 2663
58301098000
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
WHEEL SPINDLE M17X250 DUKE'94
58309081000
|
$72.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
AXLE NUT M17 X 1,5 DUKE'94
58309082000
|
$14.48 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPEEDOME.DRIVE 748208(2,66)'94
58311052000
|
$48.79 | ||
|
Available to order. Add to View Price |
|||
|
#60
LOCTITE 243 BLUE 5 ML
6899785
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
