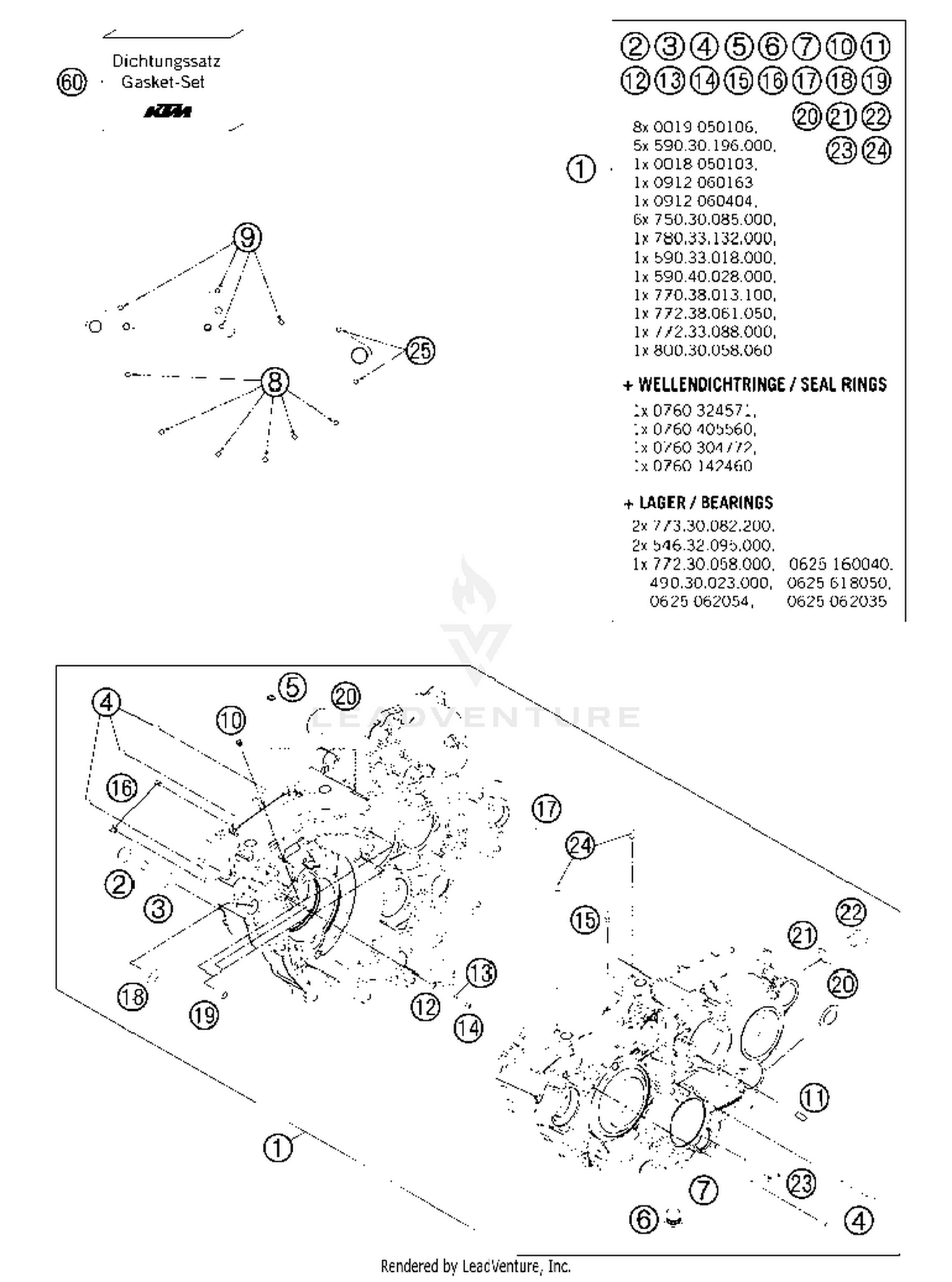

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL. 350
77730000044
Superseded by 77730000244
|
$1,715.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
LOCATING SCREW M8 L=23
58030080000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
CU-SEAL RING 8 X 14 X 3
58030081000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
pipe plug DIN 906 M10x1
0906100100
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw plug M24x1.5
78036081000
Superseded by 78036081100
|
$3.62 | ||
|
Unavailable |
|||
|
#7
O-RING 1,5x11 SILICON
0770110015
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH collar screw M6x55 TX30
0025060556
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH COLLAR SCREW M6X65 TX30
0025060656
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL JET ''60'' M4
80030058060
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
THROTTLE M5X10X0,5
77230066000
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL JET CURVED SIZE 50
81230064050
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING 3,5X2,00 NBR
0770035020
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
AH.SCREW DIN0912-M 4X10
0912040103
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET 100 BING(44-031/180) M4
59030058000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
DOWEL 17 X 19 X 12
59030024000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
DOWEL BUSHING 13,8X11X12
54630027000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
Dowel, 6x8x11.5
59030023000
Superseded by 59030023100
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE BUSH
75030010100
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
oildrain plug with magnet
58030021000
Superseded by 58030021100
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL INTAKEPIPE
77038022000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
CYLINDER ROLLER ZRO 5X8
0402050080
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH COLLAR SCREW M6X85 TX30
0025060856
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#60
GASKET SET 350 SX-F
77230099000
|
$323.28 | ||
|
Available to order. Add to View Price |
|||
