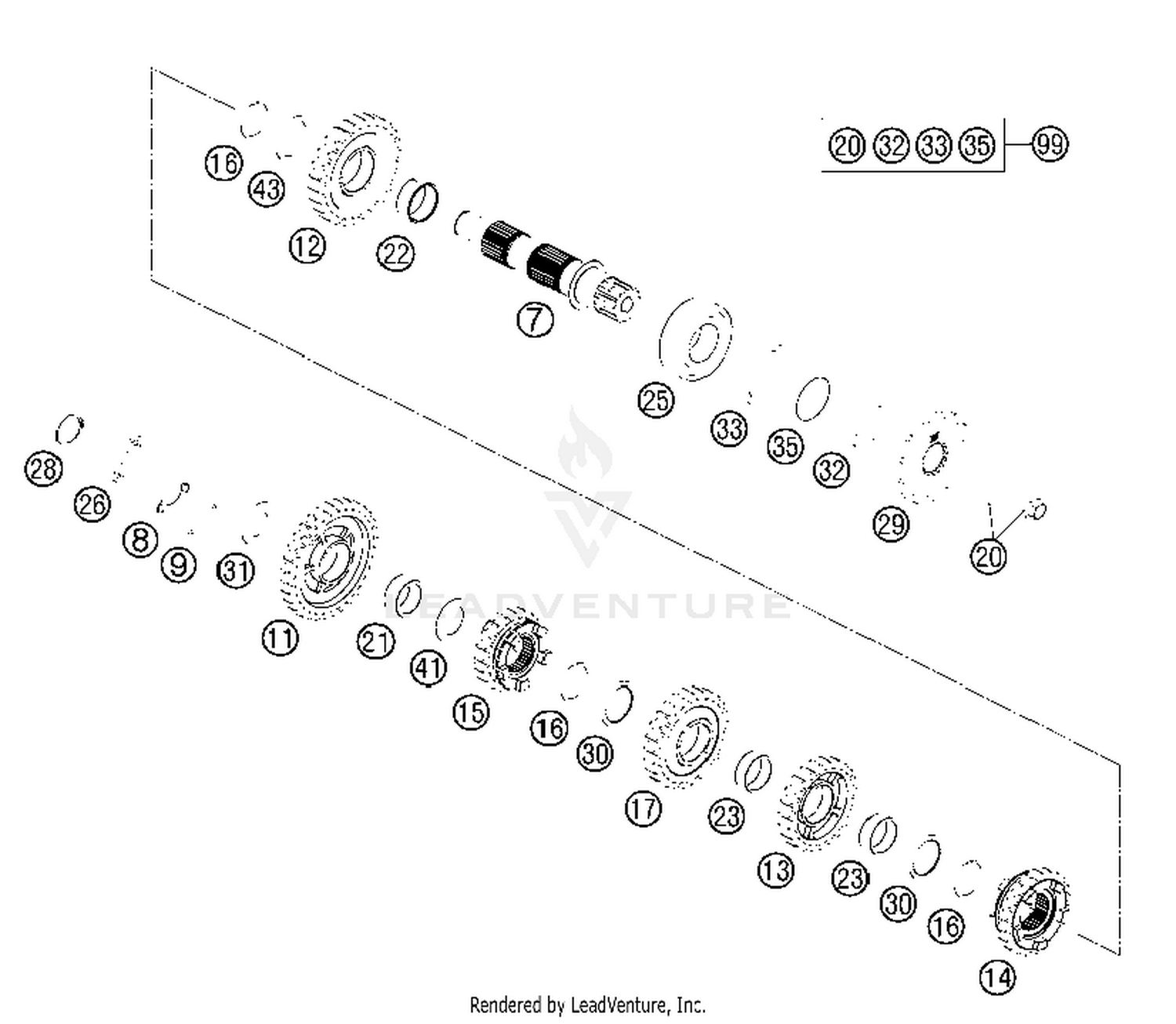

Transmission Ii - Countershaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#7
Output shaft
77233110000
Superseded by 77233110100
|
$158.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAB WASHER BEARING COUNT.SHAFT
78033132000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
hex lobe countersunc screw M5x10 - 10.9
0019050106
Superseded by 0019050106S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
Idler gear, 1st gear, teeth=32
54833211000
Superseded by 79333111000
|
$205.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
Idler gear 2 nd. gear T=26
54833212000
Superseded by 54833212100
|
$108.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
Idler gear 4.G, Z=23
54833214000
Superseded by 54833214100
|
$95.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
Sliding gear 5th Z=22
54833215000
Superseded by 54833215100
|
$110.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
SLIDING GEAR 6.G., Z=20
54833216000
|
$145.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP WS24
0417024000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
Idler gear, 3rd gear, teeth=25
54833213000
Superseded by 79333113000
|
$144.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW 10.9+SPRING WASHER
59033034044
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEEDLE BEARING K 20X26X12
0405202612
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#22
NEDDLE BEAR. K24X28X11,9 DIV.
0405242812
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
NEEDLE BEAR.K 22X26X10 DIVIDED
0405222611
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
cylindrical roller bearing NJ205
49030023000
|
$87.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL BEARING 6203 JR2 C3
0625062035
|
$17.04 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP DIN 0471-17X1, 5
0471170015
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
Front sprocket 13áteeth
50033029013
Superseded by A46033029013
|
$36.40 | ||
|
Unavailable |
|||
|
#29
Front sprocket 14áteeth
50033029014
Superseded by A46033029014
|
$36.40 | ||
|
Unavailable |
|||
|
#30
STOP DISC 25X0,8X30X30X7H
54833043000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
STOP DISK 17,2X30X1,3
77233020000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPACER BUSHING 12MM
54633014100
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHAFT SEAL RING 32X45X7 BSLNBR
0760324571
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING 25,12X1,78 NBR70
0770020220
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#41
STOP DISC 20,2X30X1
54833080000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#43
STOP DISC 25X31X1,5
54833044000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#99
Counter shaft repair kit
00050000941
Superseded by 78033010010
|
$61.04 | ||
|
Unavailable |
|||
