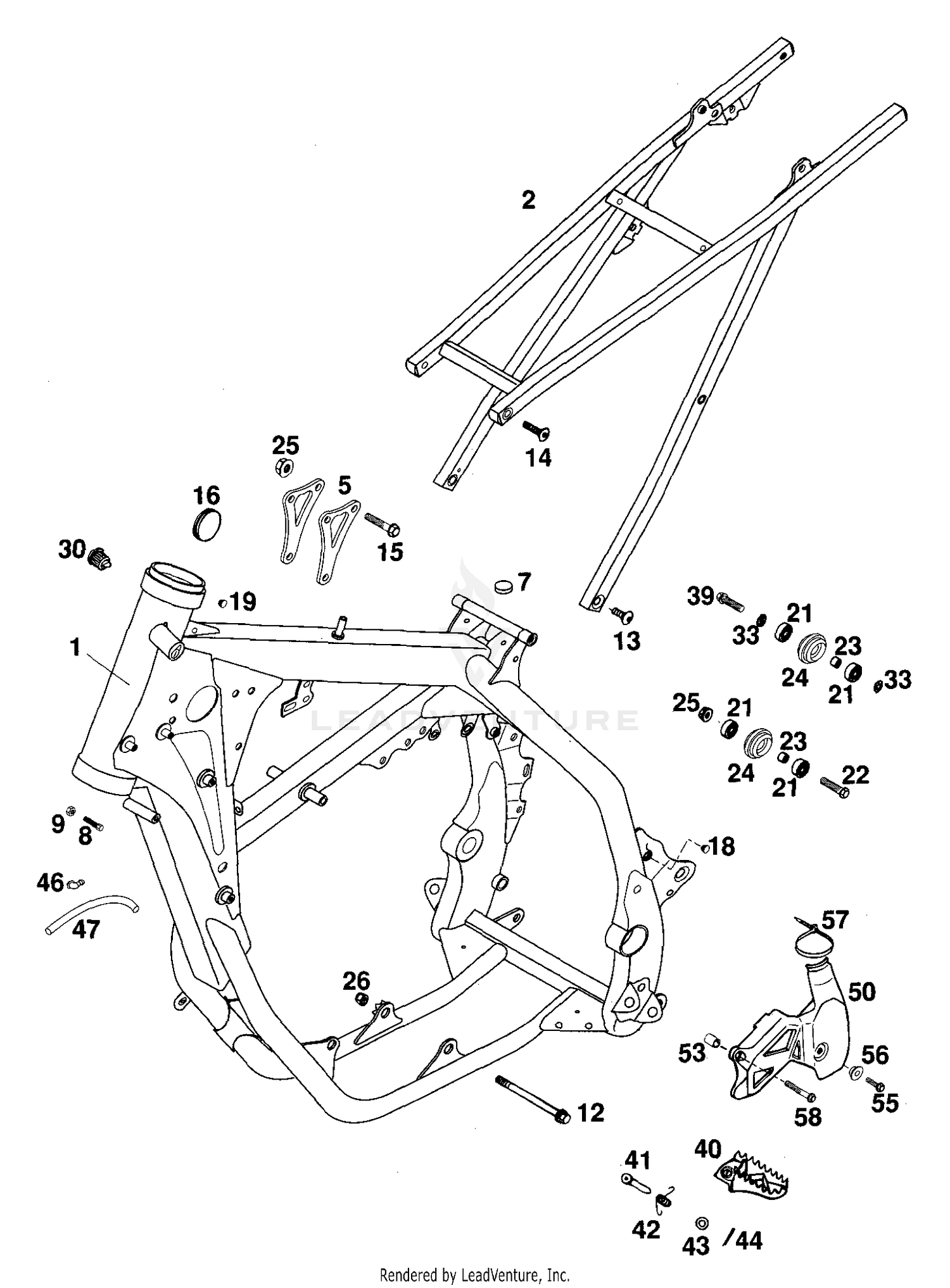

Frame, Sub Frame Diagram

Item MSRP Qty
#1 FRAME 125/200 SX,MXC,EXC 2000 (WITHOUT LOCK BODY, SILVER)
50303001200
Unavailable
#1 FRAME 125/200 EXC EU/AUS 2000 (WITH LOCK BODY, SILVER)
50303001300
Unavailable
#2 S.FRAME CPL.ALU 125-380 '98
50303002000
Unavailable
#5 REINFORCING BRACKET 125 '98
50303013000
 $17.05
Unavailable
#5 REINFORCING BRACKET 200 '98
52303013000
 $18.89
Available to order.
Add to View Price
#7 RUBBER BUFFER FOR TANK '98
50307020000
 $4.83
Available to order.
Add to View Price
#8 SPECIAL SCREW M8X26 WS=10
59001037000
 $3.62
Available to order.
Add to View Price
#9 HEXAGON NUT DIN0934-M 8
0934080003
 $2.41
Available to order.
Add to View Price
#12 engine brac.scr. M10x105 WS13
54603013000
 $14.29
Available to order.
Add to View Price
#13 FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
 $2.41
Available to order.
Add to View Price
#14 SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
#15 HH COLLAR SCREW M8X44 WS13
56530079000
Superseded by 56530079000S
 $3.62
Available to order.
Add to View Price
#16 PLUG 37MM
54606004000
 $2.41
Available to order.
Add to View Price
#18 PLASTIC CAP SFL10
54403135000
 $2.41
Available to order.
Add to View Price
#19 PLUG
36111021000
 $1.04
Available to order.
Add to View Price
#21 GROOVED BALL BEAR. 608 2RS C3
0625006087
 $25.18
Available to order.
Add to View Price
#22 HH collar screw M8x35 TX40
0015080353
Superseded by 0025080356
 $4.83
Available to order.
Add to View Price
#23 BUSHING 8.2 X 12 X 6
74003021000
 $3.62
Available to order.
Add to View Price
#24 CHAIN ROLL D=30MM 125-380 '99
52303053000
 $8.13
Available to order.
Add to View Price
#25 SELF LOCKING NUT M8 10.9
54310086200
 $3.62
Available to order.
Add to View Price
#26 SELF LOCKING NUT M10 CU WS=14
54310086100
 $2.41
Available to order.
Add to View Price
#30 PLASTIC CAP
42007049000
 $1.29
Available to order.
Add to View Price
#33 LOCK WASHER 8MM
36003014000
 $2.41
Available to order.
Add to View Price
#39 HH collar screw M8x30
0015080303
Superseded by 0025080306
 $3.62
Available to order.
Add to View Price
#40 FOOTREST L/S
59003040050
Superseded by 47103040000
 $51.58
Available to order.
Add to View Price
#40 FOOT PED L/S SILVER WIDE 2000
59003040150
Unavailable
# FOOTREST R/S
59003041050
Superseded by 47103041000
 $50.26
Available to order.
Add to View Price
# FOOT PED R/S SILVER WIDE 2000
59003041150
Unavailable
#41 PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
 $14.62
Available to order.
Add to View Price
#42 FOOTREST SPRING L/S & R/S
54603041000
 $6.15
Available to order.
Add to View Price
#43 washer DIN 125 A 10.5
0125100003
 $2.41
Available to order.
Add to View Price
#44 PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
 $1.20
Available to order.
Add to View Price
#46 ANGLE PIECE '97
50303089000
 $6.15
Available to order.
Add to View Price
#47 PVC-HOSE 7X10 PER METER
55007016001
 $7.14
Available to order.
Add to View Price
#50 SPROCKET COVER
54607061000
 $16.79
Available to order.
Add to View Price
#53 BUSHING 6,5X8X11
54613038150
 $4.83
Available to order.
Add to View Price
#55 HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
 $3.62
Available to order.
Add to View Price
#56 BUSH FOR SPOILER 6X11X16X7,5
50308053000
 $6.70
Available to order.
Add to View Price
#57 CABLE TIE 200/3,6MM BLACK
44011076200
 $1.20
Available to order.
Add to View Price
#58 HH collar screw M6x40 TX30
0015060403
Superseded by 0025060406
 $3.62
Available to order.
Add to View Price
