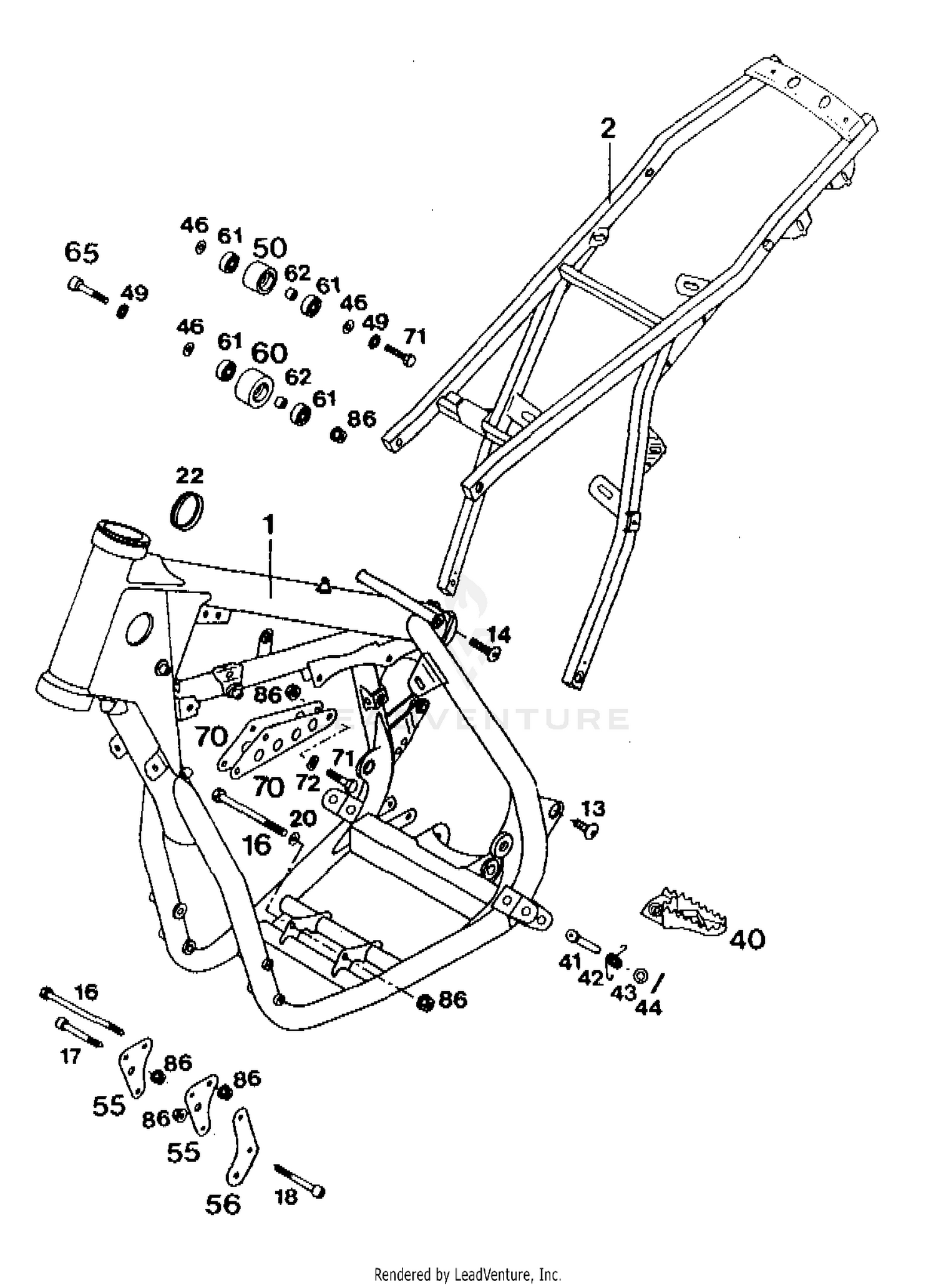

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
56503001900
|
|||
|
Unavailable |
|||
|
#2
SUB FRAME
56503002900
|
|||
|
Unavailable |
|||
|
#3
PLUG 12 X 17 MM
58303002090
|
$1.09 | ||
|
Unavailable |
|||
|
#13
FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET SCREW
54510052000
|
|||
|
Unavailable |
|||
|
#16
HH SCREW DIN931 M8x110
0931081103
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
AH SCREW DIN912 M8X50
0912080503
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
AH SCREW DIN912 M8X55
0912080553
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
washer DIN 125 A -8.4
0125080003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
SLEEVE FOR STEERING HEAD
54635022000
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOT PED L/S
54603040000
|
|||
|
Unavailable |
|||
|
#
FOOT PED R/S
54603140000
|
|||
|
Unavailable |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#46
WINDOW PANE 8,4X14X1MM
50203028000
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#49
LOCK WASHER 8MM
36003014000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
CHAIN ROLL D=30MM
50203053000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#55
ENGINE BRACKET STEEL
56503055000
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#56
EXH.BRACKET
56505073000
|
|||
|
Unavailable |
|||
|
#60
CHAIN ROLL
50203053100
|
|||
|
Unavailable |
|||
|
#61
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#62
BUSHING 8.2 X 12 X 6
74003021000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#65
H H SCREW
0931080353
|
|||
|
Unavailable |
|||
|
#70
REINFORCI BRKT.
54503045000
|
|||
|
Unavailable |
|||
|
#71
HH SCREW DIN0933-M 8X30
0933080303
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#72
SPRING WASHER
0137080000
|
|||
|
Unavailable |
|||
|
#86
SELF LOCKING NUT
54310086000
|
|||
|
Unavailable |
|||
