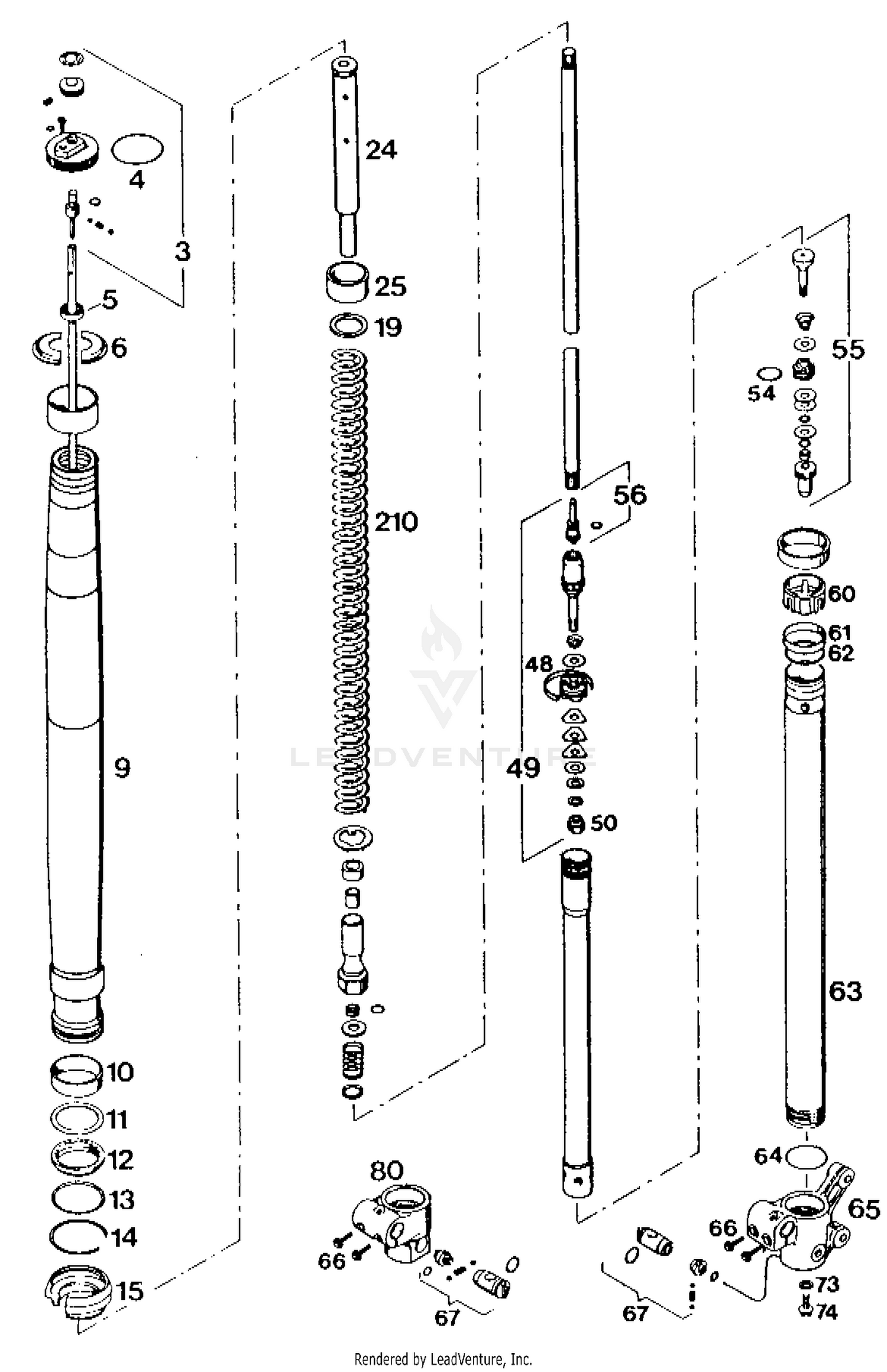

Front Fork Legs Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
SCREW CAP CPL.
57601036044
|
|||
|
Unavailable |
|||
|
#4
O-RING
0770430030
|
|||
|
Unavailable |
|||
|
#5
RUBBER RING
54501051000
|
|||
|
Unavailable |
|||
|
#6
KEY
54501050000
|
|||
|
Unavailable |
|||
|
#9
OUTER TUBE
57601004000
|
|||
|
Unavailable |
|||
|
#10
GUIDE BUSH LOWER
57501026000
|
|||
|
Unavailable |
|||
|
#11
RING
56401027000
|
|||
|
Unavailable |
|||
|
#12
SEAL
58001805000
|
|||
|
Unavailable |
|||
|
#13
RING
56401127000
|
|||
|
Unavailable |
|||
|
#14
CIRCLIP
56401029000
|
|||
|
Unavailable |
|||
|
#15
DUST SCRAPER
56401025100
|
|||
|
Unavailable |
|||
|
#19
WASHER
54501019000
|
|||
|
Unavailable |
|||
|
#24
HYDROSTOP CPL IBS
56501457244
|
|||
|
Unavailable |
|||
|
#25
PRELOAD BUSH
56401022200
|
|||
|
Unavailable |
|||
|
#25
PRELOAD BUSH
56401022000
|
|||
|
Unavailable |
|||
|
#25
PRELOAD BUSH
56401022100
|
|||
|
Unavailable |
|||
|
#48
PISTON RING
54501070000
|
|||
|
Unavailable |
|||
|
#49
REBOUND DAMPING
57601071044
|
|||
|
Unavailable |
|||
|
#50
HEX,NUT
54501072000
|
|||
|
Unavailable |
|||
|
#54
O-RING
0770020160
|
|||
|
Unavailable |
|||
|
#55
COMPRESS,DAMP.CPL, K23M94US
54601476944
|
|||
|
Unavailable |
|||
|
#56
ADJUSTING SCREW
56501467244
|
|||
|
Unavailable |
|||
|
#60
BUSHING
54501077-000
|
|||
|
Unavailable |
|||
|
#61
BEARING RING
54501045300
|
|||
|
Unavailable |
|||
|
#62
RING 39 X 42 X 1 RING
54501046000
|
|||
|
Unavailable |
|||
|
#63
INNENROHR L-625MM ’92 FORK TUBE
54501003300
|
|||
|
Unavailable |
|||
|
#64
O-RING 38,00X2,00 NBR 70 SH
0770380020
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#65
AXLE CLAMP L/S
54501206100
|
|||
|
Unavailable |
|||
|
#66
HH COLLAR SCREW M 7X25 WS=8
0015070253
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#67
ADJUSTABLE KNOB CP
54501078144
|
|||
|
Unavailable |
|||
|
#73
SEAL RING
54501081000
|
|||
|
Unavailable |
|||
|
#74
SCREW MBX20
54501082000
|
|||
|
Unavailable |
|||
|
#80
AXLE CLAMP R/S
57601106000
|
|||
|
Unavailable |
|||
|
#210
SPRING
54501021405
|
|||
|
Unavailable |
|||
|
#210
SPRING
54501021420
|
|||
|
Unavailable |
|||
|
#210
FORK SPRING
54501021440
|
|||
|
Unavailable |
|||
