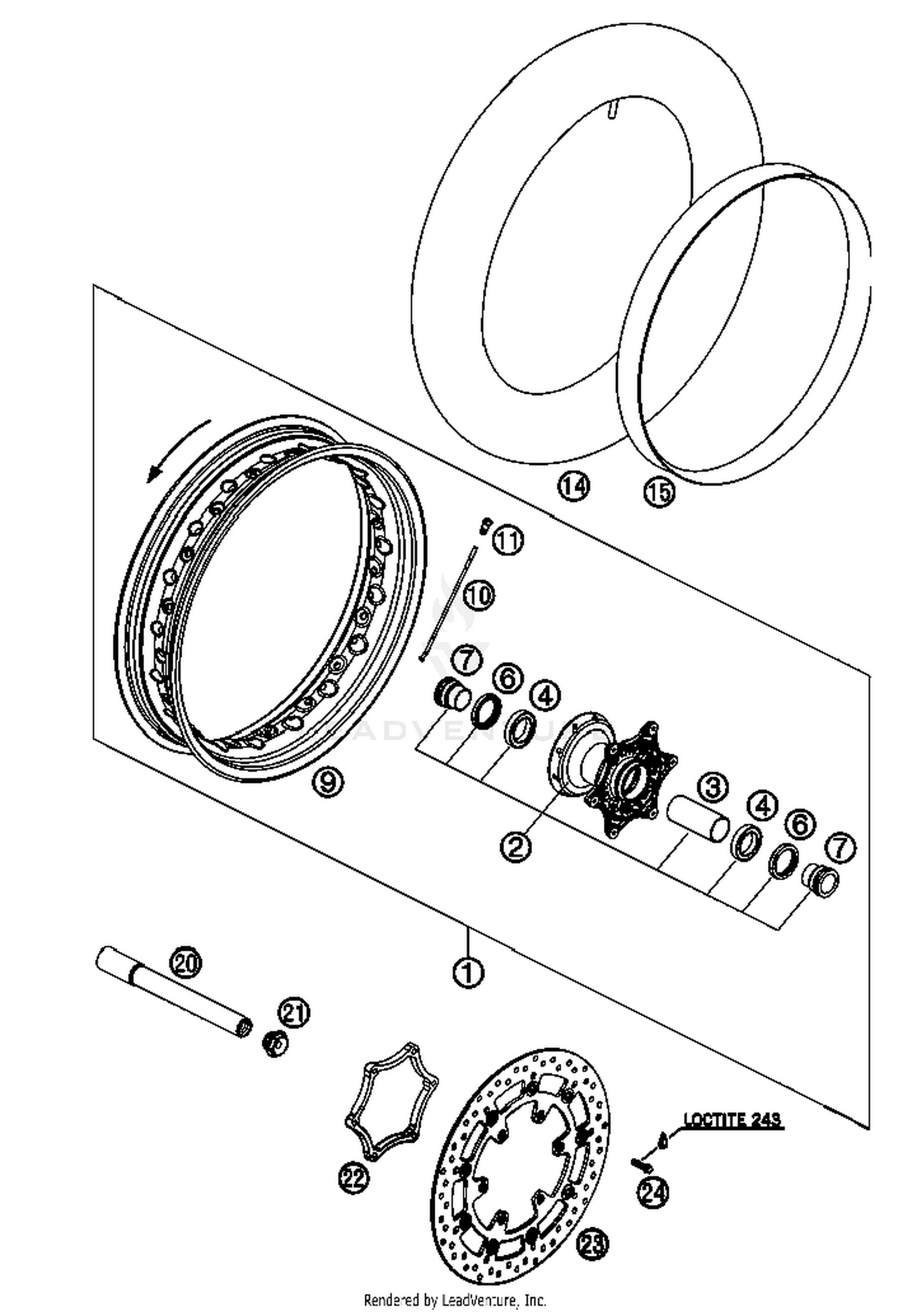

2007 KTM SUPERMOTO 690 Front Wheel OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL CPL. 3,5X17'' 07
7500900104430
|
$819.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRONT WHEEL HUB CPL.
75009010044
Superseded by 7500901004491
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEA.SPACERTUBE 35X2 L=79,4 03
54809011000
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GR.BALL BEAR.6906 DDU2CG23S6NM
0625069068
|
$37.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT SEAL RING 35X47X7 TC
0760354771
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER BUSHING FRONT WHEEL 07
75009012000
|
$29.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM FRONT 3,5X17'' BLACK 07
7500907000030
|
$436.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPOKE M4,5X172-15G 17'' INOX
75009073172
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spoke nipple, Quadrax M4,5
50309072000
Superseded by 81210072200
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE 3,5X17"
58309075000
|
|||
|
Unavailable |
|||
|
#15
rim tape 17"
58309073000
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
Wheel spindle, front, D=26ámm
75009081000
Superseded by 75009081100
|
$86.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
Axle bolt M24x1.5 SW=27
54809082000
Superseded by 54809082200
|
$10.49 | ||
|
Unavailable |
|||
|
#22
Brake discs adapter 10.1 mm
75009061000
Superseded by 7500906100033
|
$139.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRAKE DISC FRONT 320MM 07
75009060000
|
$274.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPECIAL SCREW M6X26 SW=8 10.9
59009062023
Superseded by 59009062026
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
