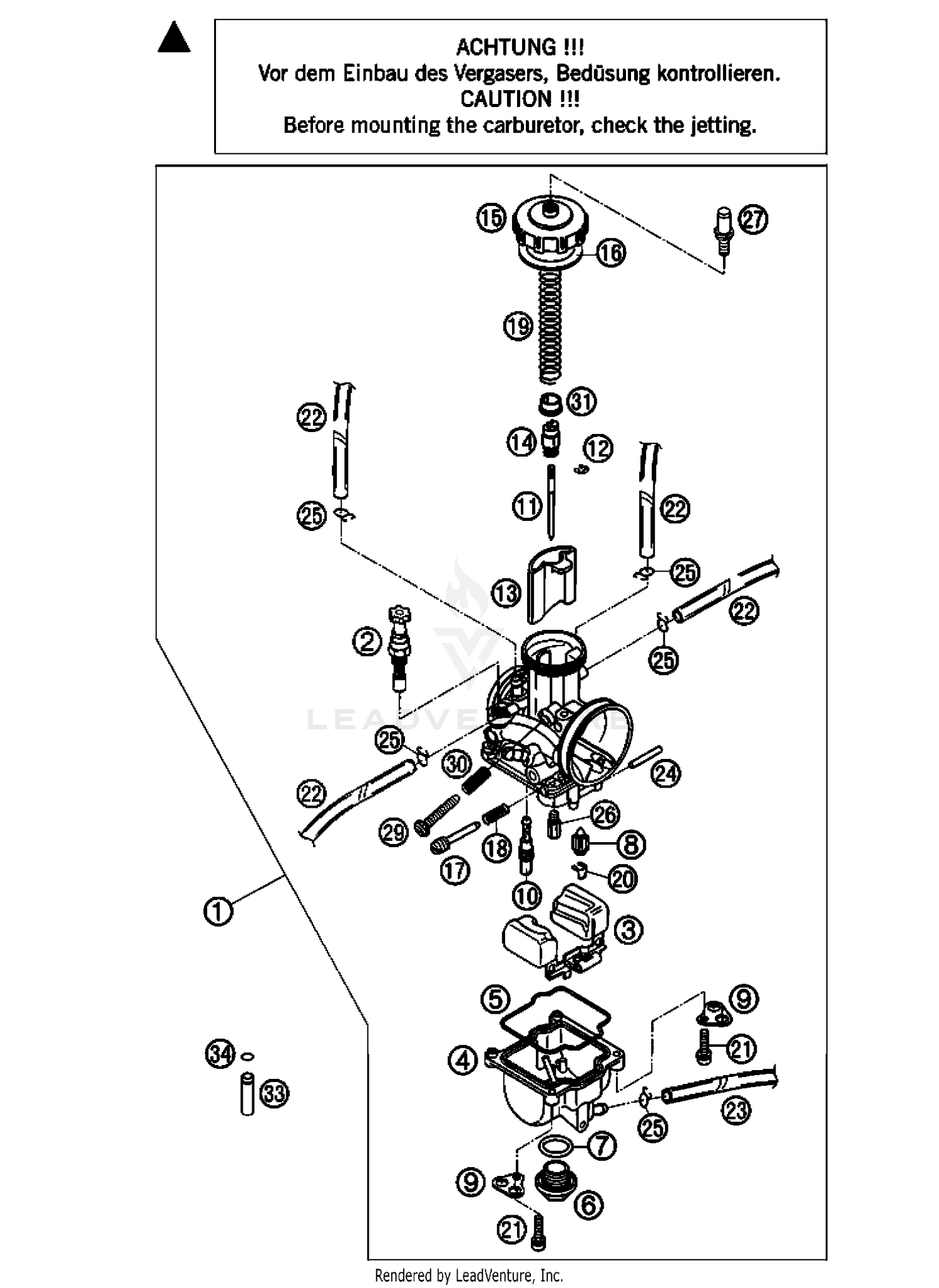

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURATOR KEIHIN PWK 39 04
51531001144
Superseded by 50331101144
|
$404.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
STARTER PISTON CPL.
54631245000
|
$105.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT R-39 16GRAM
54631209000
|
$60.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT CHAMBER
54631211000
|
$87.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET FLOAT CHAMBER
54531610000
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG M 18X1
54531699000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING 18,00X2,30 NBR 70
0770180230
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLOAT NEEDLE
54631220000
|
$36.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINING PLATE FOR BLEEDER
54531612100
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLE JET 40 KEIHIN
54531607040
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLE JET 42 KEIHIN
54531607042
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLE JET 45 KEIHIN
54531607045
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLE JET 48 KEIHIN
54531607048
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLE JET 50 KEIHIN
54531607050
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLE JET 52 KEIHIN
54531607052
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
IDLE JET 55 KEIHIN
54531607055
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN N3CE 07
51531034000
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN R1470H 08
54531634470
|
$12.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN R1471H 08
54531634471
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN R1472H 08
54531634472
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN N3CH 03
54731034000
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN N3CW 03
54731034100
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN N3CG 03
54731034400
|
$12.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN N3CF 04
54731034500
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE KEIHIN N3CJ 04
54731034600
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP FOR JET NEEDLE
54531629000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
THROTTLE VALVE 60 KEIHIN
54631235006
|
$198.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
THROTTLE VALVE 55 KEIHIN
54631235055
|
$147.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
THROTTLE VALVE 65 KEIHIN
54631235106
|
$237.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
NIPPLE
54631232000
|
$45.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
CARBURETOR COVER
54631227000
|
$52.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER SEAL RING 40X46X1
54531628000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#17
ADJUSTMENT SCREW
54531617000
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING FOR ADJUSTMENT SCREW
54531615000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
SLIDING SPRING
54831030000
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
54531621000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH COLLAR SCREW M 4X13 WS=6
0016040163
Superseded by 0016040133
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
PVC-HOSE 4X6MM
31007007101
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#23
PVC-HOSE 3X5MM
52031137001
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
ARM PIN FLOAT
54531608000
Superseded by 57331008000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP 6 MM
54531696000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 178 KEIHIN
54531623178
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 180 KEIHIN
54531623180
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 182 KEIHIN
54531623182
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 185 KEIHIN
54531623185
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 188 KEIHIN
54531623188
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 190 KEIHIN
54531623190
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 192 KEIHIN
54531623192
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 195 KEIHIN
54531623195
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 198 KEIHIN
54531623198
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 200 KEIHIN
54531623200
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET GR. 202 KEIHIN
54531623202
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN JET 205 KEIHIN
54531623205
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
THROTTLE CALBE HOLDER M6X0,75
54831029000
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
ADJUSTMENT SCREW M 5
54631219100
|
$20.01 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING
54631118000
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING CAP
54631231000
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
SLIDE STOP
50331029036
|
|||
|
Unavailable |
|||
|
#34
O-RING 6,07X1,78 FPM75
0770060018
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
