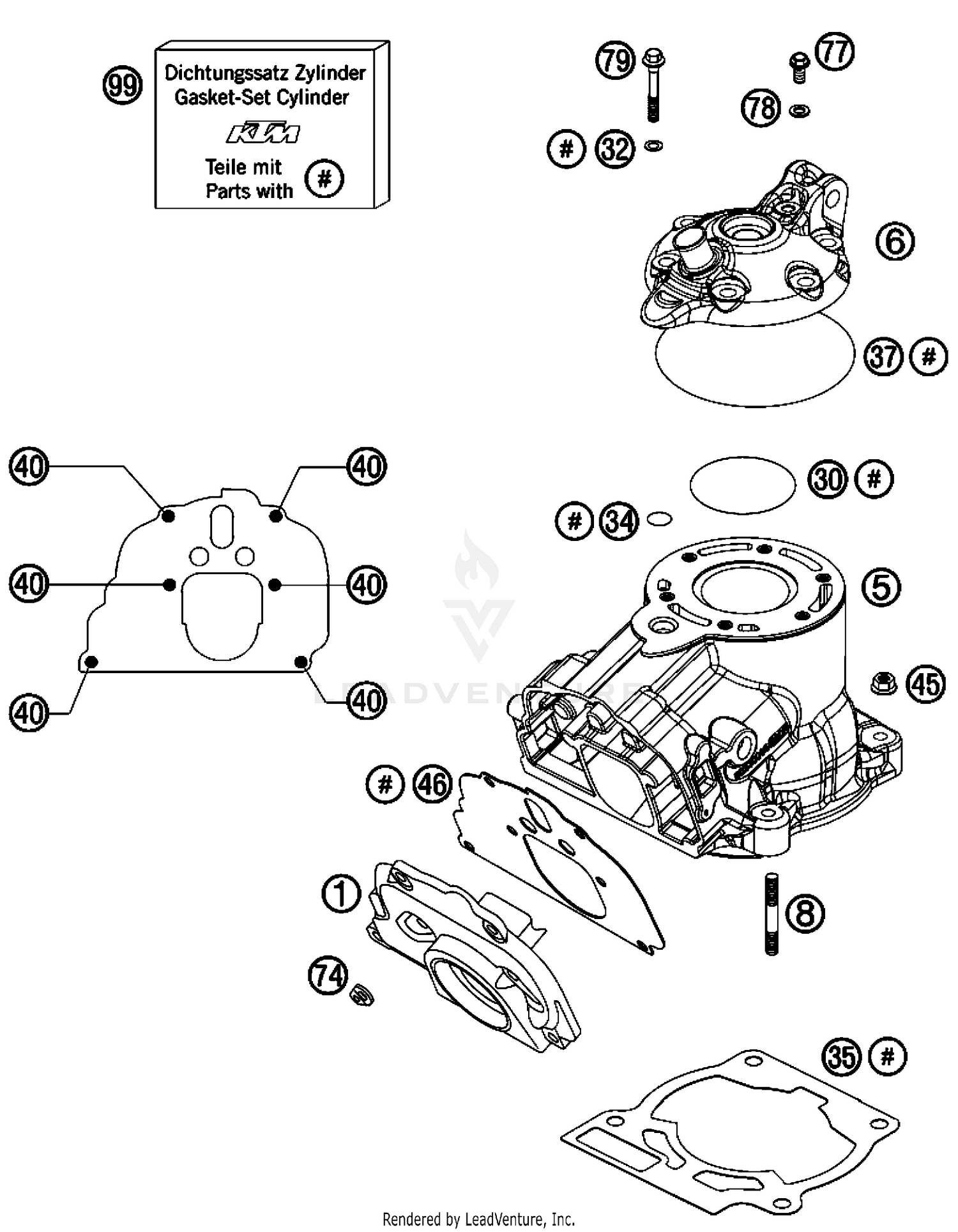

Cylinder, Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
INTERMEDIATE FLANGE 125 06
50337001200
|
$59.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
CYLINDER AND PISTON CPL. 150
51530005000
Superseded by 51530038300
|
$1,057.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
CYLINDER HEAD 150
51530006000
Superseded by 51530006200
|
$204.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
STUD DIN0835-M 8X27
0835080273
Superseded by 0835080276
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING 62,00X2,00 VITON
0770062020
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CU-SEAL RING DIN7603- 7,3X12X1
50230032010
Superseded by 0603070121
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING 12X2 VITON GREEN
0770012021
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,20MM
50330035020
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,25MM
50330035025
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,40MM
50330035040
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,50MM
50330035050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#35
CYLINDER BASE GASKET 0,75MM
50330035075
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING 86X2 VITON75SHORE GREEN
0770086020
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#40
HH COLLAR SCREW M 5X20 WS=6
0014050203
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#45
HH COLLAR NUT M 8 WS=12
50330045000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#46
INTERMEDIATE FLANGE GASKET
50337046200
Superseded by 50337046300
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#74
RETAINING PLATE
51005074000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#77
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$3.62 | ||
|
Unavailable |
|||
|
#78
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#79
CYLINDER HEAD SCREW
50330079000
Superseded by 50430079000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#99
CYLINDER GASKET SET 125/200 07
50330097100
|
$62.80 | ||
|
Available to order. Add to View Price |
|||
