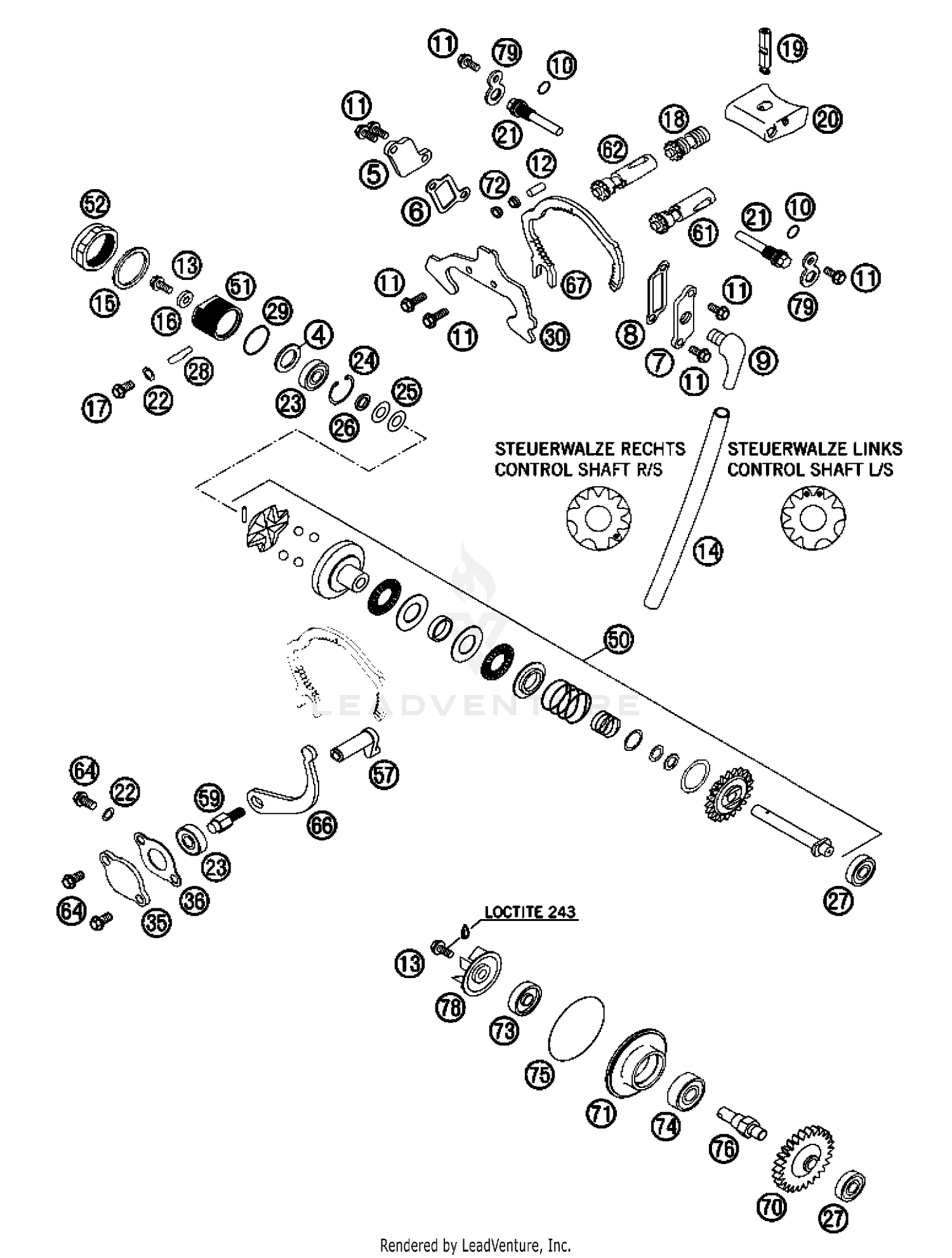

Exhaust Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#4
STOP DISK 14,2X22X1,5
49033031015
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
SIDE COVER R/S 2007
50337005100
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET SIDE COVER R/S 07
50337006100
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
SIDE COVER LEFT 2007
50337007200
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET SIDE COVER L/S 07
50337008100
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
ANGLE PIECE 90 DEGREE M10X1
50330022000
Superseded by 51030022000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING 8,00X2,00 NBR
0770008020
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH COLLAR SCREW M 5X12 WS=6
0014050123
|
$2.41 | ||
|
Unavailable |
|||
|
#12
NEEDLE ROL. DIN5402 NRB 5X15,8
0402051600
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
HH collar screw M5x16 TX30
0015050163
Superseded by 0025050166
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE RUBBER 6X9 DVOH 200MM
50332095200
|
$9.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
CU-SEAL RING DIN7603-26X32X2
0603262322
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER 5,2 X 12 X 3
50337050064
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$3.62 | ||
|
Unavailable |
|||
|
#18
ECCENTRIC FOR CRANKBOLT 125'98
50337018044
|
$62.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
CRANK BOLT F.CONTROL FL.125'98
50337019000
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
CONTROL FLAP 125 CPL.
50337020444
Superseded by 50337020544
|
$69.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
AXLE FOR CONTRIL FLAP 2007
50337021100
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP DIN0472-22X1
0472022100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER DIN2093-8,2X16X0,6
0093821606
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER BUSHING 8X12X2,3
50337050063
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALL BEARING 608 RS C3
0625006082
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RINGSTRING 4MM NBR 70 PER/M
00099300011
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING 16,00X3,00 NBR 70
0770160030
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHEET METAL GUIDE 3MM 125'98
50337030000
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLOSING COVER '98
50337035000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLOSING COVER GASKET 1MM
50337035050
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#50
CENTRIFUGAL TIMER CPL. 125'98
50337050044
|
$246.39 | ||
|
Available to order. Add to View Price |
|||
|
#51
BUSHING HOLDER M 26X1 '98
50337050062
|
$36.73 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLOSING NUT M 26X1 WS=30
50337050061
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#57
CONTROL LEVER 125/200'98
50337057000
|
$66.54 | ||
|
Available to order. Add to View Price |
|||
|
#59
CONTROL SHAFT M 6 WS=10 '98
50337059000
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#61
CONTROL SHAFT CPL.L/S 125 2001
50337061144
|
$56.64 | ||
|
Available to order. Add to View Price |
|||
|
#62
CONTROL SHAFT CPL.R/S 125 2001
50337062144
|
$56.64 | ||
|
Available to order. Add to View Price |
|||
|
#64
HH collar screw M6x12 TX30
0015060123
Superseded by 0025060126
|
$3.62 | ||
|
Unavailable |
|||
|
#66
LEVER F. CONTROL SEGMENT '98
50337066000
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#67
CONTROL SHAFT SEGMENT 125'98
50337067000
|
$47.29 | ||
|
Available to order. Add to View Price |
|||
|
#70
DRIVE WHEEL 26-T 125/200'98
50335054026
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#71
BUSHING SUPPORT WATER PUMP '98
50335056000
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#72
ROLLER GUIDE 5X6,1X8X4 '98
50337072000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#73
SHAFT SEAL RING 8X24X7 A DUO
0760082472
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#74
BALL BEARING 6000/C3
0625060001
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#75
O-RING 49,00X2,50 NBR
0770049025
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#76
Water pump shaft
50335054050
Superseded by 50335054250
|
$21.88 | ||
|
Available to order. Add to View Price |
|||
|
#78
WATER PUMP WHEEL 07
54835005000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#79
LOCK METAL SHEET 2MM '98
50337079000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
