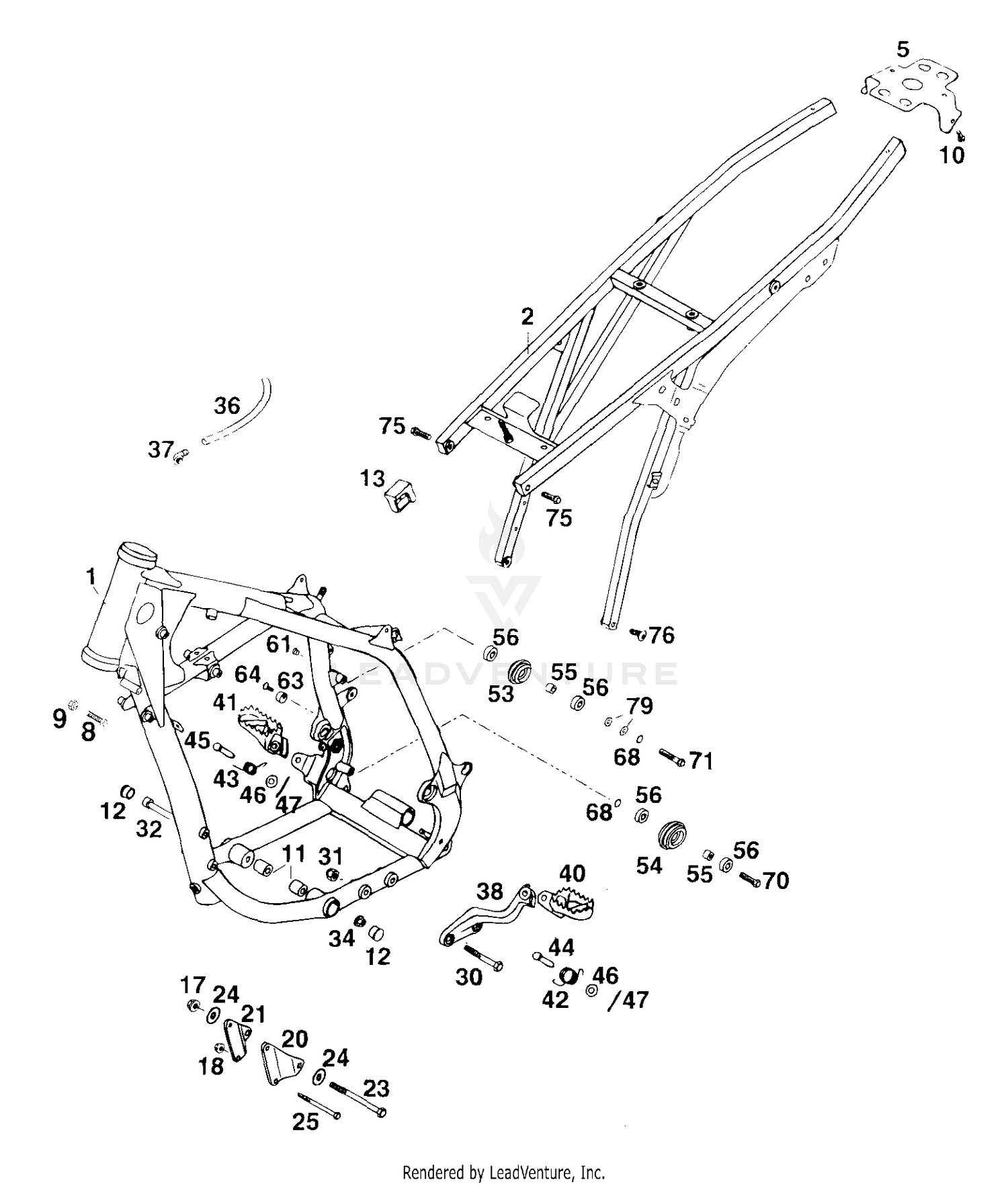

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME 400 SXC USA SILVER '00
58303101200
|
|||
|
Unavailable |
|||
|
#2
SUB FRAME CPL. ALU '96
58303102400
|
|||
|
Unavailable |
|||
|
#5
BUSHING EXC-NUMBFRPLATECARRIER
58303002045
|
|||
|
Unavailable |
|||
|
#8
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M6x12 TX30
0015060123
Superseded by 0025060126
|
$3.62 | ||
|
Unavailable |
|||
|
#11
SPACER ROLLER 10,3X20X22
58003012000
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
PVC CAP D=22MM
71001012100
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK SUPPORT '93
58307015000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
flanged hex nut DIN 6927 M10 WS15
49009082000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
SELF LOCKING NUT M8
54310086000
|
|||
|
Unavailable |
|||
|
#20
ENGINE SUPPORT L/S STEEL '90
58003055500
|
|||
|
Unavailable |
|||
|
#21
ENGINE SUPPORT R/S STEEL '90
58003155500
|
|||
|
Unavailable |
|||
|
#23
HH SCREW DIN0931-M10X120
0931101203
|
|||
|
Unavailable |
|||
|
#24
WASHER 10,5 X 21 X 3
31004001100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH SCREW DIN 931 M8X80 10.9
0931080803
Superseded by 0931080805
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH SCREW DIN0931-M10X60
0931100603
|
|||
|
Unavailable |
|||
|
#31
SELF LOCKING NUT DIN0985-M10
0985100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#32
AH SCREW DIN0912-M10X160
0912101603
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#34
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
PVC-HOSE 7X10 PER METER
55007016001
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#37
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST BRACKET L/S SILVER'99
5830303800090
|
|||
|
Unavailable |
|||
|
#40
FOOTREST L/S SILVER '99
5830304000090
|
$45.29 | ||
|
Available to order. Add to View Price |
|||
|
#41
FOOT REST R/S SILVER '98
5460314000090
|
$41.67 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S '93
58303041000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT FOR FOOTREST
58303044000
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#46
washer DIN 125 A 10.5
0125100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#53
CHAIN ROLL D=30MM 125-380 '99
52303053000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#54
CHAIN ROLL D=35MM 125-380 '99
52303053100
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#55
BUSHING 8.2 X 12 X 6
74003021000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#56
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#61
PLASTIC CAP SFL10
54403135000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRAKE LEVER STOP '93
58303063000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#64
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#68
LOCK WASHER 8MM
36003014000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#70
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#71
HH COLLAR SCREW M8X40 TX40
0015080403
Superseded by 0025080406
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#75
HH collar screw M8x25
0015080253
Superseded by 0025080256
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#76
SPROCKET SCREW-AH M 8X26
54510052000
|
|||
|
Unavailable |
|||
|
#78
TOOTHLOCK WASHER DIN6797-J 8,4
0797080003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#79
washer DIN 125 A -8.4
0125080003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
