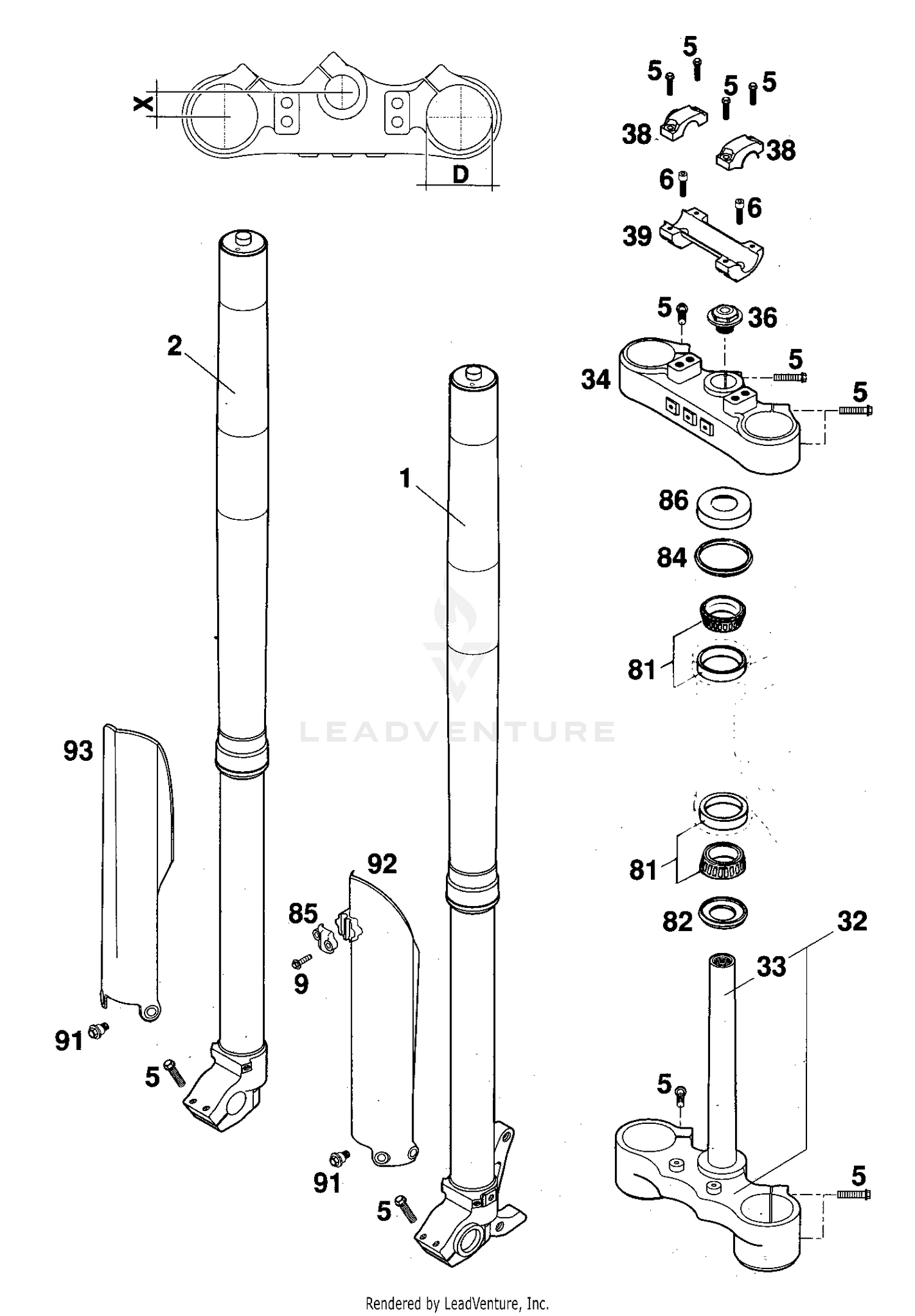

Front Fork Wp Usd 43 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK LEG L/S WP 400/620 SC '99
0518T781LS
|
|||
|
Unavailable |
|||
|
#2
FORK LEG R/S WP 400/620 SC '99
0518T781RS
|
|||
|
Unavailable |
|||
|
#5
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH SCREW DIN6912-M10X25
0912100258
|
|||
|
Unavailable |
|||
|
#9
SCREW FOR PLASTIC K60X20 SW6
0017060203
Superseded by 0017060205
|
$2.41 | ||
|
Unavailable |
|||
|
#32
BOT.TRIPLE CLAMP X=20MM/D=57MM
59001132020
|
|||
|
Unavailable |
|||
|
#33
FORK TUBE L=244
50101033100
Superseded by 54801133000
|
$100.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP TRIPLE CLAMP X=20MM/D=57MM
59001034020
|
|||
|
Unavailable |
|||
|
#36
STEER.HEAD SCREW M20X1,5 WS=27
50301036000
|
$12.51 | ||
|
Unavailable |
|||
|
#38
HANDLEBAR CLAMP 28MM SC'99
59001038100
|
|||
|
Unavailable |
|||
|
#39
Handlebar mount 28ámm 07
59001039100
Superseded by 5900103930001
|
$173.24 | ||
|
Unavailable |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081000
Superseded by 54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#82
O-RING SUPPORT W. SEALING LIP
54601084100
Superseded by 77701084000
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#84
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#85
CLAMP F. BRAKE HOSE SC '99
59001085000
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#86
STEERING HEAD COVER
54201086000
|
$10.00 | ||
|
Unavailable |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#92
FORK PROTEC. L/S SILVER SC '99
59001092000
|
|||
|
Unavailable |
|||
|
#93
FORK PROTEC. R/S SILVER SC '99
59001093000
|
|||
|
Unavailable |
|||
