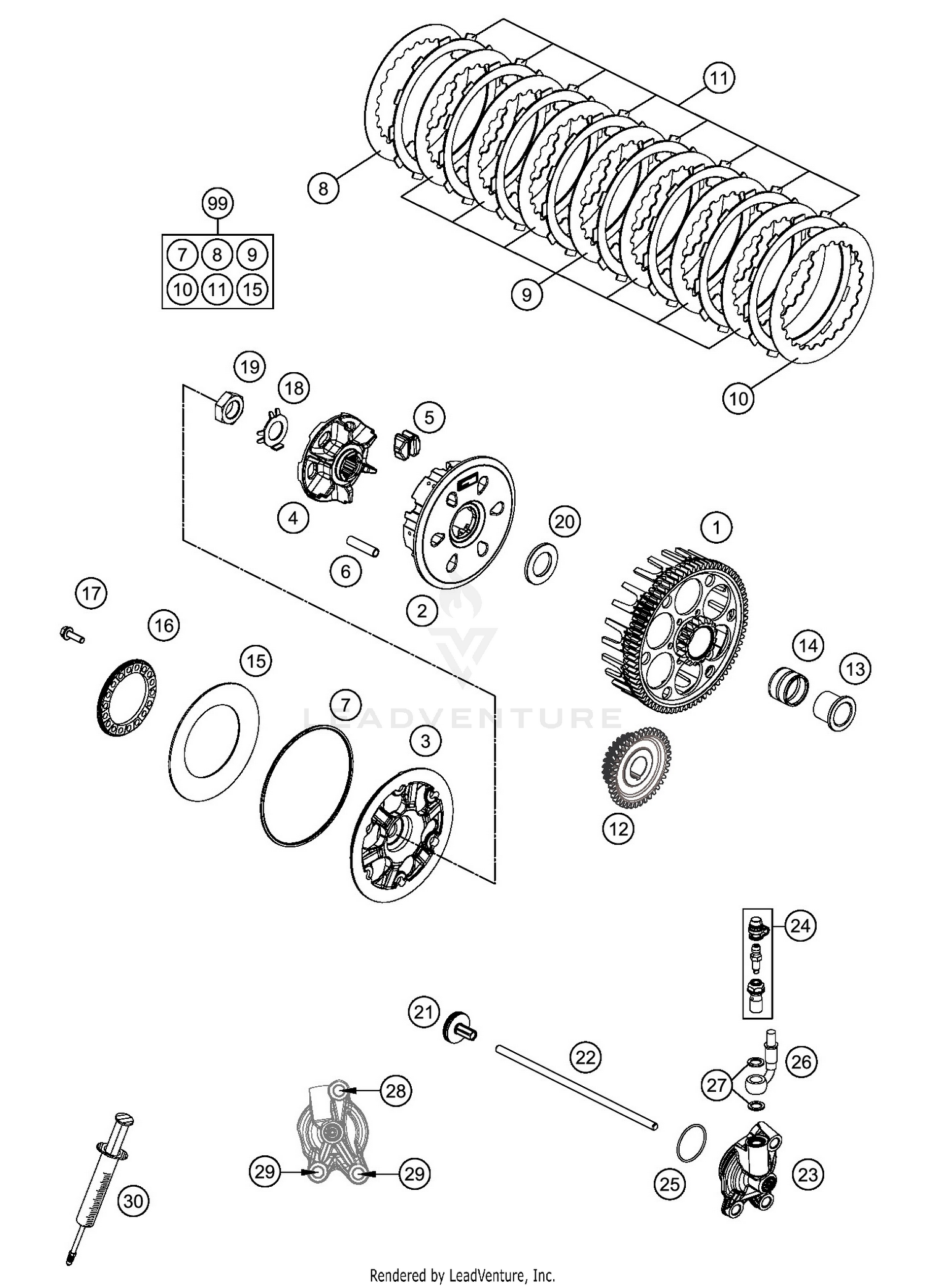

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH BASKET EXC
79232201073
|
$316.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
Set inner clutch hub
78132002300
Superseded by 78132002244
|
$158.50 | ||
|
Unavailable |
|||
|
#3
Clutch pressure plate
79432003000
Superseded by 79432003100
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
Set inner clutch hub
78132002111
Superseded by 78132002244
|
$158.50 | ||
|
Unavailable |
|||
|
#5
DAMPING RUBBER
78132025100
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
Sleeve, 7.95x38
77232004000
Superseded by 77232104000
|
$3.62 | ||
|
Unavailable |
|||
|
#7
WASHER 112X118X1.5
78132013000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
INTERMEDIATE DISC 1MM 2002
59032010100
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
INTERMEDIATE DISC 1,4MM 2002
59032010200
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#10
INTERMEDIATE DISC 1MM
78932010000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
LINING DISC 1,95 MM
54832011100
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
PRIMARY GEAR
55432024026
|
$165.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
inner ring
77232015000
Superseded by 77232015100
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
|
$28.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BELLEVILLE SPRING 71X115X1,5 I
78132005000
|
$37.61 | ||
|
Available to order. Add to View Price |
|||
|
#16
Spring retainer
78132006100
Superseded by 78132006200
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M5x16 TX30
0025050166
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
locking plate
78132018000
Superseded by 78132018100
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER 21,8 X 37 X 5,1
77232009000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
PRESSURE PIECE CPL. 08
78032057044
|
$30.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
PUSH ROD
79232054000
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#23
OUTPUT CYLINDER CPL.
79232061044
|
$220.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
BLEEDER SCREW CPL.
79032064000
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING 30,00X1,50 NBR 70
0770300015
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH PIPE
79232063000
|
$132.21 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL RING CU DIN7603- 8X12X1
0603082121
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
HH collar screw M6x25 TX30
0025060256
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
HH collar screw M6x16 TX30
0025060166
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#99
CLUTCH KIT 250/300 13-15
54832011110
|
$269.16 | ||
|
Available to order. Add to View Price |
|||
