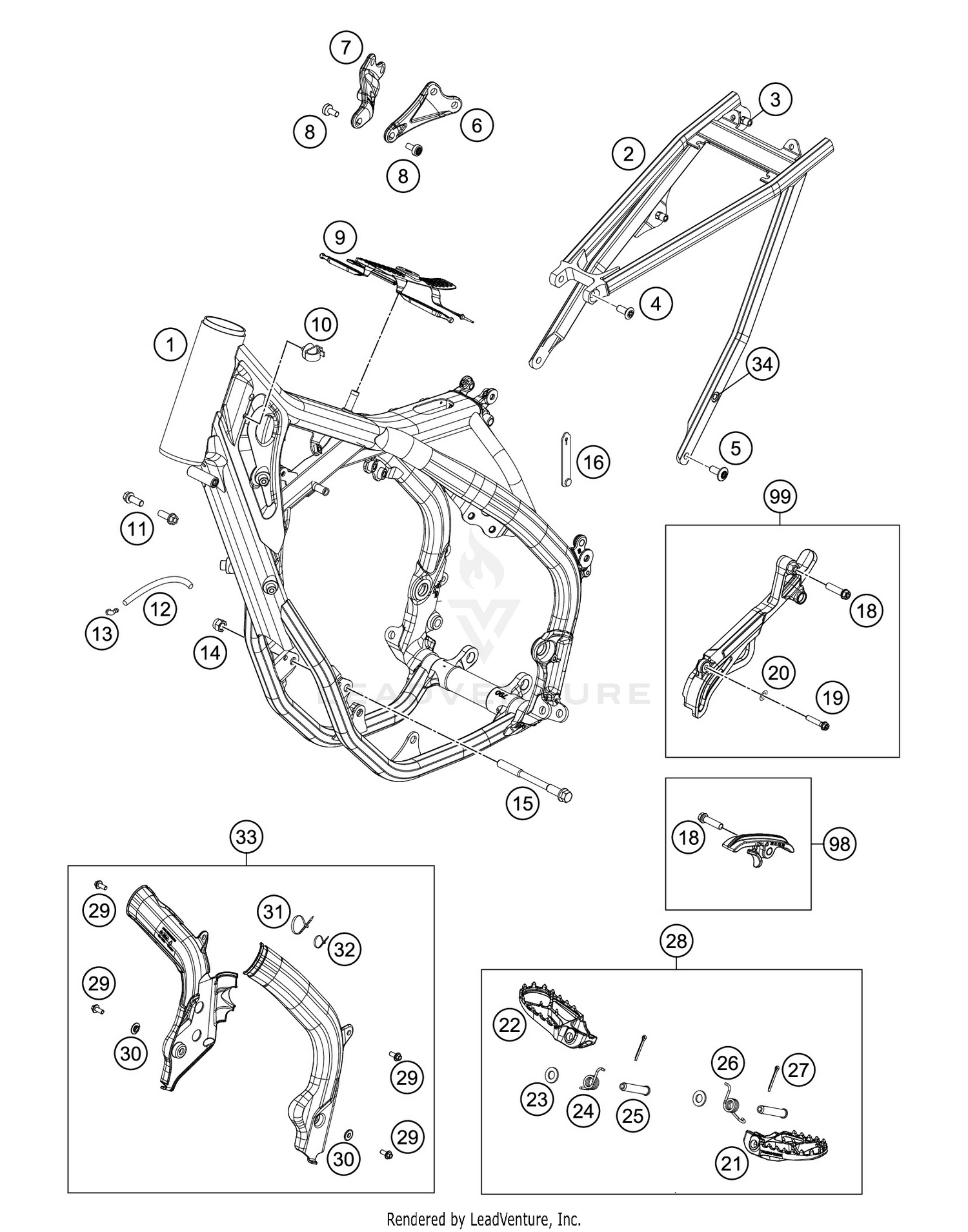

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
"Frame ""794R4"" electr. orange"
79403001500EB
|
$2,058.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
Subframe 2018
79003002000
Superseded by 79003002100
|
$315.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
BLIND RIVET NUT EM6-60LF/HX
77303139000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPECIAL SCREW M8X18 TORX45 SS
79003003000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
ENGINE BRACE LEFT
79403013100
|
$57.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENGINE BRACE RIGHT
79403014100
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHCS M8x20 TX45
0035080206S
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
TANK REST RUBBER
79007012000
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE SUPPORT KHS NR.150-47610
58111076000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH collar screw M8x16 TX40 SL
0025080166S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
PVC-HOSE 7X10 PER METER
55007016001
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
ENGINEBRAC.SCREW M10X123 WS=13
59003013000
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH collar screw M6x35 TX30
0025060356
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER DIN0125-A 6,4
0125060003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOTREST L/S 2016
79003040000
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
FOOTREST R/S 2016
79003041000
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#23
washer DIN 125 A 10.5
0125100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#24
FOOTREST SPRING R/S 2016
79003044000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
FOOTREST SPRING L/S 2016
79003045000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
FOOT PEGS SET CPL. 2016
79003040033
|
$119.01 | ||
|
Available to order. Add to View Price |
|||
|
#29
HH COLLAR SCREW M 5X12 WS=6
0014050123
|
$2.41 | ||
|
Unavailable |
|||
|
#30
BUSH F. FRAME PROTECTION 03
54803092060
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#31
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
FRAME PROTECTION SET ORANGE
79003094000EB
|
$43.00 | ||
|
Unavailable |
|||
|
#34
BLIND RIVET NUT M6 KNURLED
79003002080
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#98
CHAIN SLIDING KIT BELOW CPL.16
79003053010
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
|
#99
SPROCKET COVER KIT
79403096010
|
$29.69 | ||
|
Available to order. Add to View Price |
|||
