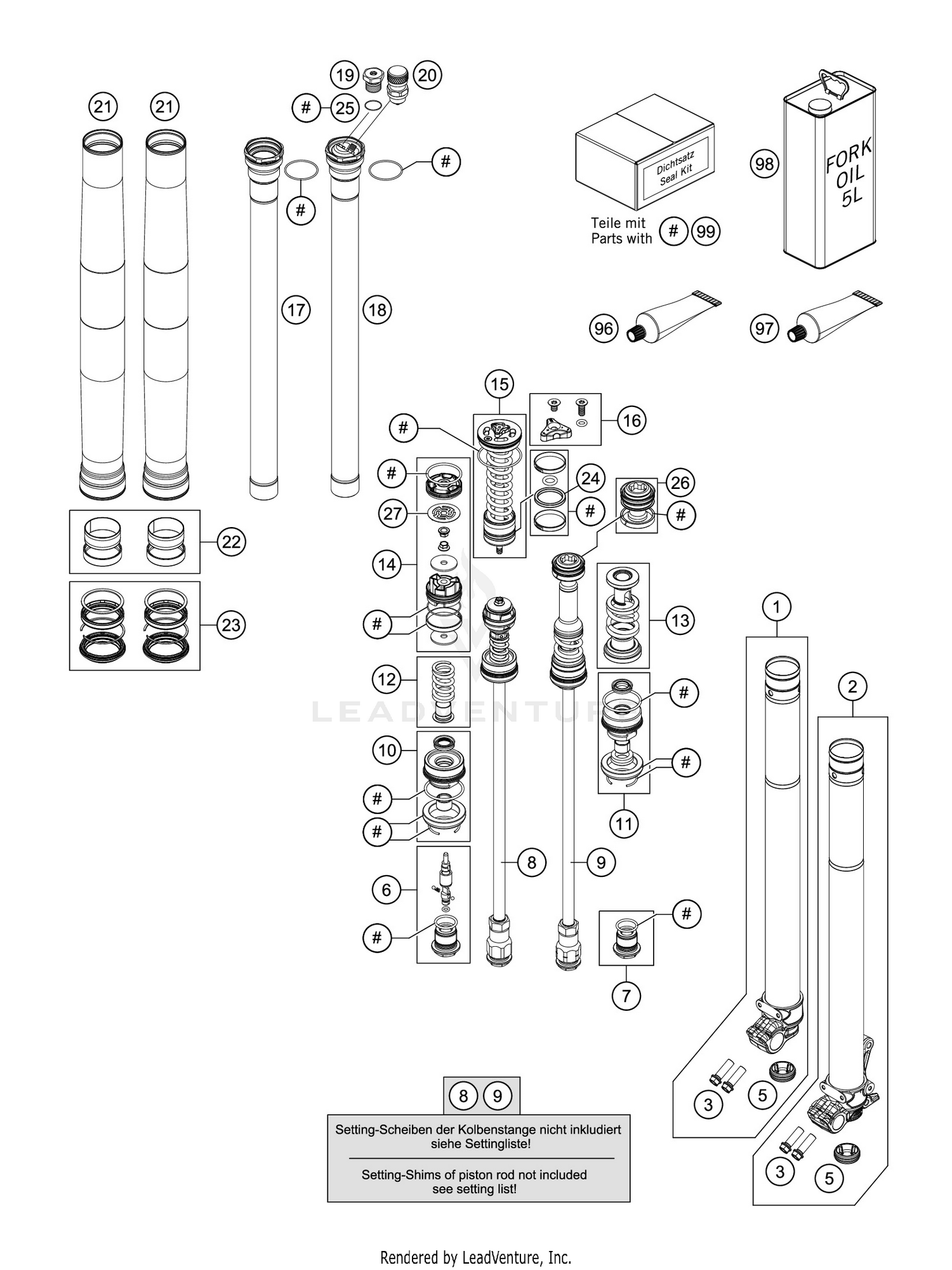

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK LEG R/S + TUBE CPL.
48601408S2
|
$571.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK LEG L/S + TUBE CPL.
48601407S2
|
$571.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rubber cap 26,4x11
48600692
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
Adjustment screw slot M20x1 cpl.
48601484S
|
$49.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M20x1x18 cpl.
48601533S
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
Piston rod D12 M9X1 L385 cpl.
48601574S2
|
$453.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON ROD L/S CPL. M12X1
48601501S
|
$498.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw sleeve M35,5 x 0.8 cpl.
48601462S1
Superseded by 48601462S2
|
$81.61 | ||
|
Unavailable |
|||
|
#11
Screw sleeve M35,5x0,8 cpl.
48601452S1
Superseded by 48602138S2
|
$56.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spring (13,9) 37-32 rebound cpl.
48600578S
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
Spring (22) 60-30 rebound cpl.
48601820S
|
$30.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
Piston set air fork D34 MY18
RP10015
|
$99.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
Compression cpl.
48601485S
|
$263.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
SMALL PARTS KIT SCREW CAP
R14062
Superseded by R14062T
|
$6.81 | ||
|
Unavailable |
|||
|
#17
SCREW CAP + TUBE CPL. R/S
48601454S1
|
$336.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW CAP + TUBE CPL. L/S
48601453S1
|
$417.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
ISA lock screw M8x1 l7 Alu
48601495
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE M8X1 INCL. SCREW CAP
48601494S
|
$62.36 | ||
|
Available to order. Add to View Price |
|||
|
#21
fork outer tube 49.13x577 dt54 db60
48601671
Superseded by 48602096
|
$302.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
Guide bushing set fork 48mm
R14047
Superseded by R14047T
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
Seal kit 48mm SKF black
R14046
Superseded by RP10048T
|
$78.53 | ||
|
Unavailable |
|||
|
#24
X-ring 26,57x3,53 FKM80
04100002
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-ring 6x1,5 NBR70
48600044
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
Piston 33,6x35,4 cpl.
48601628S
Superseded by 48602135S
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
Washer check valve 6x31x0,4
48601459
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#96
Fuchs grease IPR (250g)
T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#97
CENTOPLEX 2 EP - 45g MP-GREASE
00062010051
|
$21.71 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#99
Sealing kit
R14060
Superseded by R14060T
|
$90.63 | ||
|
Unavailable |
|||
