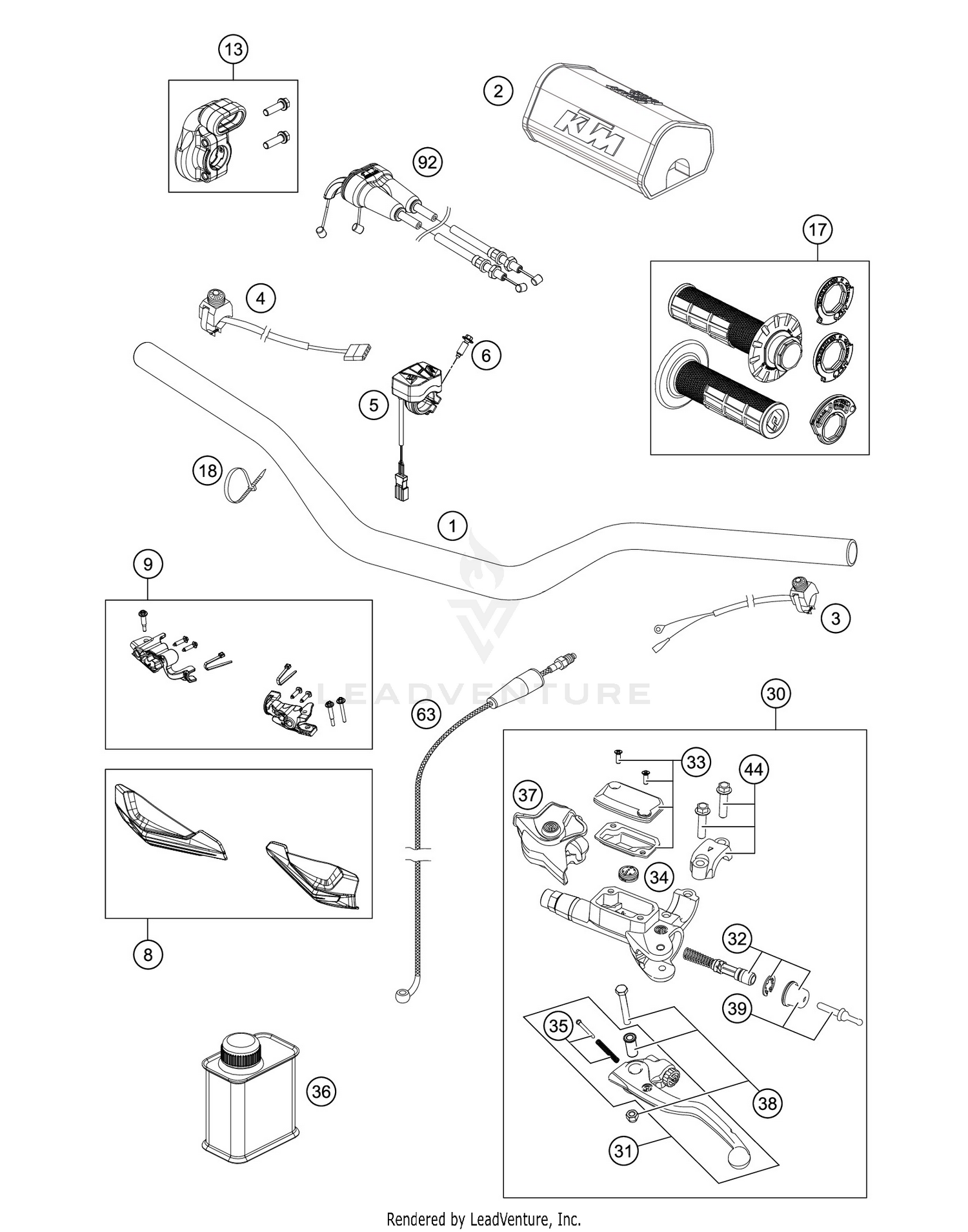

Handlebar, Controls Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR D=28MM
7900200100030
|
$178.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
Handlebar pad cmpl.
79002002000
Superseded by 79102002044
|
$41.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHORT CIRCUIT BUTTON 02
50311089200
|
$44.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
STARTER BUTTON GREY 13
78111074000
|
$50.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
Ignition curve switch cmpl.
79039074000
Superseded by 79039974144
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
Handguard
79602182044EB
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Mounting kit, handguard, right and left
79602084044
Superseded by 79602084144
|
$39.99 | ||
|
Unavailable |
|||
|
#13
Throttle control casing cpl.
79002010025
Superseded by 79002010125
|
$34.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
Grip set
79002021100
Superseded by 79002021200
|
$25.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
MASTER CYLINDER CPL.
79202030044
|
$315.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLUTCH LEVER CPL. BREMBO 06
54802031000
|
$53.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
REP. KIT PISTON 9MM
79202032044
|
$71.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER HYD. CLUTCH CPL. 2014
5480200310030
|
$41.79 | ||
|
Available to order. Add to View Price |
|||
|
#34
VALVE
54802051000
|
$22.54 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT KPL.
54802052000
|
$34.53 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#37
PROTECTION CAP 06
54802037000
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#38
LEVER SCREW CPL. 06
54802038100
|
$46.85 | ||
|
Available to order. Add to View Price |
|||
|
#39
PUSH ROD CPL.
54802046000
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP CPL. 06
54802005100
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#63
CLUTCH PIPE
79232063000
|
$132.21 | ||
|
Available to order. Add to View Price |
|||
|
#92
THROTTLE CABLE CPL. 4STROKE
79002091000
|
$140.57 | ||
|
Available to order. Add to View Price |
|||
