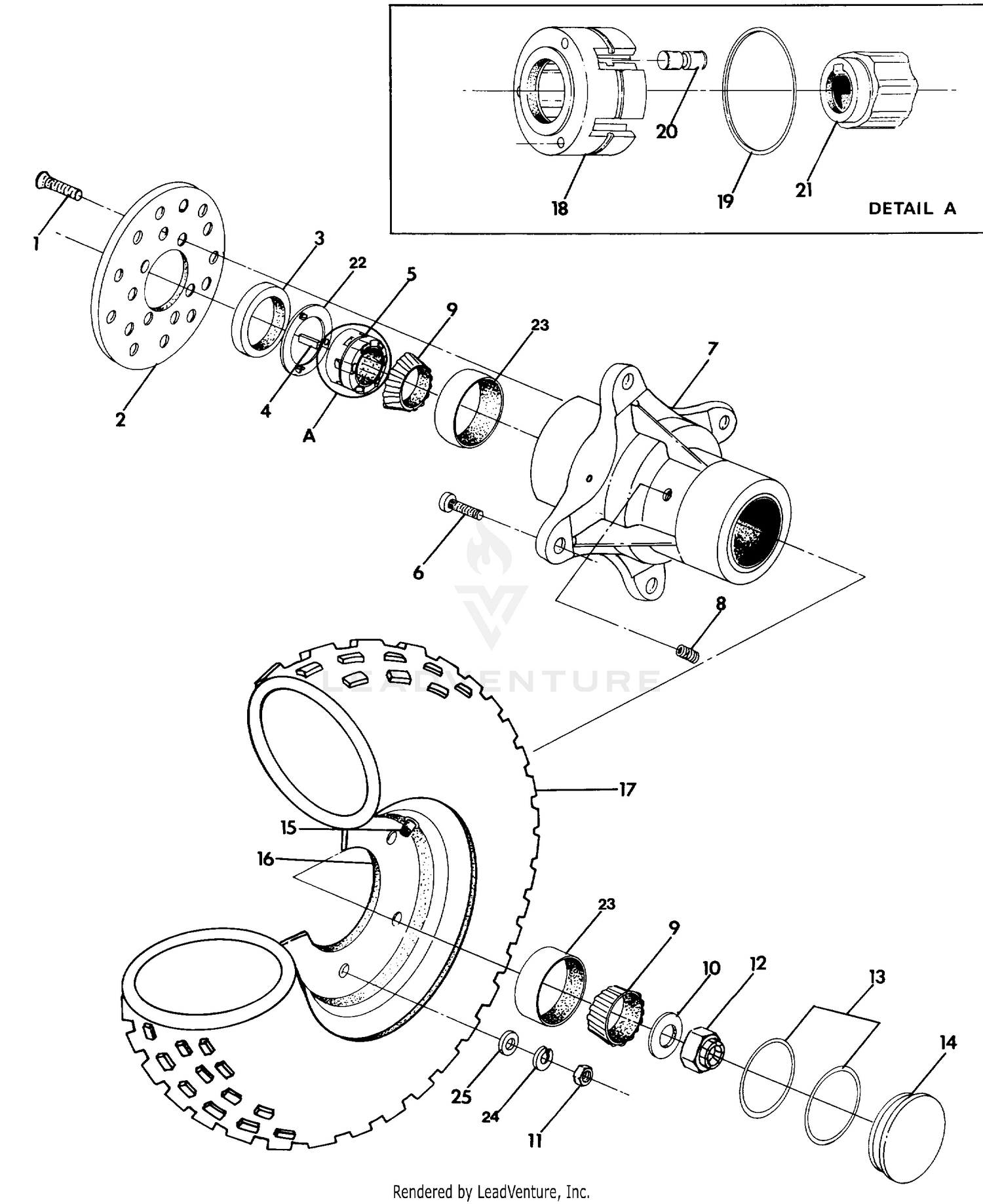

Front Wheel Assembly 4x4 - Updated 4/89 (4917731773021a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW(10)
7515314
|
|||
|
Unavailable |
|||
|
#2
DISC BRAKE,FRONT
5211084
|
|||
|
Unavailable |
|||
|
#3
SEAL, FR. HUB
3610019
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY
7721205
|
|||
|
Unavailable |
|||
|
#5
CLUTCH ASM,FR.HUB
1520143
|
|||
|
Unavailable |
|||
|
#6
STUD,WHEEL,5/16-18(10)
7515330
|
|||
|
Unavailable |
|||
|
#7
HUB, WHEEL Substituted by 1520171
5130682
|
|||
|
Unavailable |
|||
|
#8
PLUG,PIPE
7052045
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRG,TAPER.ROLL.CONE
3554506
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER(10)
5211101
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT HEX(10)
7542301
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KIT, NUT
7543202
Superseded by 2203005
|
$46.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING
5410470
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, HUB
5130684
Superseded by 5431368
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE-RIM
1525017
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIM,FRONT,PRIMED Substituted by 1520118
1520127
|
|||
|
Unavailable |
|||
|
#17
TIRE,FR(22X8-10)
5410480
|
|||
|
Unavailable |
|||
|
#18
CAGE, ROLL
3250023
Superseded by 3250028
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, GARTER
3250022
|
|||
|
Unavailable |
|||
|
#20
ROLLS
3250010
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAM
3250024
|
|||
|
Unavailable |
|||
|
#22
PLATE, ARMATURE
5211148
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRG,TAPER,ROLL CUP
3554507
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DESC NOT_AVAILABLE
7761206
|
|||
|
Unavailable |
|||
|
#25
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
