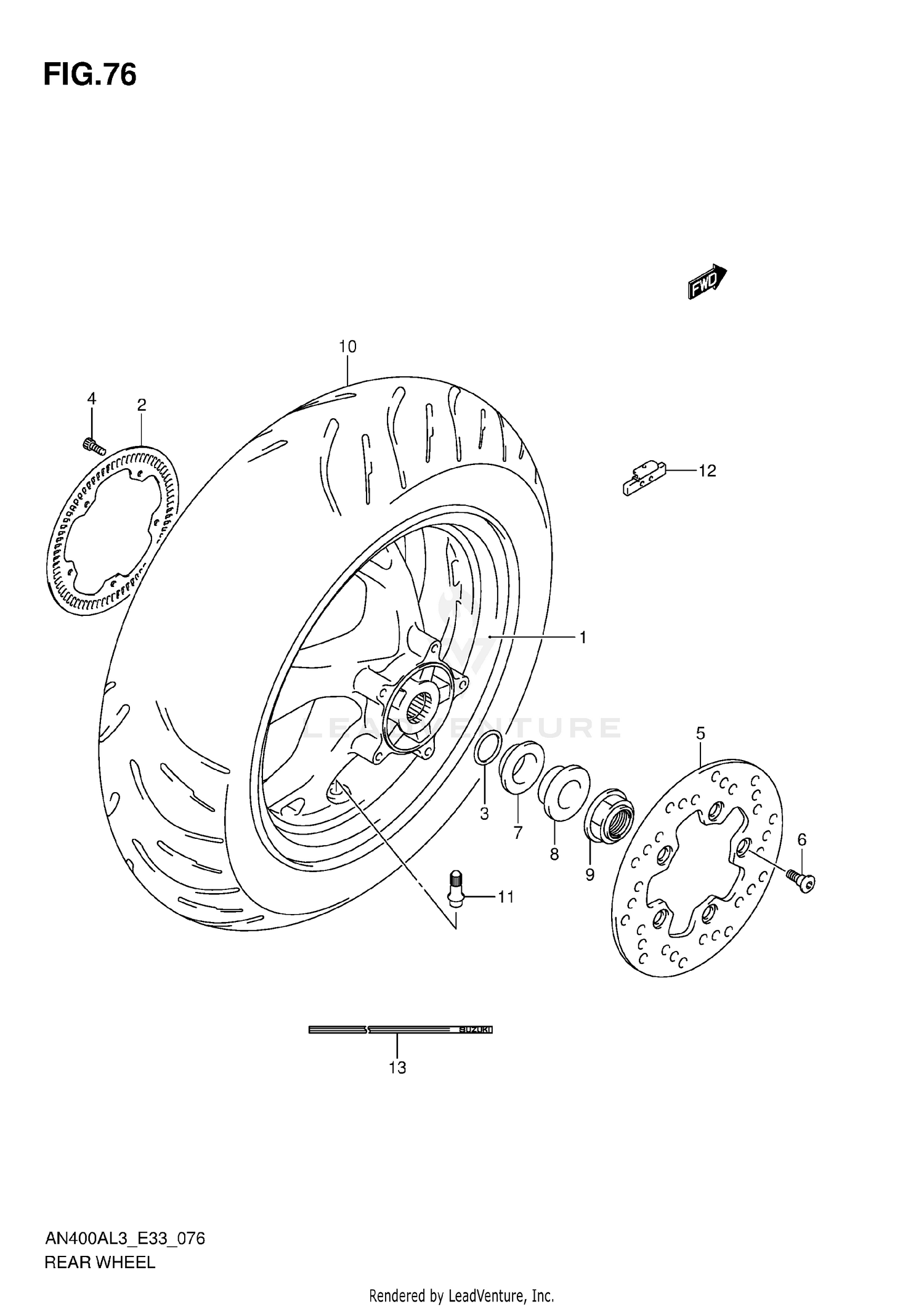

Rear Wheel (an400al3 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR (13M/CXMT4.00) (BLACK)
64110-05H10-019
|
$1,141.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING,SPEED SENSOR RR (72T)
64162-05H00
|
$33.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
.O RING (D:3,ID:24.5)
09280-24001
Superseded by 09280-24003
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
07130-0512A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISC,REAR BRAKE
69211-05H00
|
$193.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X21)
09106-08160
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER,REAR AXLE INNER
64741-05H00
|
$34.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER,REAR AXLE OUTER
64751-05H00
|
$34.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-20014
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE, REAR (150/70-13M/C 64S)
65110-05H00
|
$290.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE ASSY,WHEEL RIM (TR412)
43130-24A00
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
BALANCER, WHEEL NO.1
43222-73H20
|
$3.71 | ||
|
Unavailable |
|||
|
#12
BALANCER, WHEEL NO.2
43224-73H20
|
$4.13 | ||
|
Unavailable |
|||
|
#12
BALANCER, WHEEL NO.3
43226-73H20
|
$5.16 | ||
|
Unavailable |
|||
|
#13
TAPE, REAR WHEEL (RED/BLACK)
68252-05H00-A82
|
$61.91 | ||
|
Available to order. Add to View Price |
|||
