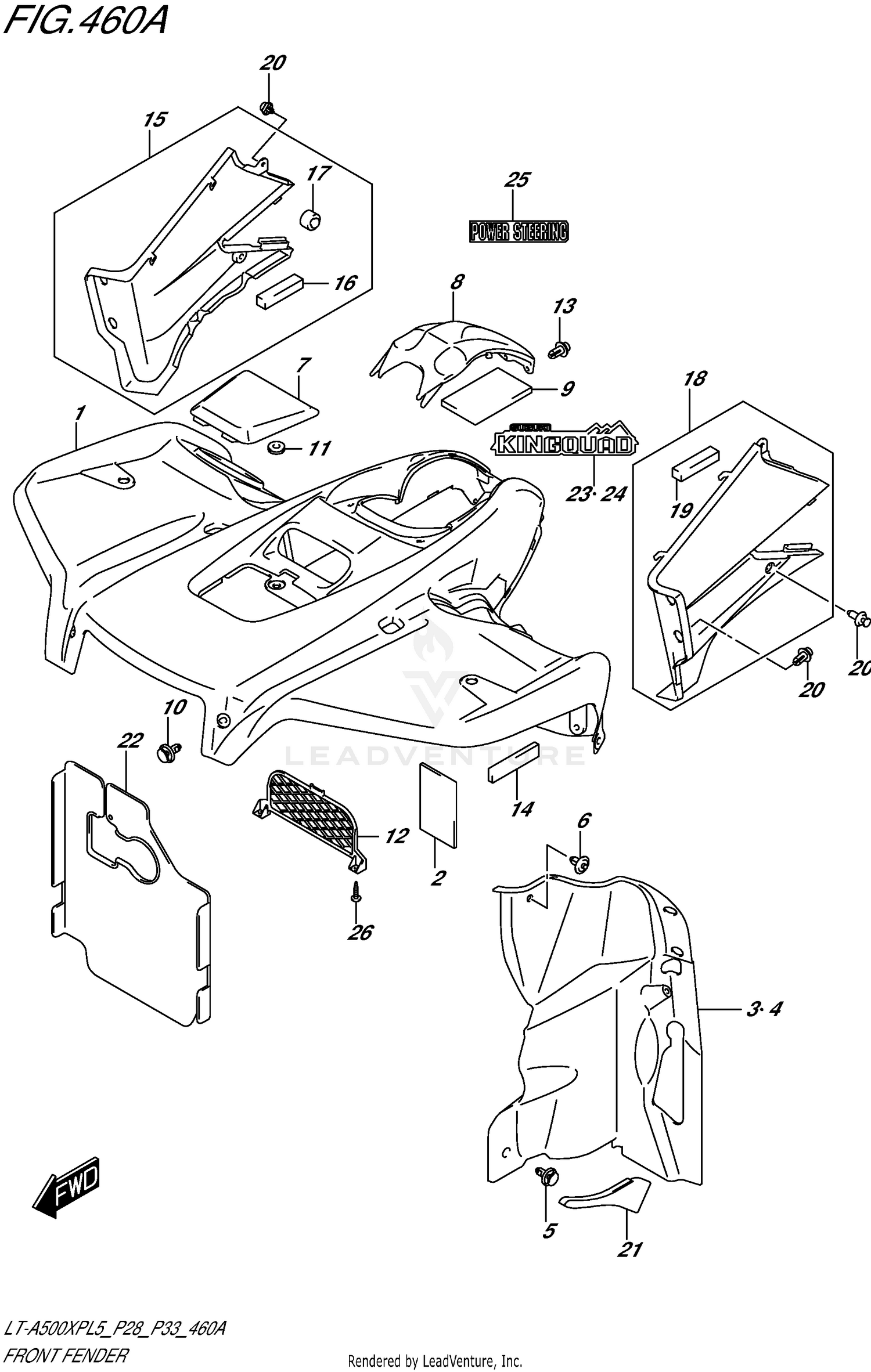

Front Fender (lt-a500xpl5 P28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (GREEN)
53111-31G03-YLG
|
$287.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (BLACK)
53111-31G03-YLZ
|
$280.98 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (RED)
53111-31G03-YT9
Superseded by 53111-31G13-YT9
|
$372.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FRONT FENDER NO.2
53132-31GA0
Superseded by 53132-31GB0
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUDFLAP, INNER RH
53411-31G02
|
$33.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUD FLAP,FENDER
53421-31G01
Superseded by 53421-31G03
|
$25.92 | ||
|
Unavailable |
|||
|
#5
CLIP
09409-08335
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP (D:2.4,ID:23.7)
09409-07333
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
LID,FENDER FRONT (GREEN)
53341-31G03-YLG
Superseded by 53341-31G06-YLG
|
$11.20 | ||
|
Unavailable |
|||
|
#7
LID,FENDER FRON
53341-31G03-YLZ
Superseded by 53341-31G05-YLZ
|
$47.77 | ||
|
Unavailable |
|||
|
#7
LID,FENDER FRONT (RED)
53341-31G03-YT9
Superseded by 53341-31G06-YT9
|
$11.55 | ||
|
Unavailable |
|||
|
#8
FENDER,CENTER
53119-31G02-YLG
Superseded by 53119-31G04-YLG
|
$23.72 | ||
|
Unavailable |
|||
|
#8
FENDER,CENTER
53119-31G02-YLZ
Superseded by 53119-31G05-YLZ
|
$22.28 | ||
|
Unavailable |
|||
|
#8
FENDER,CENTER
53119-31G02-YT9
Superseded by 53119-31G05-YT9
|
$24.22 | ||
|
Unavailable |
|||
|
#9
CUSHION, FRONT FENDER NO.1
53131-31GA0
Superseded by 53131-31GB0
|
$16.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
09409-08335
|
$2.43 | ||
|
Unavailable |
|||
|
#11
CUSHION
09320-08018
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER,INNER
53212-31G01
Superseded by 53212-31G03
|
$14.38 | ||
|
Unavailable |
|||
|
#13
CLIP
09409-08335
|
$2.43 | ||
|
Unavailable |
|||
|
#14
CUSHION, COVER SIDE
53113-31H00
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,SIDE,R
53110-31G10-291
Superseded by 53112-31G04
|
$46.63 | ||
|
Unavailable |
|||
|
#16
.CUSHION, FR FENDER SIDE
53146-05G00
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09321-10019
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,SIDE L
53110-31G20-291
Superseded by 53122-31G03
|
$107.12 | ||
|
Unavailable |
|||
|
#19
.CUSHION, FR FENDER SIDE
53146-05G00
|
$6.87 | ||
|
Unavailable |
|||
|
#20
CLIP
09409-08335
|
$2.43 | ||
|
Unavailable |
|||
|
#21
MUDGUARD, SIDE RH
53116-31G00
Superseded by 53116-31G01
|
$14.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, CENTER
53117-31G00
Superseded by 53117-31G01
|
$28.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
EMBLEM,FR FENDE
68151-31GC0-EFG
Superseded by 68151-31GC1-EFG
|
$45.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
EMBLEM,LH
68152-31GC0-EFG
Superseded by 68152-31GC1-EFG
|
$45.12 | ||
|
Available to order. Add to View Price |
|||
|
#25
EMBLEM,"POWER-S
68151-31GD0-CT5
Superseded by 68151-31GD1-CT5
|
$19.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
03541-0516A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
