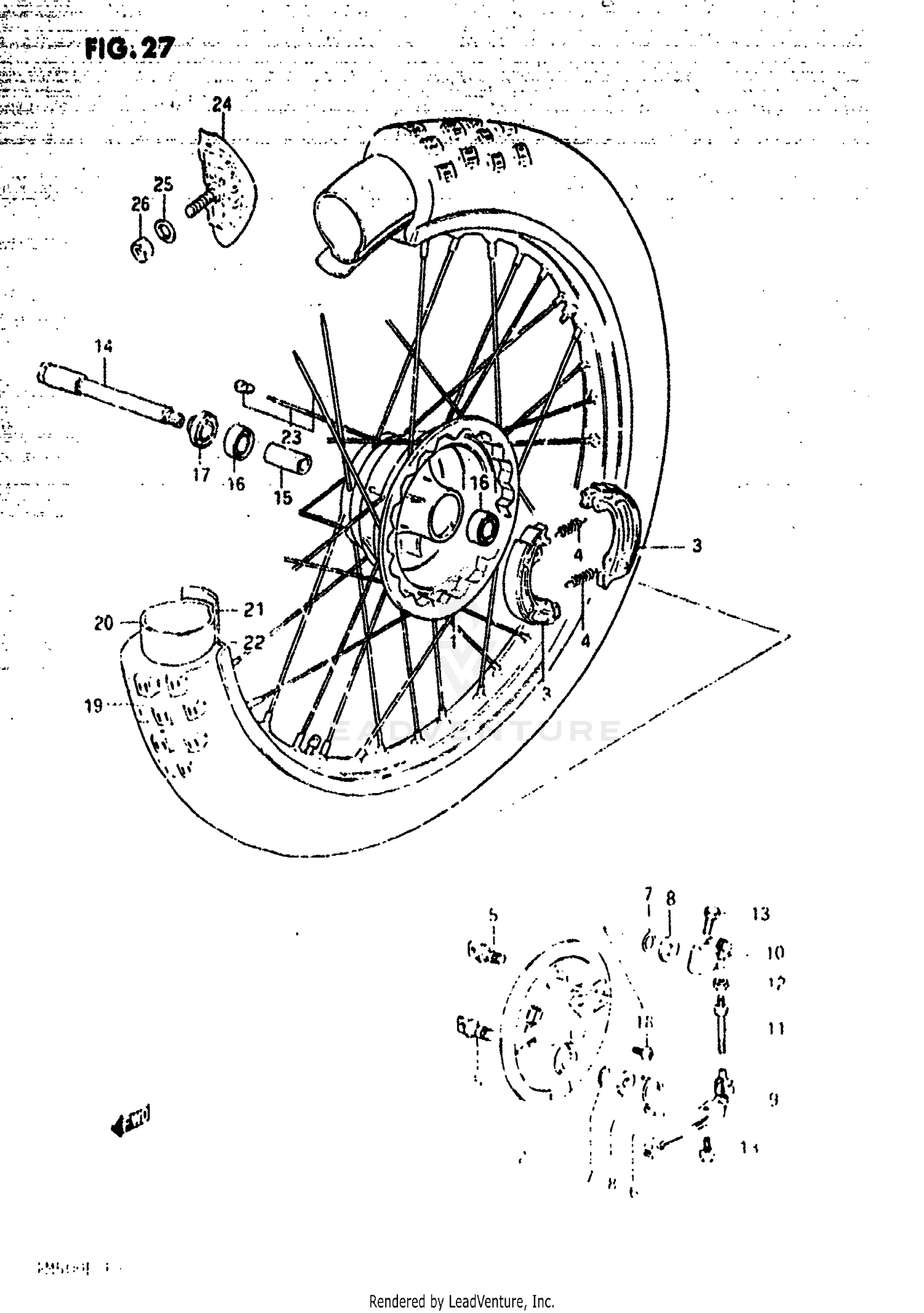

Front Wheel (model E) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54110-14121
|
$156.01 | ||
|
Unavailable |
|||
|
#2
PANEL, FRONT HUB
54210-14500
|
$108.04 | ||
|
Unavailable |
|||
|
#3
SHOE SET, BRAKE
54410-14300
Superseded by 54400-14840
|
$101.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
09443-09017
|
$3.82 | ||
|
Unavailable |
|||
|
#5
CAM, BRAKE
54441-14310
|
$11.61 | ||
|
Unavailable |
|||
|
#6
SPRING
09448-32014
|
$3.18 | ||
|
Unavailable |
|||
|
#7
DUST SEAL
09280-14008
|
$0.60 | ||
|
Unavailable |
|||
|
#8
WASHER (14.5X22X1)
09160-14003
Superseded by 09160-14054
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER ASSY, BRAKE CAM, NO. 1
54400-14500
|
$22.33 | ||
|
Unavailable |
|||
|
#10
LEVER ASSY, BRAKE CAM, NO.2
54500-14300
|
$21.62 | ||
|
Unavailable |
|||
|
#11
ROD, BRAKE CAM
54471-14300
|
$9.35 | ||
|
Unavailable |
|||
|
#12
.NUT
08310-22068
Superseded by 08310-00067
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-06258
Superseded by 01500-06257
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, FRONT
54711-14500
|
$61.10 | ||
|
Unavailable |
|||
|
#15
SPACER
54730-14100
|
$19.71 | ||
|
Unavailable |
|||
|
#16
BEARING (15X35X11)
09262-15011
Superseded by 09262-15024
|
$29.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, RH
54740-14200
|
$6.32 | ||
|
Unavailable |
|||
|
#18
SCREW
02112-06108
Superseded by 02112-06107
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
TIRE, FRONT (100/80-21)
55100-14300
|
$89.74 | ||
|
Unavailable |
|||
|
#20
TIRE, FRONT
55200-14600
Superseded by 55200-16511
|
$43.21 | ||
|
Unavailable |
|||
|
#21
PROTECTOR, INNER TUBE
55261-16510
Superseded by 55261-14540
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
RIM, WHEEL (1.60-21)
55311-14500
|
$233.64 | ||
|
Unavailable |
|||
|
#23
SPOKE ASSY
55320-14111
|
$39.23 | ||
|
Unavailable |
|||
|
#24
STOPPER, LEAD
65270-14300
|
$52.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
08322-11088
Superseded by 08322-01087
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08310-22088
Superseded by 08310-00087
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
