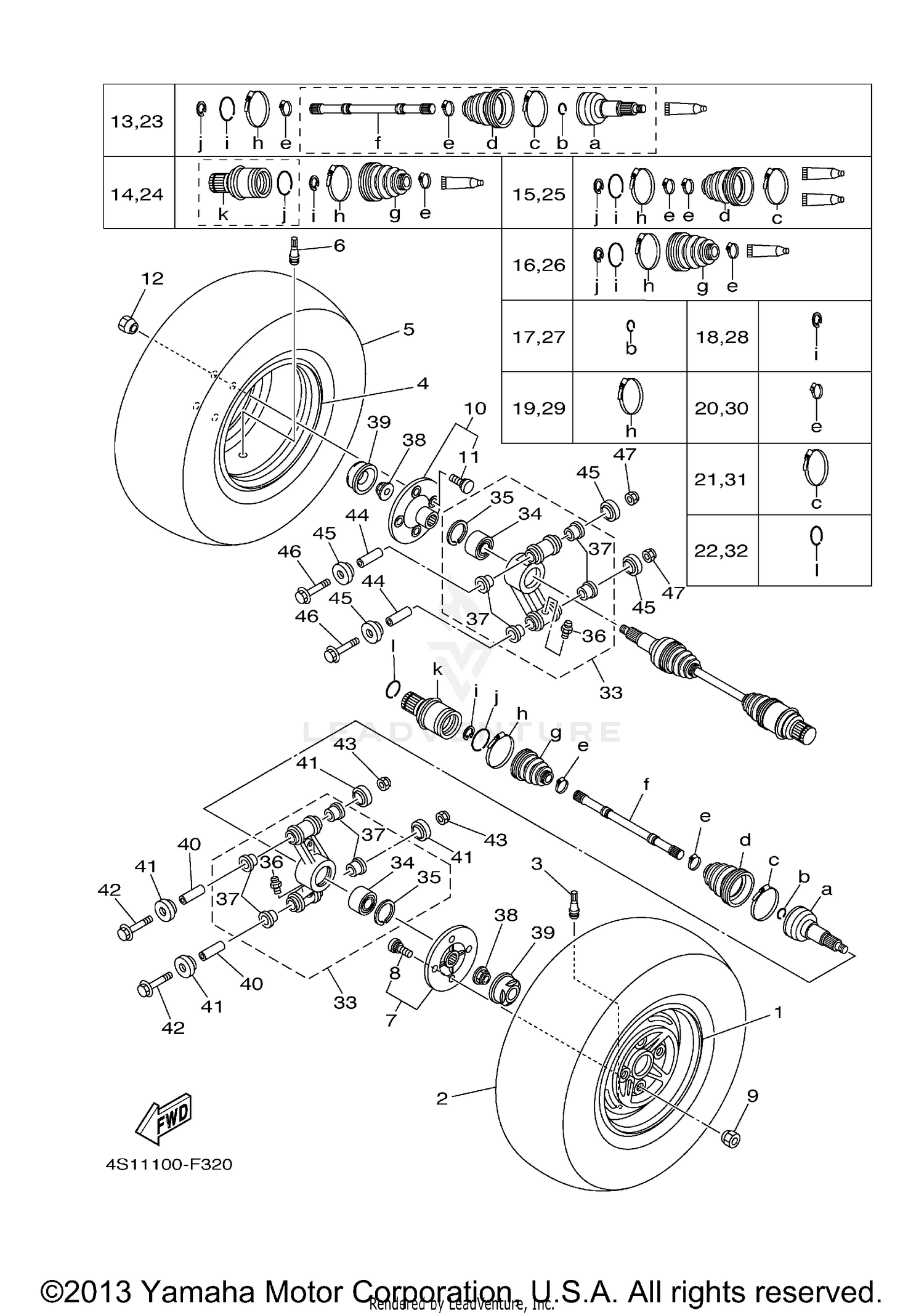

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
1D9-F5390-10-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT-25X8-12 ITP MUDLITE)
94110-12806-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00810-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR WHEEL COMP.
1D9-F5390-10-00
|
$208.99 | ||
|
Unavailable |
|||
|
#5
TIRE (AT-25X8-12 ITP MUDLITE)
94110-12806-00
|
$182.99 | ||
|
Unavailable |
|||
|
#6
VALVE, RIM (TR413)
93900-00810-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
HUB SUB-ASSY
1D9-F532E-00-00
Superseded by 1D9-F532E-01-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-10540-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HUB SUB-ASSY
1D9-F532E-00-00
Superseded by 1D9-F532E-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#11
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
NUT
90179-10540-00
|
$5.49 | ||
|
Unavailable |
|||
|
#13
BALL JOINT SET
4S1-2530U-00-00
|
$455.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DOUBLE OFF SET JOINT
4S1-2530V-00-00
|
$322.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT SET (BALL JOINT)
4S1-2530X-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT SET(DOUBLE OFFSET JOINT)
4S1-2530Y-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
4KB-2512H-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SNAP RING
2HR-2512J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT BAND(DOUBLE OFFSETJOINT)
4KB-2511H-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT BAND (SMALL)
3HN-2512G-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, SPRING
5KM-2536E-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL JOINT SET
4S1-2530T-00-00
|
$497.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DOUBLE OFF SET JOINT
4S1-2530V-00-00
|
$322.99 | ||
|
Unavailable |
|||
|
#25
BOOT SET (BALL JOINT)
4S1-2530X-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#26
BOOT SET(DOUBLE OFFSET JOINT)
4S1-2530Y-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
4KB-2512H-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
SNAP RING
2HR-2512J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
BOOT BAND(DOUBLE OFFSETJOINT)
4KB-2511H-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#30
BOOT BAND (SMALL)
3HN-2512G-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#31
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#32
CLIP, SPRING
5KM-2536E-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#33
REAR KNUCKLE ASSY.,2
1D9-F532F-01-00
|
$256.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING
93305-00602-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
99009-55500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NIPPLE, GREASE
93700-06009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
90179-20006-00
Superseded by 90179-20016-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CAP, WHEEL
2P5-F512A-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPACER
5KM-23448-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
COVER, THRUST 1
2NL-23517-00-00
Superseded by 3JN-23517-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
90105-10480-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SELF-LOCKING
90185-10844-00
Superseded by 90185-10012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPACER
5KM-23448-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#45
COVER, THRUST 1
2NL-23517-00-00
Superseded by 3JN-23517-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE
90105-10480-00
|
$7.49 | ||
|
Unavailable |
|||
|
#47
NUT, SELF-LOCKING
90185-10844-00
Superseded by 90185-10012-00
|
$8.49 | ||
|
Unavailable |
|||
