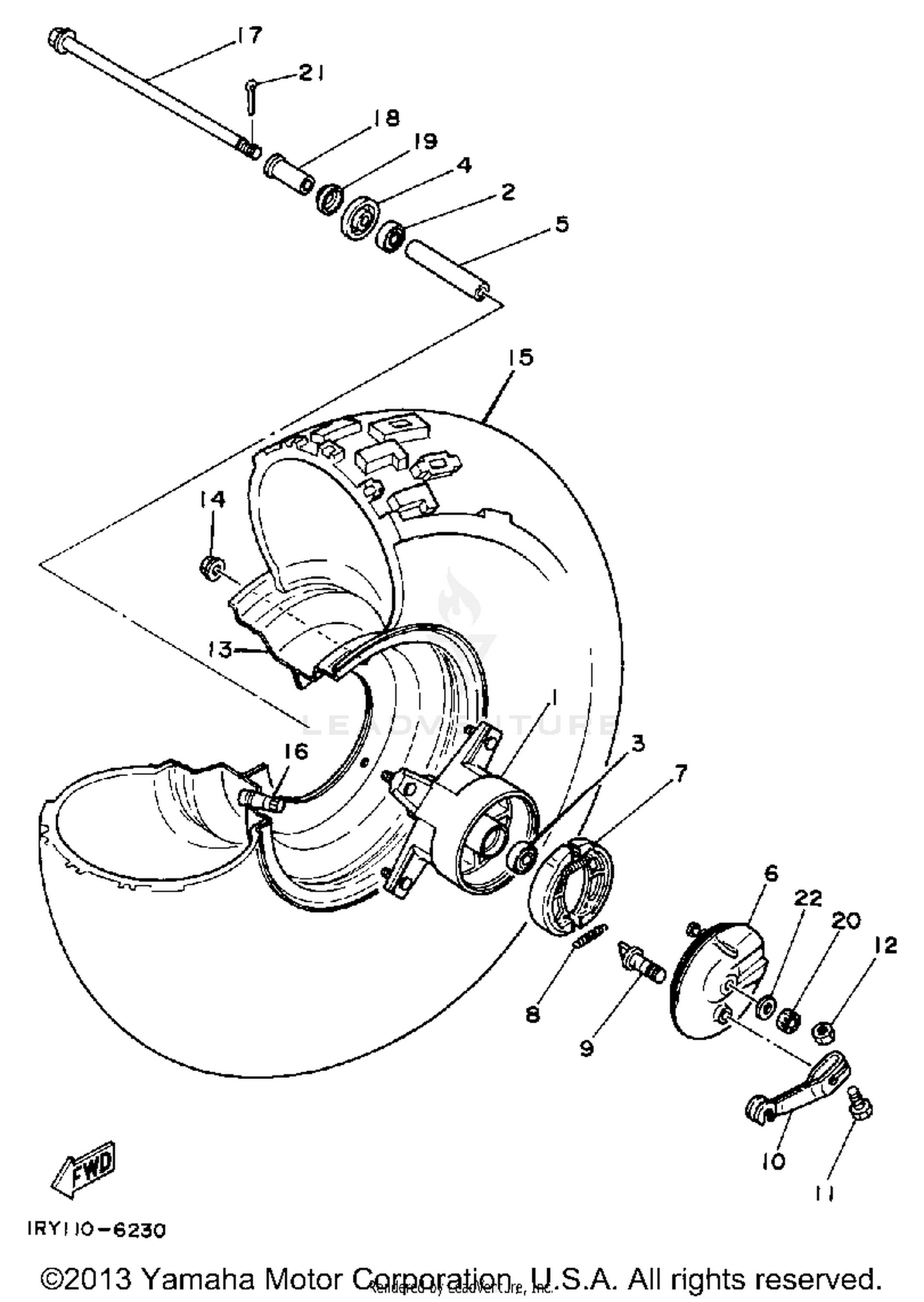

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1RY-25111-00-4R
|
$319.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00108-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-18013-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-123N0-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
PLATE, BRAKE SHOE
2J5-25121-00-4R
|
$33.99 | ||
|
Unavailable |
|||
|
#7
BRAKE SHOE KIT
5X2-W2535-00-00
Superseded by 3EC-W253A-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-14081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT
1YT-25351-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CAMSHAFT 1
451-25155-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WHEEL, FRONT
1RY-25180-00-4R
|
$149.99 | ||
|
Unavailable |
|||
|
#14
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
AT19X6-10KT646A DN (AT19X6-10 K
94106-106W2-00
|
$79.99 | ||
|
Unavailable |
|||
|
#16
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
AXLE, WHEEL
1RY-25181-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#18
COLLAR
90387-122N9-00
|
$13.49 | ||
|
Unavailable |
|||
|
#19
COVER, HUB DUST
462-25118-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#20
NUT, CASTLE
95301-12900-00
Superseded by 90171-12058-00
|
$2.90 | ||
|
Unavailable |
|||
|
#21
PIN. COTTER
91401-25030-00
Superseded by 91490-25030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
