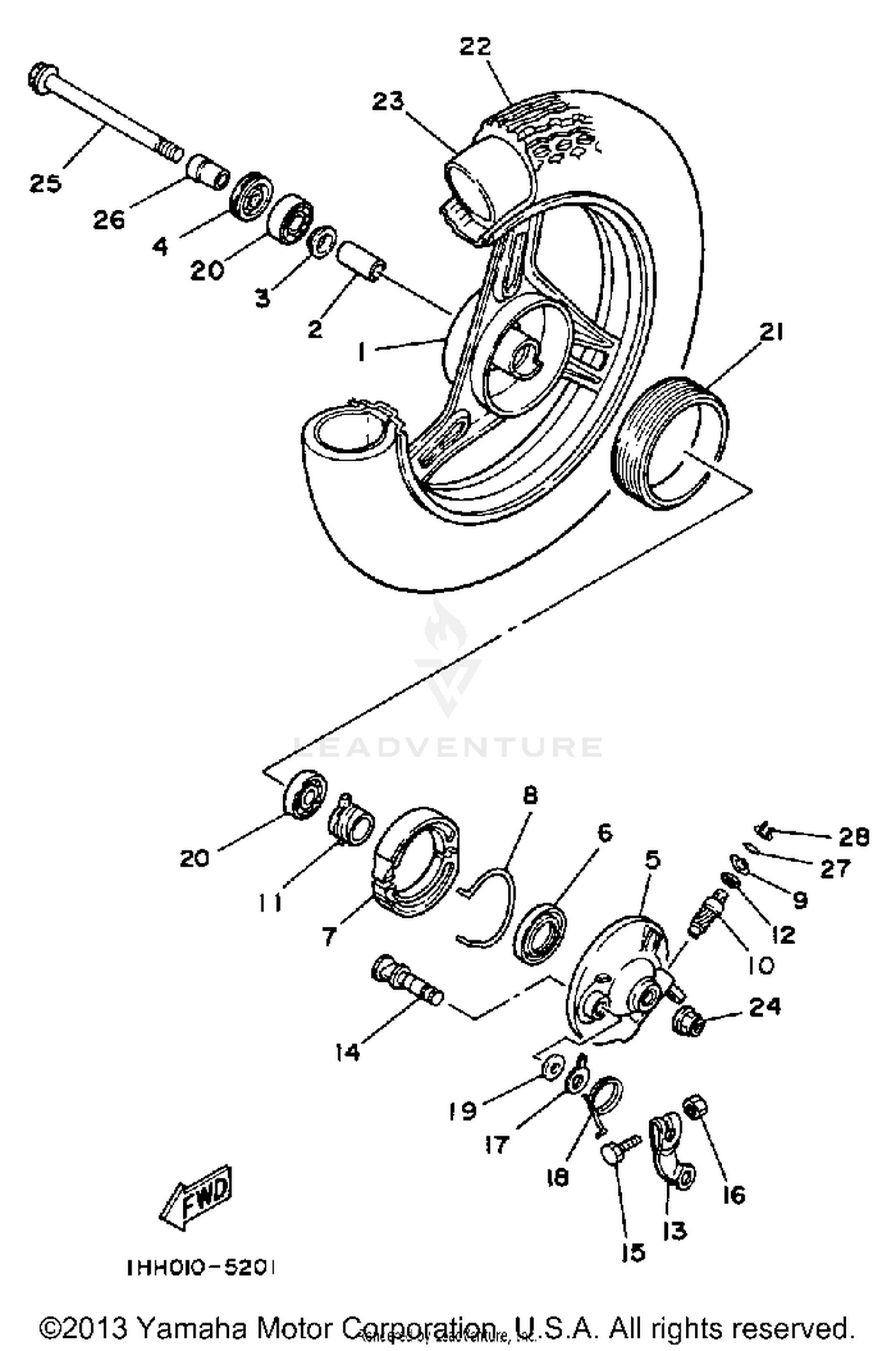

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL COMP.
25K-25180-00-35
|
$136.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-10236-00
|
$7.49 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER 2
25K-25116-00-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-17015-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, BRAKE SHOE
25K-25121-00-35
|
$42.99 | ||
|
Unavailable |
|||
|
#6
OIL SEAL
93109-34057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKESHOE SET-2PCS
27V-W2535-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#8
SPRING, RETURN
2E9-25133-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, STOP
2T4-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, METER
2E9-25138-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, DRIVE (14T)
2E9-25135-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-064L6-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT 1
25K-25155-00-00
Superseded by 3EP-25155-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#14
CAMSHAFT
25K-25151-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
BOLT
97021-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, INDICATOR
25K-2513A-00-00
Superseded by 3L8-2513A-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, TORSION (K17)
90508-26393-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, CAMSHAFT
25K-25159-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93306-20005-00
Superseded by 93306-20009-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING 1
2T4-25185-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
275-10 IRC 4PR (94127-103M0)
94127-101K4-00
|
$26.99 | ||
|
Unavailable |
|||
|
#23
TUBE (2.50/2.75-10)
94227-10219-00
Superseded by 94225-10270-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
25K-25181-00-00
Superseded by 90101-10074-00
|
$7.99 | ||
|
Unavailable |
|||
|
#26
COLLAR
90387-104H9-00
|
$3.85 | ||
|
Unavailable |
|||
|
#27
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
RING, STOP
2E9-25137-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
