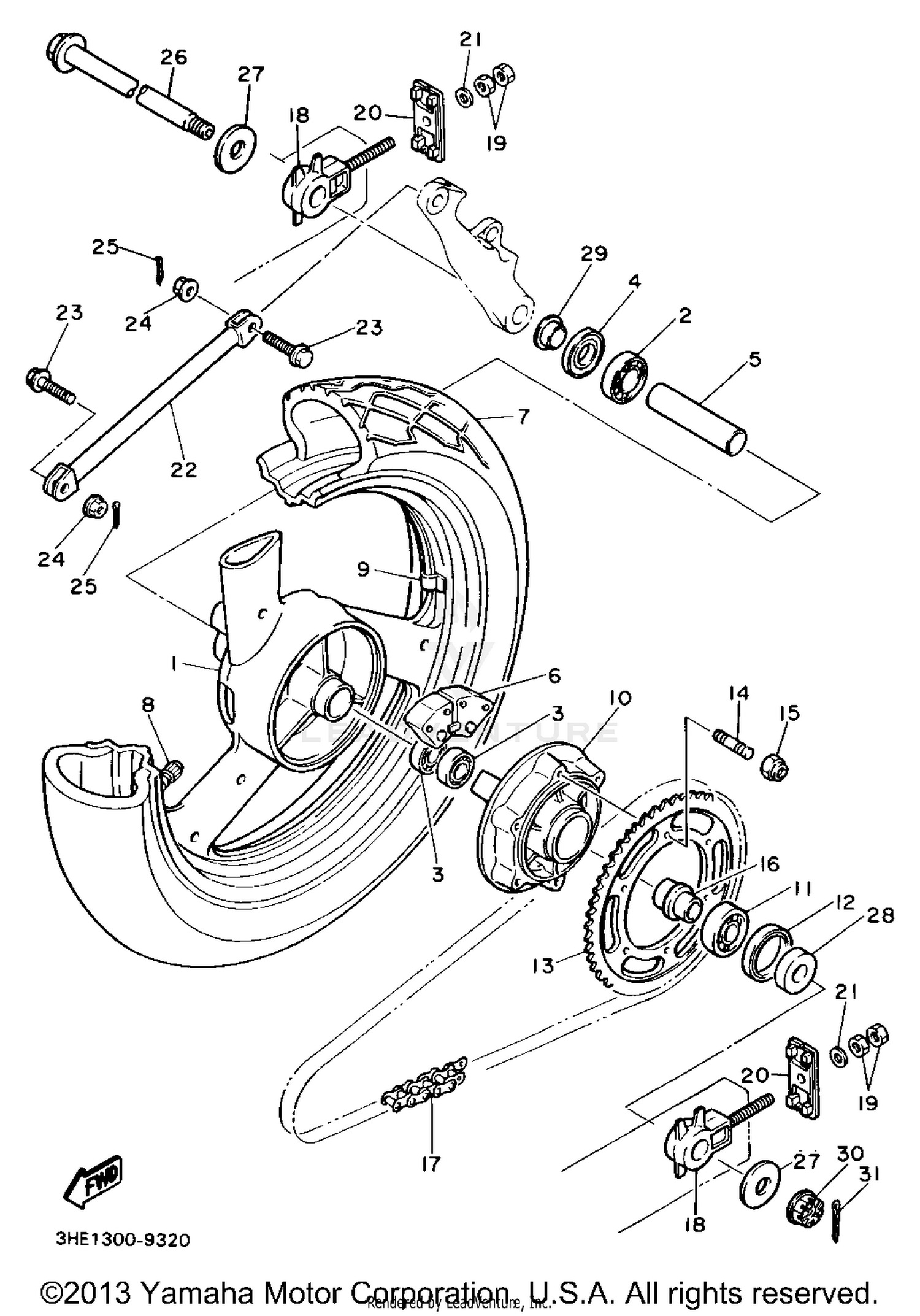

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
3HE-25338-00-UA
|
$563.99 | ||
|
Unavailable |
|||
|
#
CAST WHEEL, REAR
3HE-25338-00-WN
|
$563.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-25044-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-174V8-00
|
$15.49 | ||
|
Unavailable |
|||
|
#6
DAMPER
1UF-25364-00-00
Superseded by 4BP-25364-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE
94113-183U5-00
|
$197.99 | ||
|
Unavailable |
|||
|
#8
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR
90387-173L5-00
Superseded by 90387-177Y4-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLUTCH, HUB
1UF-25366-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93306-37203-00
Superseded by 93306-37207-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93105-42024-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
UNAVAILABLE IN PRICE BOOK (46T)
1AE-25446-21-33
|
|||
|
Unavailable |
|||
|
#14
BOLT, STUD
90116-10485-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-177K0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CHAIN
94581-42106-00
Superseded by 94581-59106-00
|
$316.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLER, CHAIN 1
4BP-25388-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
END 1
3HE-22174-00-00
Superseded by 4JH-22174-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR, TENSION
36Y-25371-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-08321-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
AXLE, WHEEL
3HE-25381-00-00
Superseded by 3HE-25381-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90201-177K7-00
Superseded by 90201-170T3-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-177Y5-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, CASTLE
90171-16024-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
