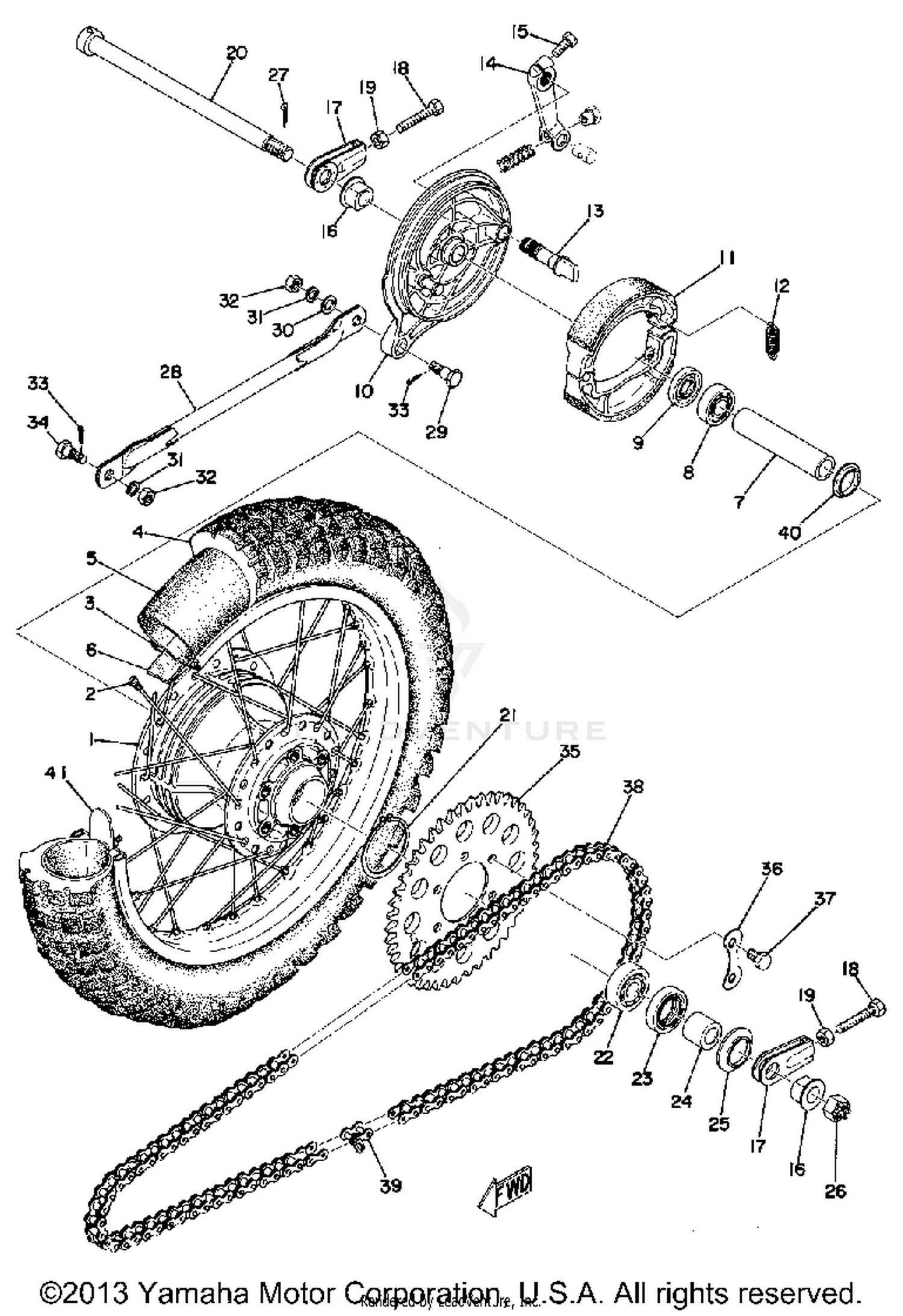

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, REAR
401-25304-00-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#
HUB, REAR
403-25311-00-38
|
$118.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, INNER 2
401-25396-90-00
|
$3.38 | ||
|
Unavailable |
|||
|
#
SPOKE SET, REAR
402-25304-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#3
RIM (1.85-18)
94418-18171-00
Superseded by 94418-18007-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPOKE SET, OUTER 2
401-25397-90-00
|
$3.38 | ||
|
Unavailable |
|||
|
#4
CS 350X18 C-755-1
94135-18551-00
|
$46.99 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
345-25391-90-00
|
$3.30 | ||
|
Unavailable |
|||
|
#5
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPOKE SET, OUTER 1
345-25392-90-00
|
$3.80 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-15312-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRAKE SHOE PLATE ASSEMBLYASSY (
437-25026-10-35
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE SET
183-W2536-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#12
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, CAMSHAFT
214-25355-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-15115-00
|
$13.99 | ||
|
Unavailable |
|||
|
#17
PULLER, CHAIN 1
248-25388-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE, WHEEL (2R7-25381-00)
401-25381-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
93410-52061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR (401-25377-00)
90387-15424-00
|
$5.99 | ||
|
Unavailable |
|||
|
#25
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAR, TENSION
401-25371-01-00
|
$4.20 | ||
|
Unavailable |
|||
|
#29
BOLT
90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#33
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
NO LONGER AVAILABLE
90109-08068-00
|
$1.30 | ||
|
Unavailable |
|||
|
#35
SPROCKET, DRIVN 47T
402-25447-00-00
|
$71.96 | ||
|
Unavailable |
|||
|
#36
WASHER
22W-25412-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT (661)
97313-08012-00
Superseded by 97013-08012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT (214-25411-00)
90109-08377-00
|
$3.65 | ||
|
Unavailable |
|||
|
#38
CHAIN
94580-24116-00
Superseded by 9Y582-51115-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CHAIN JOINT
94680-24001-00
Superseded by 94681-64001-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#40
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPACER, BEAD
1T2-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
