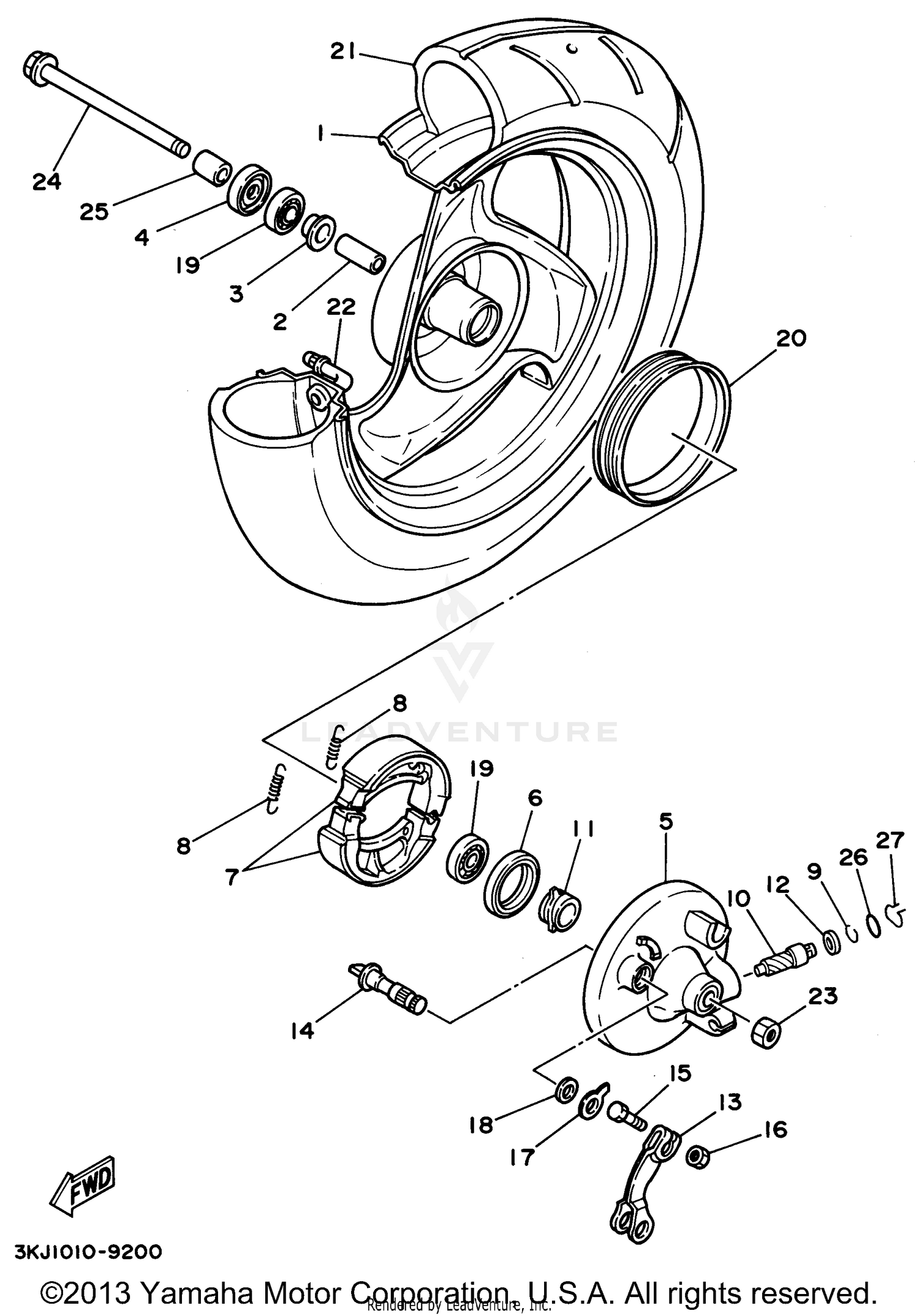

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT WHEEL COMP.
3YJ-25180-00-UJ
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FRONT WHEEL COMP.
3YJ-25180-00-P2
|
$108.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-10289-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER 2
25K-25116-00-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-17015-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,BRAKE SHOE
2GM-25121-00-UJ
Superseded by 2GM-25121-01-UJ
|
$69.99 | ||
|
Unavailable |
|||
|
#
PLATE,BRAKE SHOE
2GM-25121-00-33
Superseded by 2GM-25121-01-33
|
$74.99 | ||
|
Unavailable |
|||
|
#6
OIL SEAL
93109-34057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE SHOE KIT
4FB-W2535-00-00
Superseded by 5BM-W253A-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-14081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, STOP
2T4-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, METER
2E9-25138-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, DRIVE (14T)
2E9-25135-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-064L6-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT 1
2T4-25155-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAMSHAFT
3KJ-25151-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97021-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, INDICATOR
3L8-2513A-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, CAMSHAFT
25K-25159-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-20005-00
Superseded by 93306-20009-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING 1
3KJ-25185-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE (80/90-10 35J C922)
94108-1004V-00
Superseded by 94108-10008-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, RIM
93900-00036-00
Superseded by 93900-00041-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-10154-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE, WHEEL
3YJ-25181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER
90560-10360-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-10096-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
RING, STOP
2E9-25137-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
