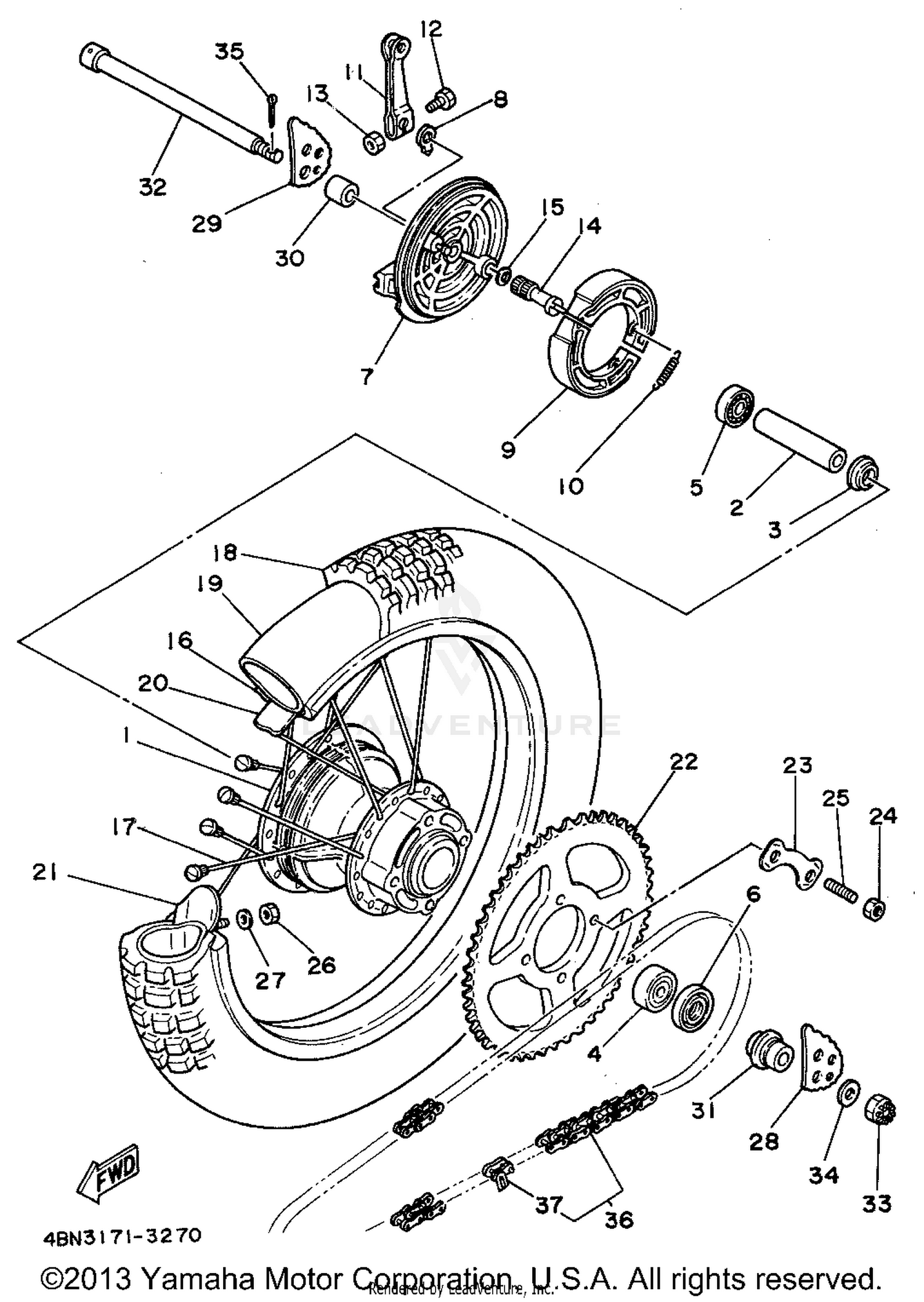

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
10V-25311-00-98
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, BRAKE SHOE
10V-25321-00-98
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE SHOE KIT
3KG-W2536-00-00
Superseded by 3KG-W253E-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-16447-00
Superseded by 90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, CAMSHAFT 1
1E2-25155-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIM (2.15-18)
94421-18183-00
Superseded by 94421-18854-00
|
$182.99 | ||
|
Unavailable |
|||
|
#17
SPOKE SET, REAR
10V-25304-01-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TIRE (100/100-18 59P MT21 TT)
94110-188F3-00
|
$203.15 | ||
|
Unavailable |
|||
|
#19
TUBE (4.10-18)
94210-18883-00
Superseded by 94241-18153-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, BEAD
58W-F5394-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#22
SPROCKET, DRIVEN (51T)
53V-25451-50-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
10V-25412-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, STUD
90116-10390-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
PULLER, CHAIN 1
5L9-F5388-00-00
Superseded by 1W2-25388-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PULLER, CHAIN 2
5L9-F5389-00-00
Superseded by 1W2-25389-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-15115-00
|
$13.99 | ||
|
Unavailable |
|||
|
#31
COLLAR, WHEEL
23K-F5383-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#32
AXLE, WHEEL
5L9-F5381-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-15238-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
D1D428DS-126L
94580-33126-00
Superseded by 94580-24126-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
D1D428DS-126L
94580-33126-00
Superseded by 94580-24126-00
|
$50.99 | ||
|
Unavailable |
|||
