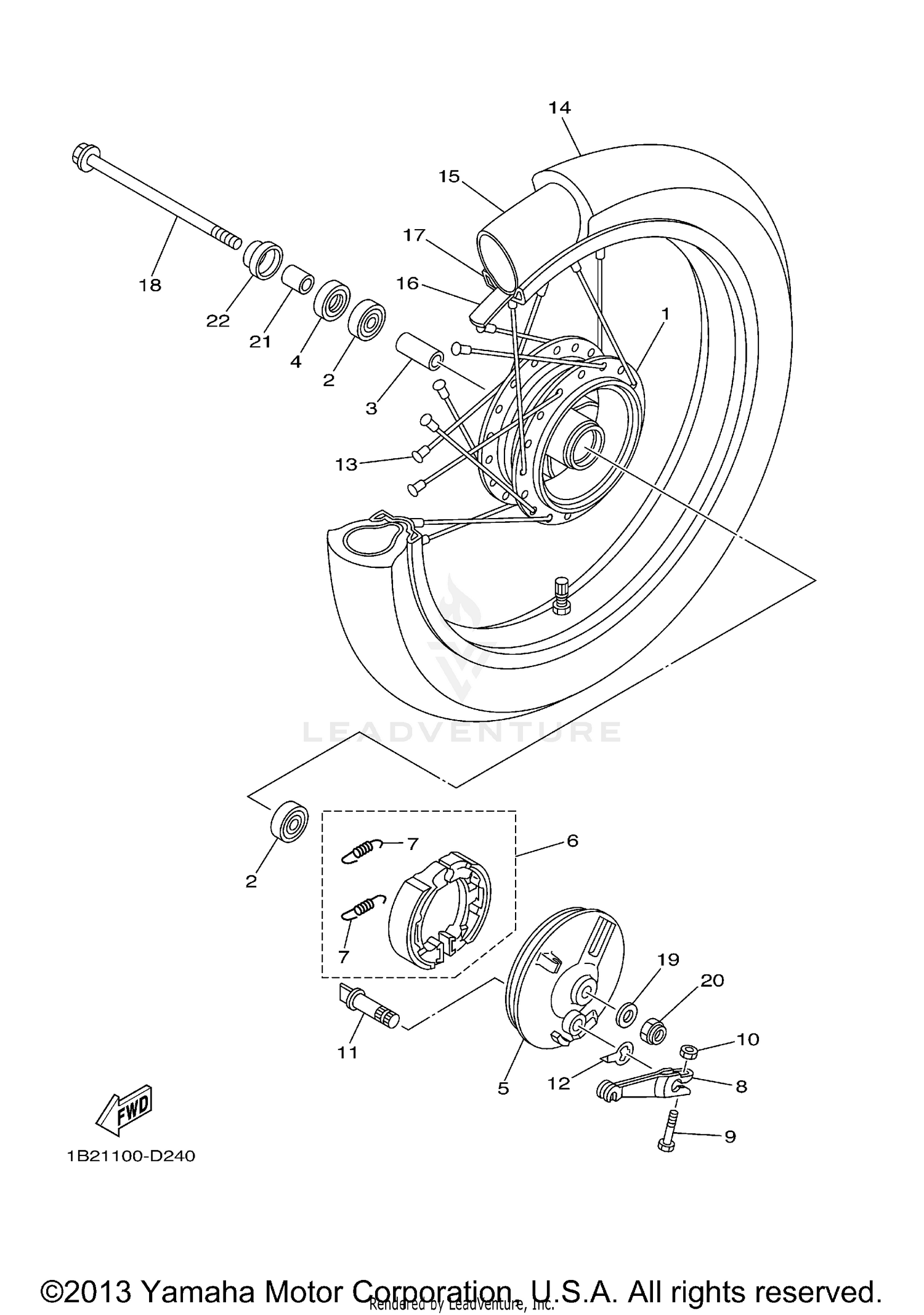

Front Wheel Ew Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1B2-F5111-00-35
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-301YX-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
90560-12138-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-20809-00
Superseded by 93106-20033-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, BRAKE SHOE
1B2-F5121-00-35
|
$112.99 | ||
|
Unavailable |
|||
|
#6
BRAKE SHOE KIT
4KN-W253E-11-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-15260-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, CAMSHAFT 1
1B2-F5155-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,HEXAGON
90101-06W00-00
Superseded by 97017-06030-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
9530M-06600-00
Superseded by 95317-06600-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
1B2-F5151-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, INDICATOR
1B2-F513A-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPOKE SET, FRONT
1B2-F5104-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TIRE (70/100-17 40M)
94107-17008-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE
94207-17003-00
Superseded by 94207-17808-00
|
$16.99 | ||
|
Unavailable |
|||
|
#16
BAND, RIM (22-17)
94307-17035-00
Superseded by 94307-17166-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIM (1.40-17)
94414-17805-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
AXLE, WHEEL
1B2-F5181-00-00
Superseded by 3UN-25181-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-12749-00
Superseded by 90201-12047-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95617-12100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-12096-00
Superseded by 90387-120F9-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, HUB DUST
2TY-F5118-00-00
Superseded by 322-25118-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
