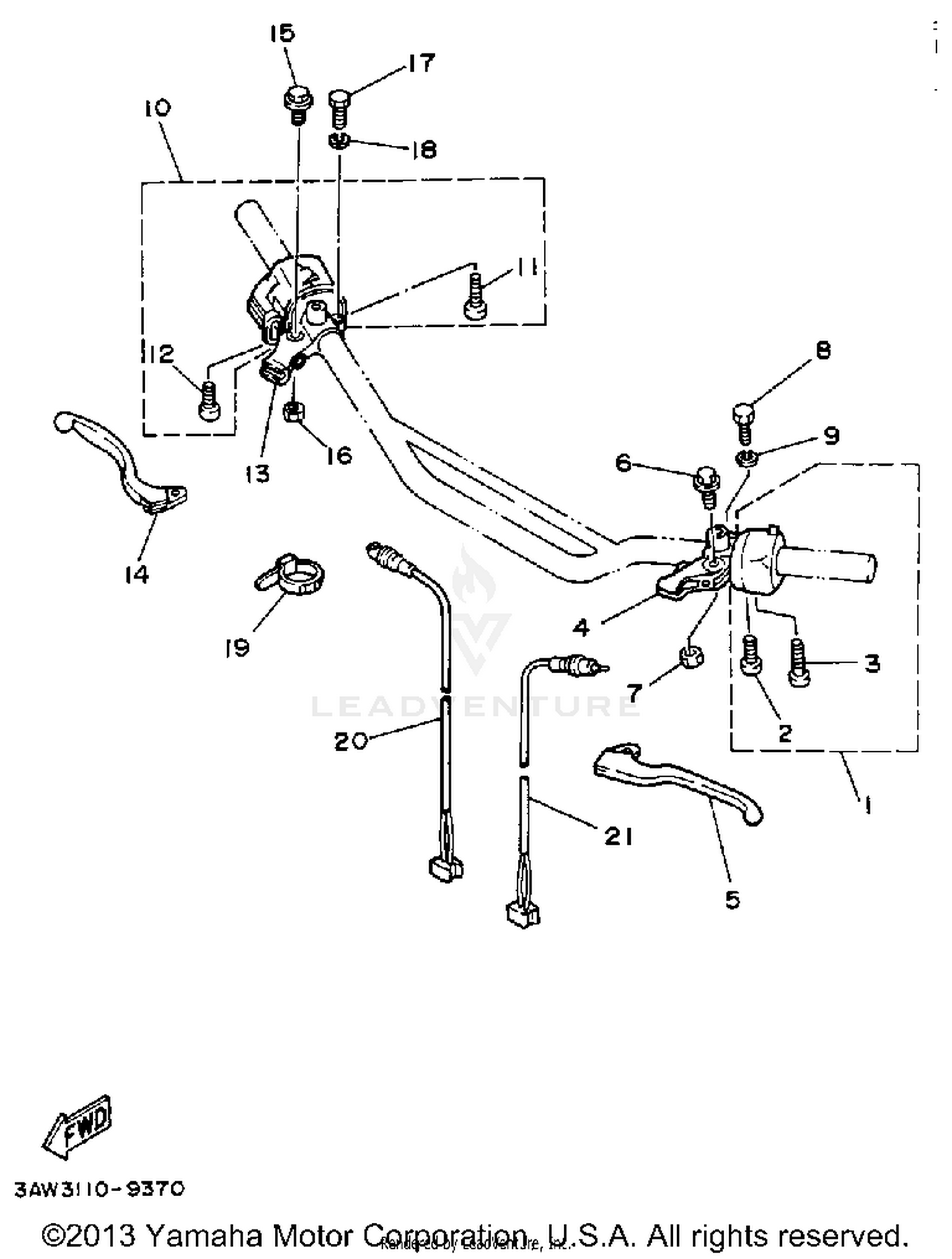

Handle Switch Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH, HANDLE 3
2JX-83973-00-00
Superseded by 2JX-83973-01-00
|
$164.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
90157-05057-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98506-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, LEVER 1
3Y6-82911-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER 1
23X-83912-00-00
Superseded by 23X-83912-02-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90109-06799-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97006-06022-00
Superseded by 97007-06022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH, HANDLE 1
2JX-83976-00-00
|
$106.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98506-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER HOLDER ASSEMBLY 2
361-82920-93-00
|
$119.99 | ||
|
Unavailable |
|||
|
#14
LEVER 2
23X-83922-00-00
Superseded by 23X-83922-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-06799-00
|
$4.70 | ||
|
Unavailable |
|||
|
#16
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
BOLT
97006-06022-00
Superseded by 97007-06022-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#19
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SWITCH
5H0-83980-00-00
Superseded by 3Y6-82917-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#21
SWITCH
3Y6-82917-00-00
|
$16.49 | ||
|
Unavailable |
|||
