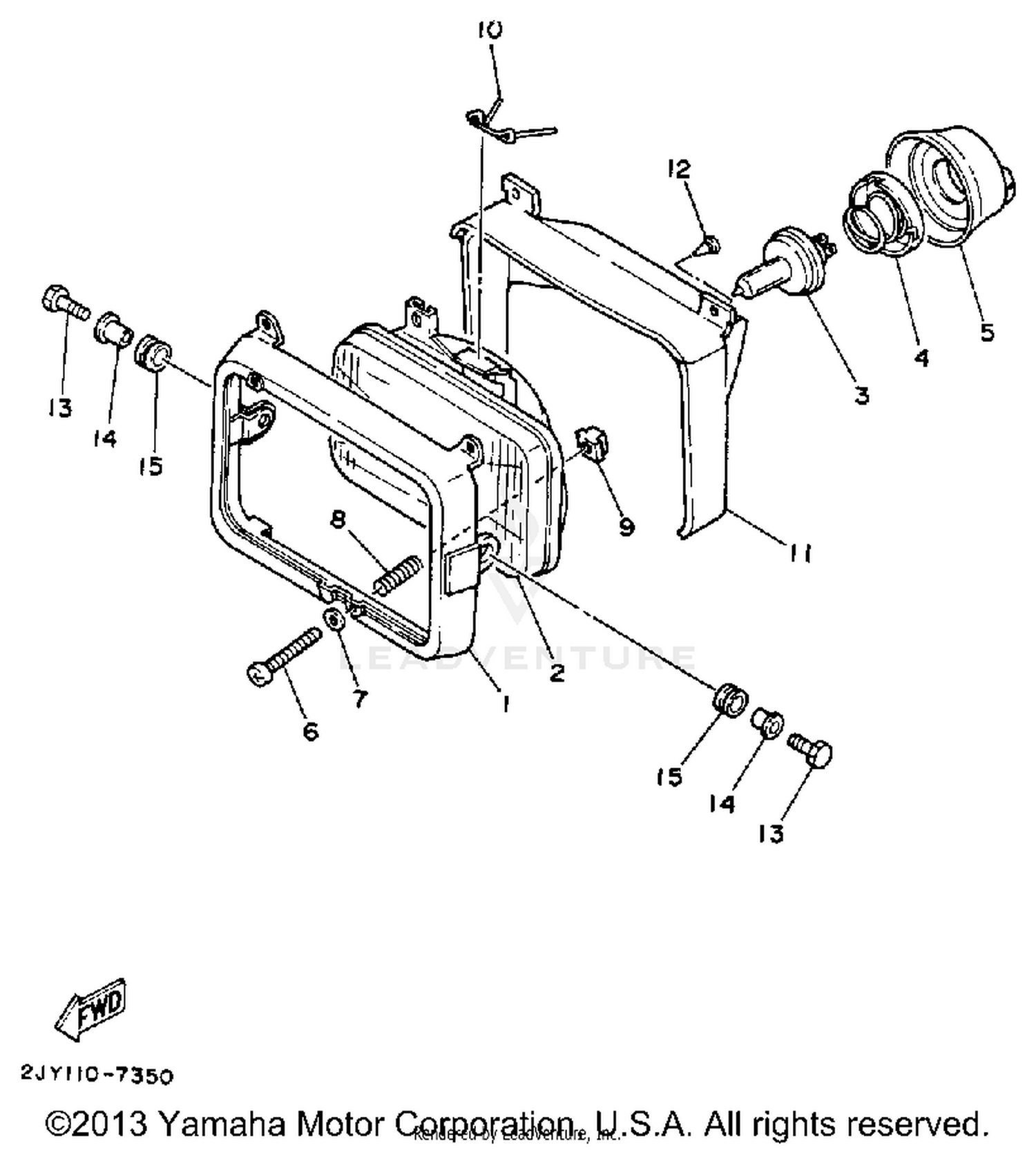

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIM, HEADLIGHT
47J-84115-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS ASSEMBLY
2JX-84320-A0-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB, HEADLIGHT
1ML-84314-00-XX
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, RIM ADJUSTER
43F-84131-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
233-84127-60-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, SET
5G2-84324-A0-00
Superseded by 55X-84124-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SOCKET
10V-84196-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, COVER FITTING
10V-84198-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
