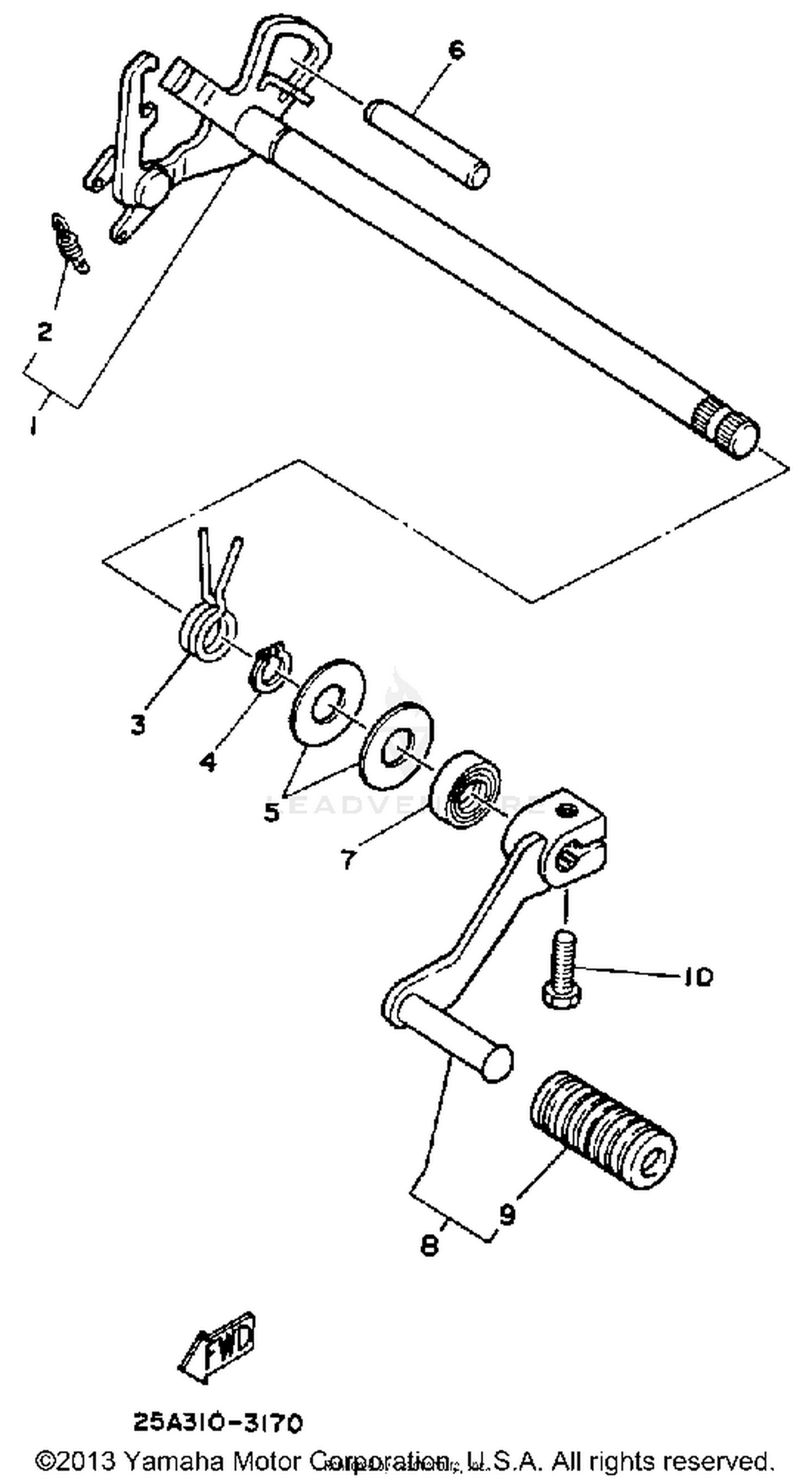

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT LEVER ASSY
5H0-18120-02-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TENSION
90506-08227-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-29540-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93608-50158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93102-12321-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFT PEDAL ASSY
1RL-18110-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
