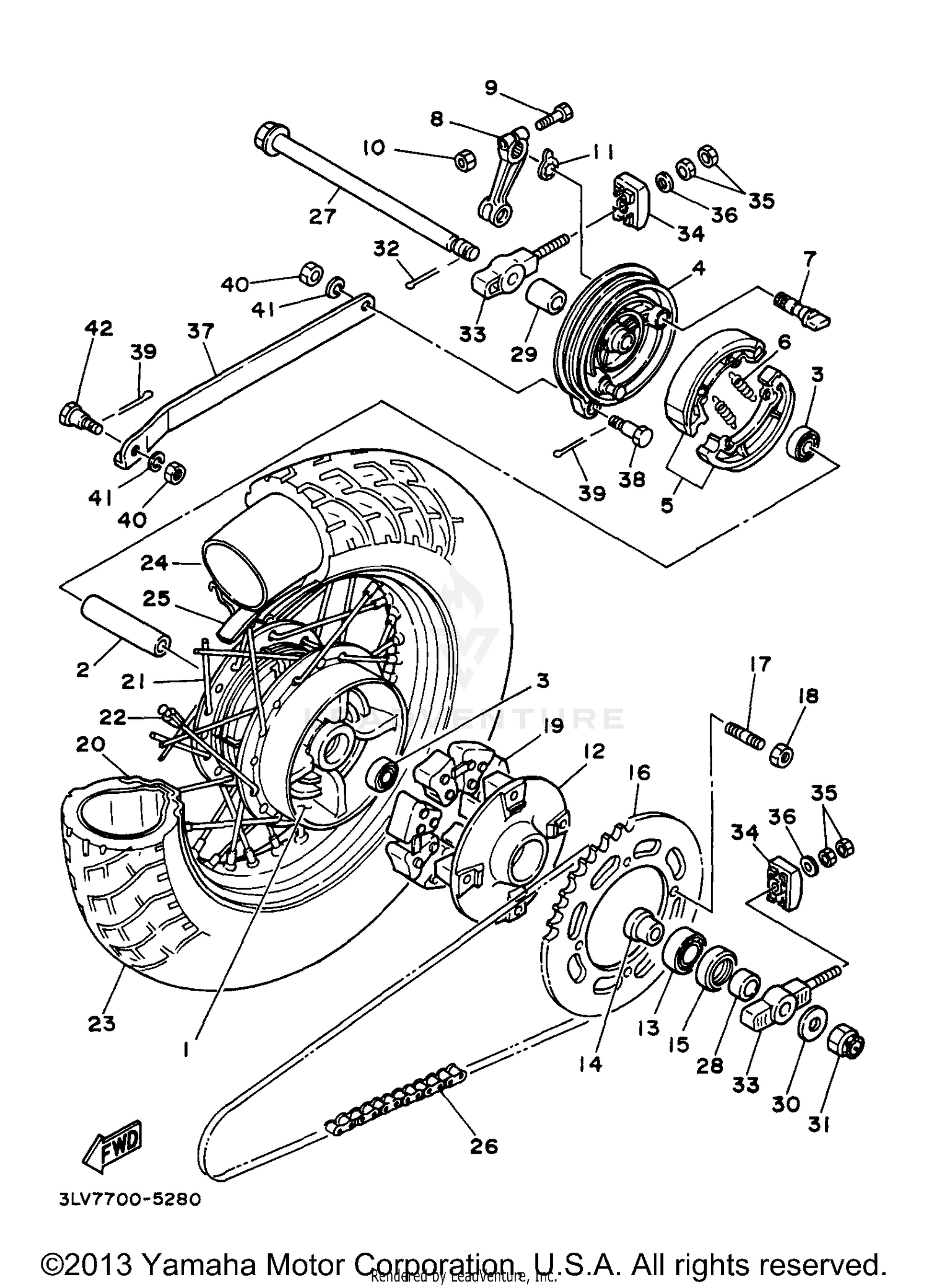

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
2UJ-25311-10-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
2UJ-25317-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, BRAKE SHOE
2RH-25321-10-00
Superseded by 2RH-25321-11-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRAKE SHOE KIT
3LS-W2536-00-00
Superseded by 3LS-W253E-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, CAMSHAFT
5H0-25355-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90101-06765-00
Superseded by 90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95304-06600-00
Superseded by 95314-06600-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLUTCH, HUB
5Y1-25366-10-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-30416-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, WHEEL
2UJ-25377-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93106-30029-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVEN (45T)
4DN-25445-20-00
Superseded by 4DN-25445-30-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD
90116-10485-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
95604-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER
5Y1-25364-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RIM
94427-15476-00
|
$341.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPOKE SET, REAR
2UJ-25304-00-00
Superseded by 2UJ-25304-02-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
TIRE (130/90-15 M/C 66P C-915)
94113-154W1-00
Superseded by 94113-151W8-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE (130/90-15 TR4)
94213-15265-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, RIM (130/90-15)
94313-15154-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CHAIN (DID520DMA2 SDH 114LL)
94581-11114-00
Superseded by 9Y581-92113-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
AXLE, WHEEL
2UJ-25381-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
2UJ-25383-00-00
Superseded by 90387-15004-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-153U1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN
92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, CASTLE
90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, COTTER
91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PULLER, CHAIN 1
2UJ-25388-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE 1
55K-2539F-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, HEX.
95380-08600-00
Superseded by 99780-08600-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAR, TENSION
2UJ-25371-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
90109-081G5-00
Superseded by 90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT
95304-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
90109-081G6-00
Superseded by 90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
