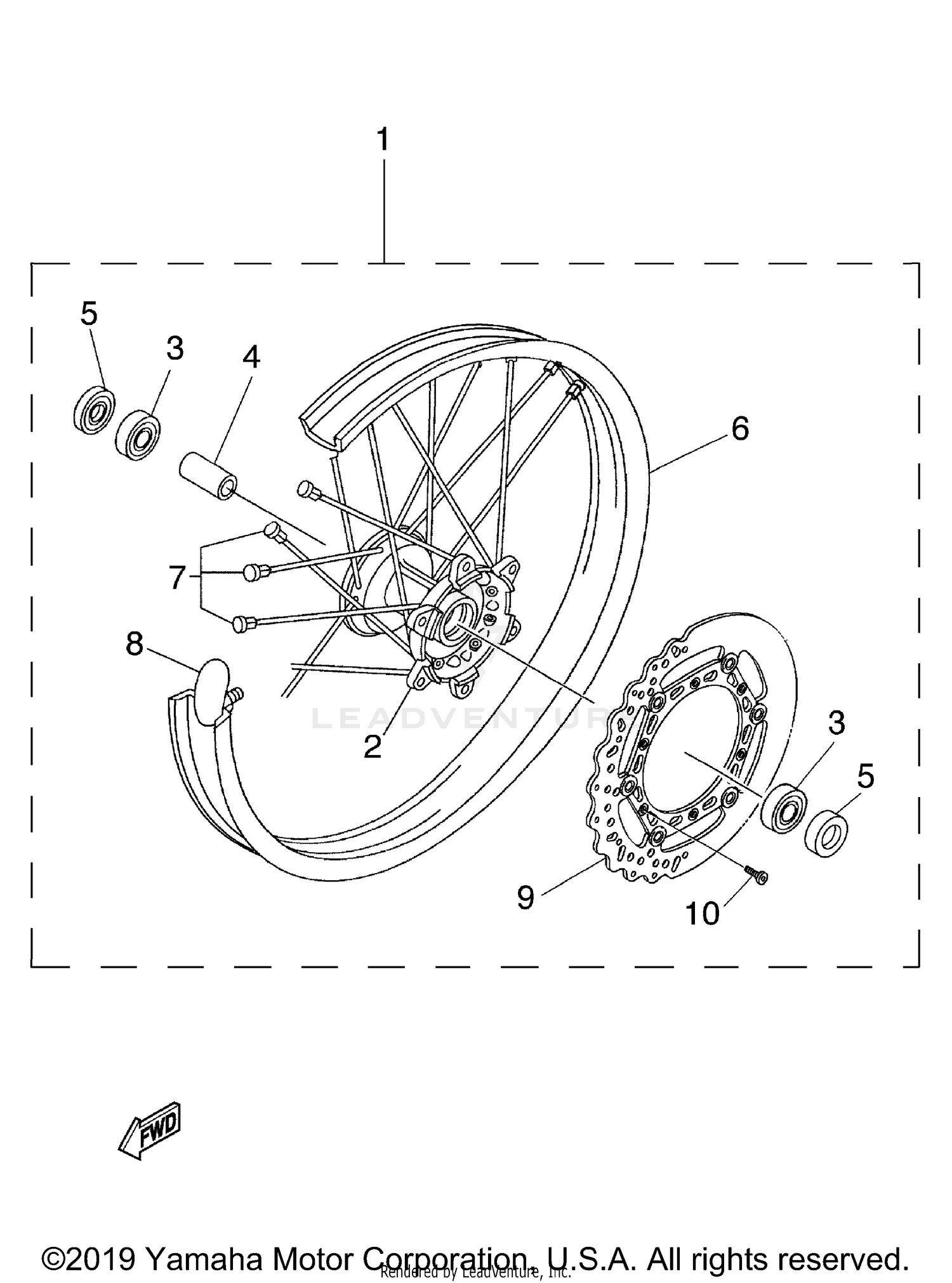

Front Wheel Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPARE WHL ASSY- WR45
5TJ-W2519-F0-00
Superseded by 5TJ-W2519-J0-00
|
$345.99 | ||
|
Unavailable |
|||
|
#2
HUB, FRONT
5NG-25111-50-00
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-90409-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, BEARING
5NY-25117-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-26468-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIM (1.60-21)
94416-21005-00
|
$328.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPOKE SET, FRONT
5NY-25105-00-00
|
|||
|
Unavailable |
|||
|
#8
SPACER, BEAD
5SF-25394-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISC BRAKE ASSY
2S2-2581T-70-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, COUNTERSUNK
90151-06051-00
Superseded by 90151-06079-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
