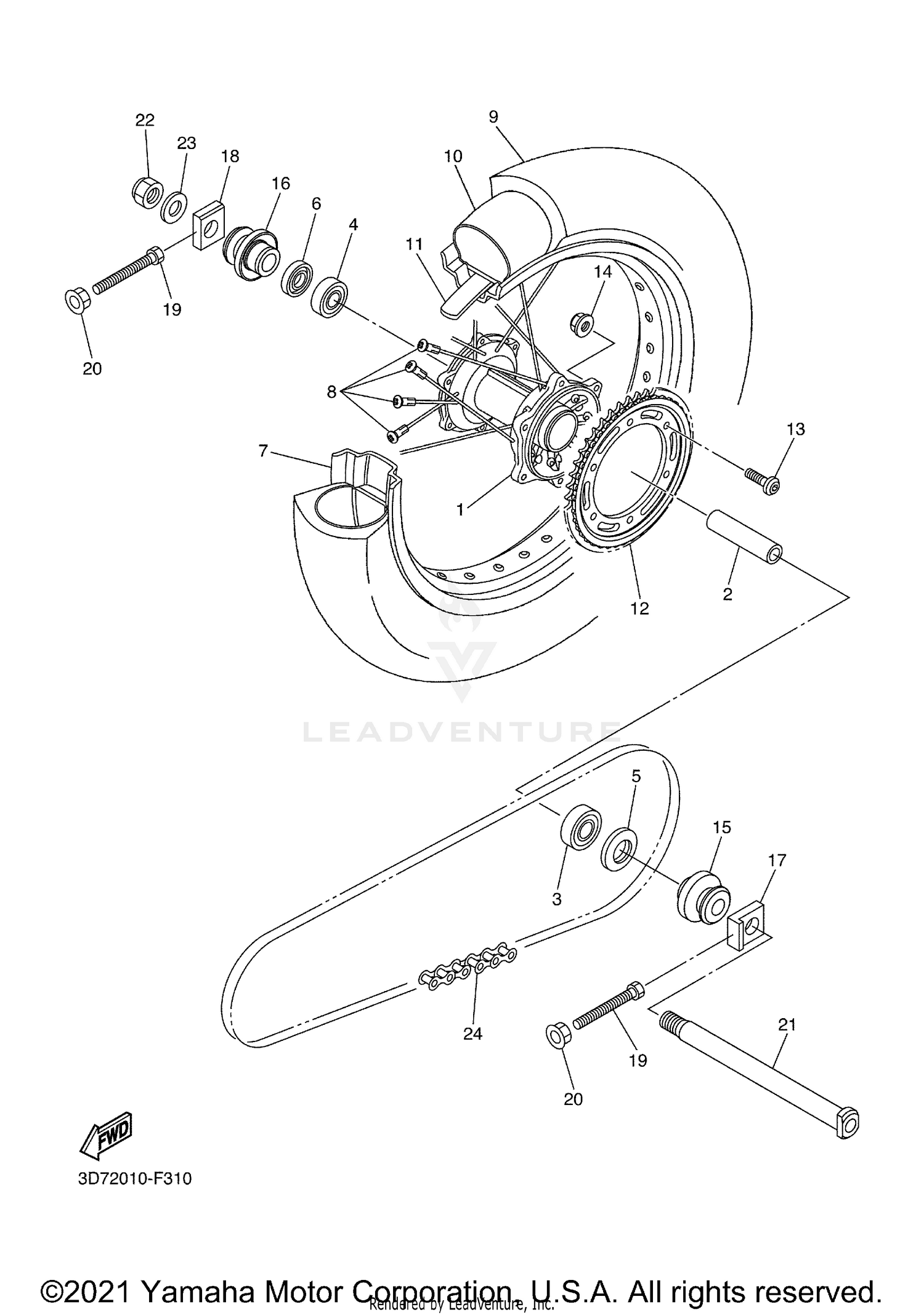

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
3D7-25311-00-00
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
5ET-25317-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-27205-00
Superseded by 93306-27206-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-07202-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-30001-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-30045-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIM (17M/C X MT4.00)
94440-17002-00
|
$397.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE SET, REAR
3D7-25304-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE (140/70R17 M/C 66H BT090R)
94114-17008-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE (140A160/70D-R17 M/C TR-4)
94214-17003-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, RIM (MT4.00X17)
94314-17035-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, DRIVEN (42T)
32C-25442-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. SOCKET BUTTON
90111-08030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
95602-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR ASSY
3D7-2530S-00-00
Superseded by 3D7-2530S-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#16
COLLAR ASSY
3D7-2531S-00-00
Superseded by 3D7-2531S-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#17
PULLER, CHAIN 1
1C3-25388-H0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLER, CHAIN 2
1C3-25389-H0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-08006-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08019-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
AXLE, WHEEL
3D7-25381-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SELF-LOCKING
90185-20002-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-20020-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN (D.I.D.520V-108LE)
94582-02108-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
