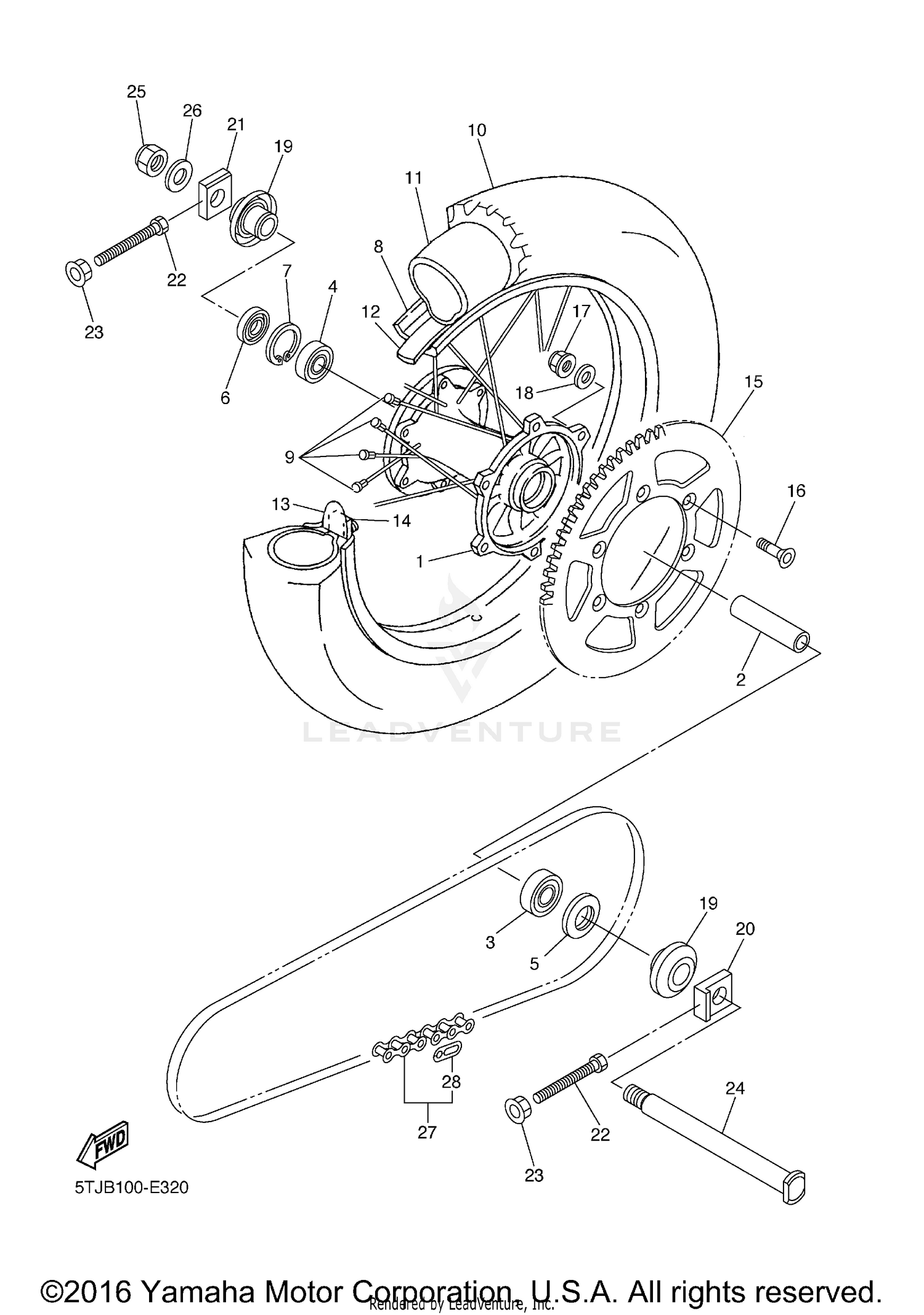

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
5ET-25311-00-00
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, BEARING
5ET-25317-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-27212-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-07202-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-30001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-30045-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-45500-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIM (2.15-18)
94421-18008-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE SET, REAR
5GS-25304-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE (110/100-18 64M D756)
94111-18012-00
|
$131.99 | ||
|
Unavailable |
|||
|
#11
TUBE (110-140/80-100-18 M/C)
94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, RIM (2.50-18)
94309-18146-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, BEAD
3JE-25394-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
4XM-25364-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (52T)
5TJ-25452-80-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (50T)
5TJ-25450-80-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPROCKET, DRIVEN (48T)
5GS-25448-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-08078-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR ASSY
5TJ-2530S-80-00
Superseded by 5TJ-2530S-81-00
|
$32.99 | ||
|
Unavailable |
|||
|
#20
PULLER, CHAIN 1
1C3-25388-H0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 2
1C3-25389-H0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90101-08006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-08019-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE, WHEEL
1C3-25381-90-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCKING
90185-20002-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-20020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CHAIN D.I.D.520VM
9Y58A-76113-00
Superseded by 94581-76114-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
JOINT, CHAIN (DID 520VM-ZJ)
94681-76021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
