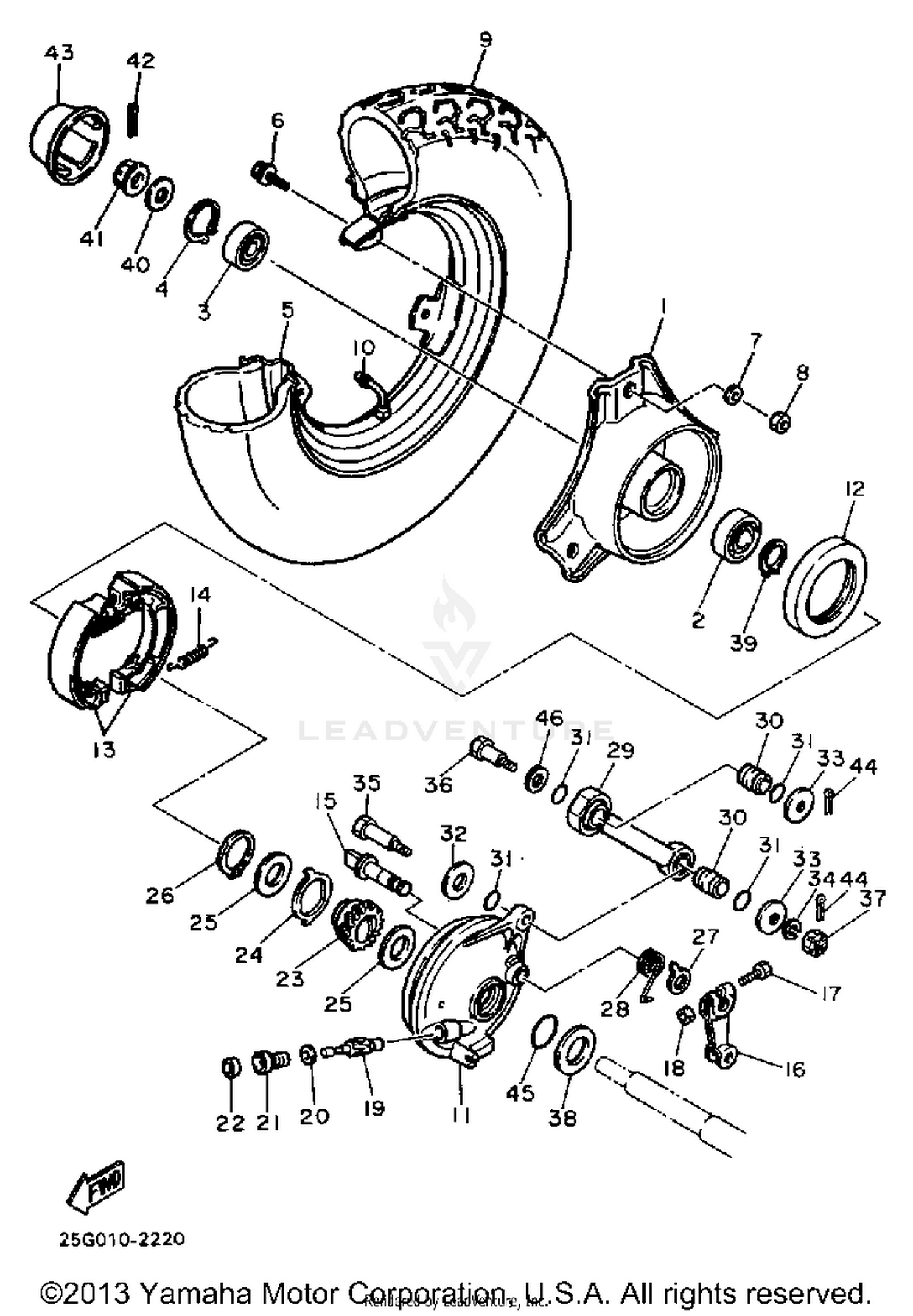

Front Wheel Xc180k Kc L Lc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT (25G-25111-00-38)
25G-25111-01-38
|
$119.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20117-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-32500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM ASSEMBLY (25G-2510A-00-35)
25G-2510A-01-35
|
$102.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90101-08594-00
|
$3.80 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
350-10ML3-A
94135-106M2-00
|
$62.99 | ||
|
Unavailable |
|||
|
#10
VALVE, RIM
93900-00036-00
Superseded by 93900-00041-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, BRAKE SHOE
25G-25121-00-35
|
$76.99 | ||
|
Unavailable |
|||
|
#12
OIL SEAL, SD-TYPE
93102-55196-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKE SHOE KIT
25G-W2535-00-00
Superseded by 3TE-W253A-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, CAMSHAFT 1
25G-25155-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, METER
25G-25138-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL, SO-TYPE
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, DRIVE
25G-25135-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#24
CLUTCH, METER
25G-25149-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-301G3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
99009-30400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, INDICATOR
25G-2513A-00-00
|
$3.05 | ||
|
Unavailable |
|||
|
#28
SPRING, TORSION
90508-26584-00
|
$5.49 | ||
|
Unavailable |
|||
|
#29
COMPRESSION BAR ST
32H-W2512-01-00
|
$85.99 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-101H3-00
|
$11.99 | ||
|
Unavailable |
|||
|
#31
93210-13595-00
93210-13595-00
Superseded by 93210-13M04-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-106M5-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-106M5-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
WASHER,PLATE
90201-087H6-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, WITH HOLE
90102-10031-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, WITH HOLE
90102-10057-00
|
$6.99 | ||
|
Unavailable |
|||
|
#37
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-171G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-124G9-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, SELF-LOCKING
90185-12080-00
Superseded by 90185-12134-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CAP
25G-25335-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#44
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#45
O-RING
93210-16314-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
