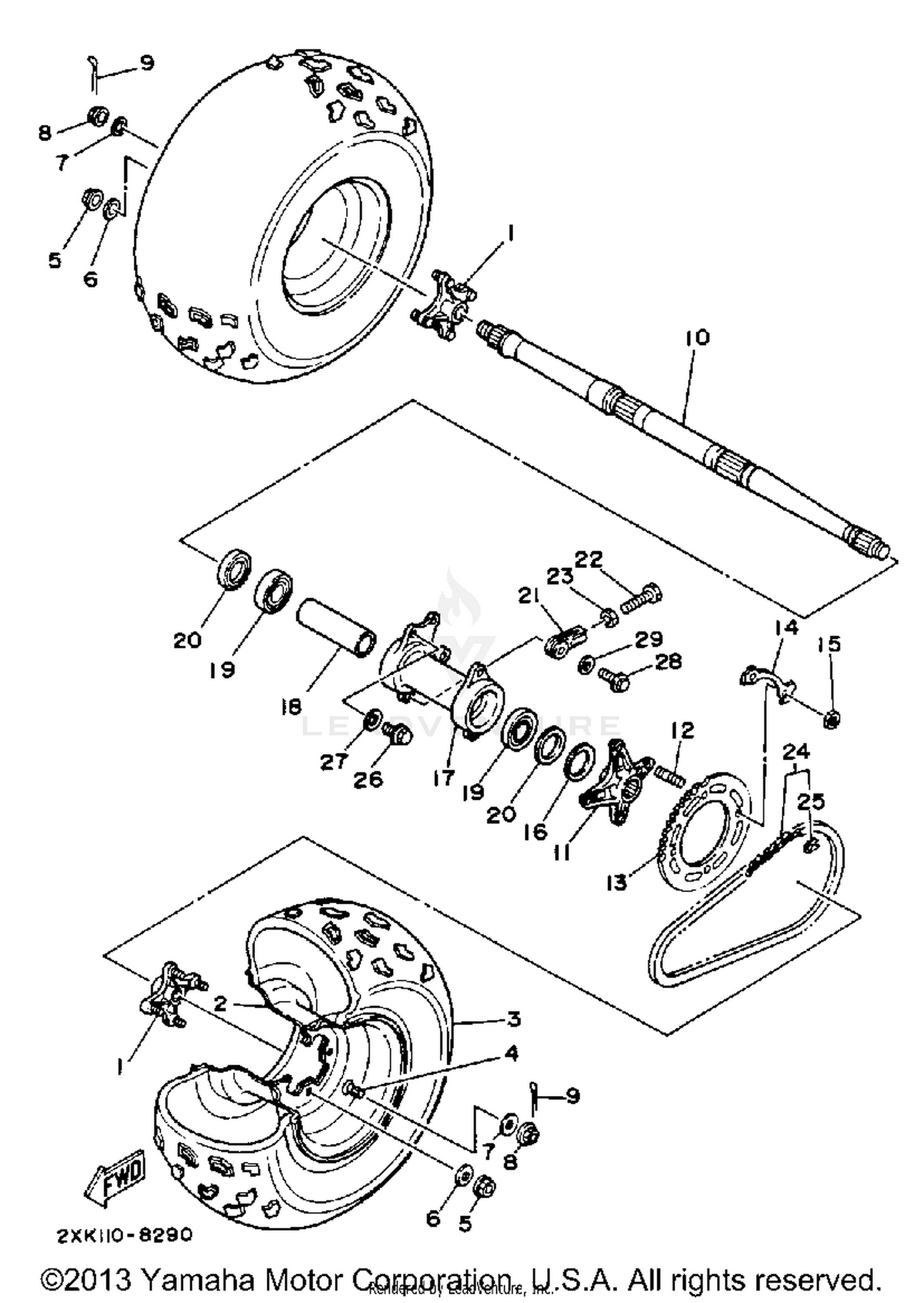

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL SHAFT COLLAR ASSY
2GU-25383-11-00
Superseded by 1PE-F53K0-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR WHEEL COMP.
2XK-25390-01-7H
Superseded by 2XK-25390-02-7H
|
$364.99 | ||
|
Unavailable |
|||
|
#3
TIRE (AT22X10-9*KT775B T/L N)
94110-090X4-00
|
$186.99 | ||
|
Unavailable |
|||
|
#4
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-140A6-00
|
$4.70 | ||
|
Unavailable |
|||
|
#8
NUT, CASTLE
90171-14037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE, WHEEL
3GD-25381-00-00
|
$530.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR,SPRCKT.AXLE
1UY-25386-01-00
Superseded by 99999-03111-00
|
$317.99 | ||
|
Unavailable |
|||
|
#12
BOLT, STUD
90116-10483-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, DRIVEN 40T (39F-25440
43F-25440-50-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
5Y1-25412-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Unavailable |
|||
|
#16
COVER, HUB DUST
1UY-25367-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HUB, REAR
2XK-25311-00-35
|
$209.99 | ||
|
Unavailable |
|||
|
#18
SPACER, BEARING
2XK-25317-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-00804-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93102-48370-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 1
1UY-25388-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90101-08615-00
Superseded by 90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
DID 520V6-100FB
94581-08100-00
|
$182.99 | ||
|
Unavailable |
|||
|
#25
JOINT, CHAIN (DID520V FJ)
94681-08011-00
Superseded by 94681-87011-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
FLANGE BOLT
90105-12462-00
Superseded by 99999-03487-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-120A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, WASHER BASED
90105-10418-00
|
$3.95 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-106F2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
