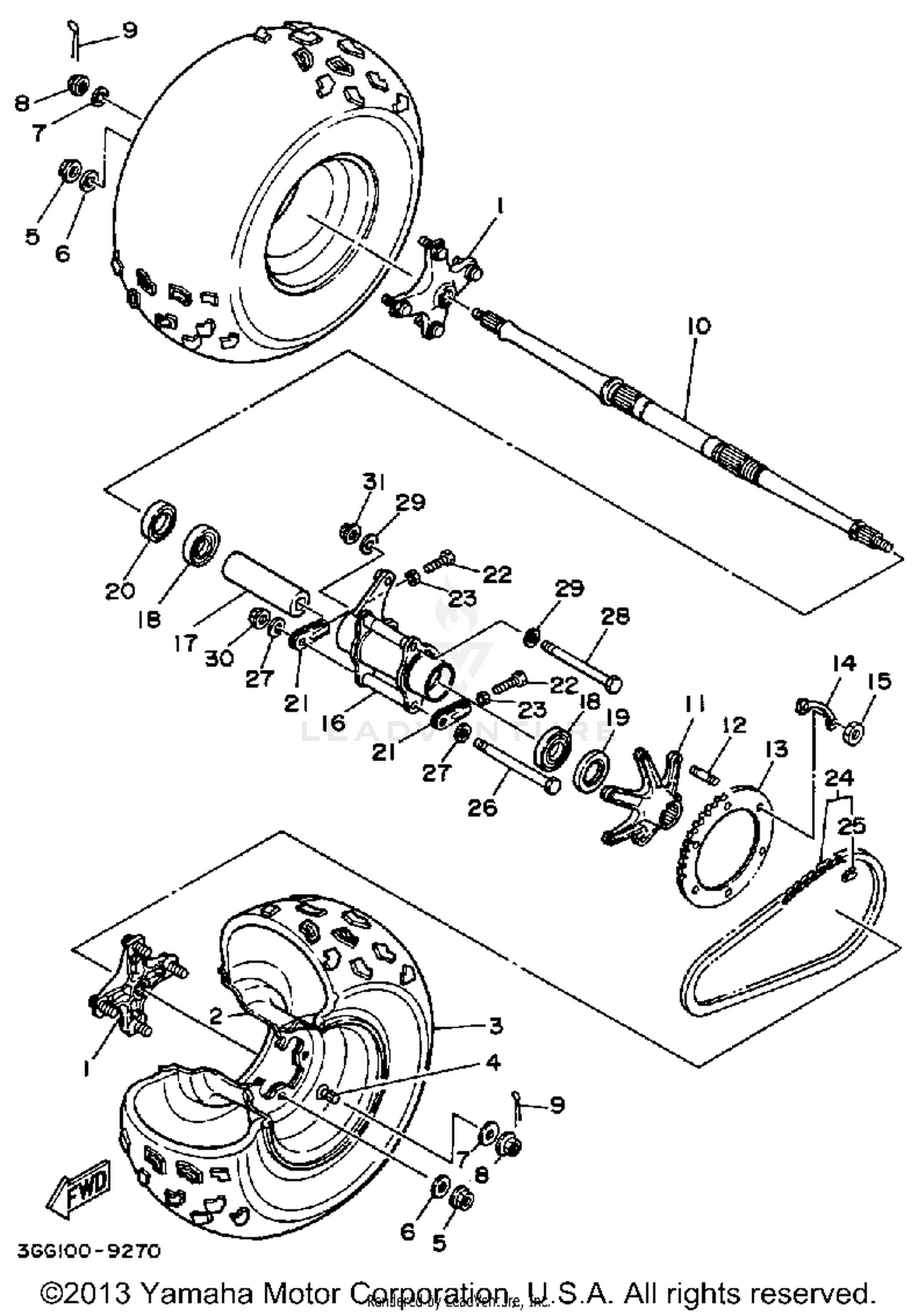

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL SHAFT COLLAR ASSY
2GU-25383-11-00
Superseded by 1PE-F53K0-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR WHEEL COMP.
2XK-25390-01-UJ
|
$314.99 | ||
|
Unavailable |
|||
|
#3
TIRE (AT20X10-9**KT877 T/L)
94110-090Y3-00
|
$105.99 | ||
|
Unavailable |
|||
|
#4
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-140A6-00
|
$4.70 | ||
|
Unavailable |
|||
|
#8
NUT, CASTLE
90171-14037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE, WHEEL
38W-25381-02-00
Superseded by 38W-25381-10-00
|
$527.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SPROCKET AXLE
2XJ-25386-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-08507-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, DRIVEN (41T)
2XJ-25441-20-00
Superseded by 2XJ-25441-21-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
2XJ-25412-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-08258-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
HUB, REAR
3GG-25311-00-35
Superseded by 3GG-25311-01-P1
|
$307.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
90560-35263-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93306-00705-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93106-42026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93102-43341-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 1
2XJ-25388-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90101-08615-00
Superseded by 90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN (DID520V-103L)
94581-08104-00
Superseded by 9Y581-87103-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, CHAIN (DID520V FJ)
94681-08011-00
Superseded by 94681-87011-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90101-10685-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-106F2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-12694-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FLANGE
90179-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
