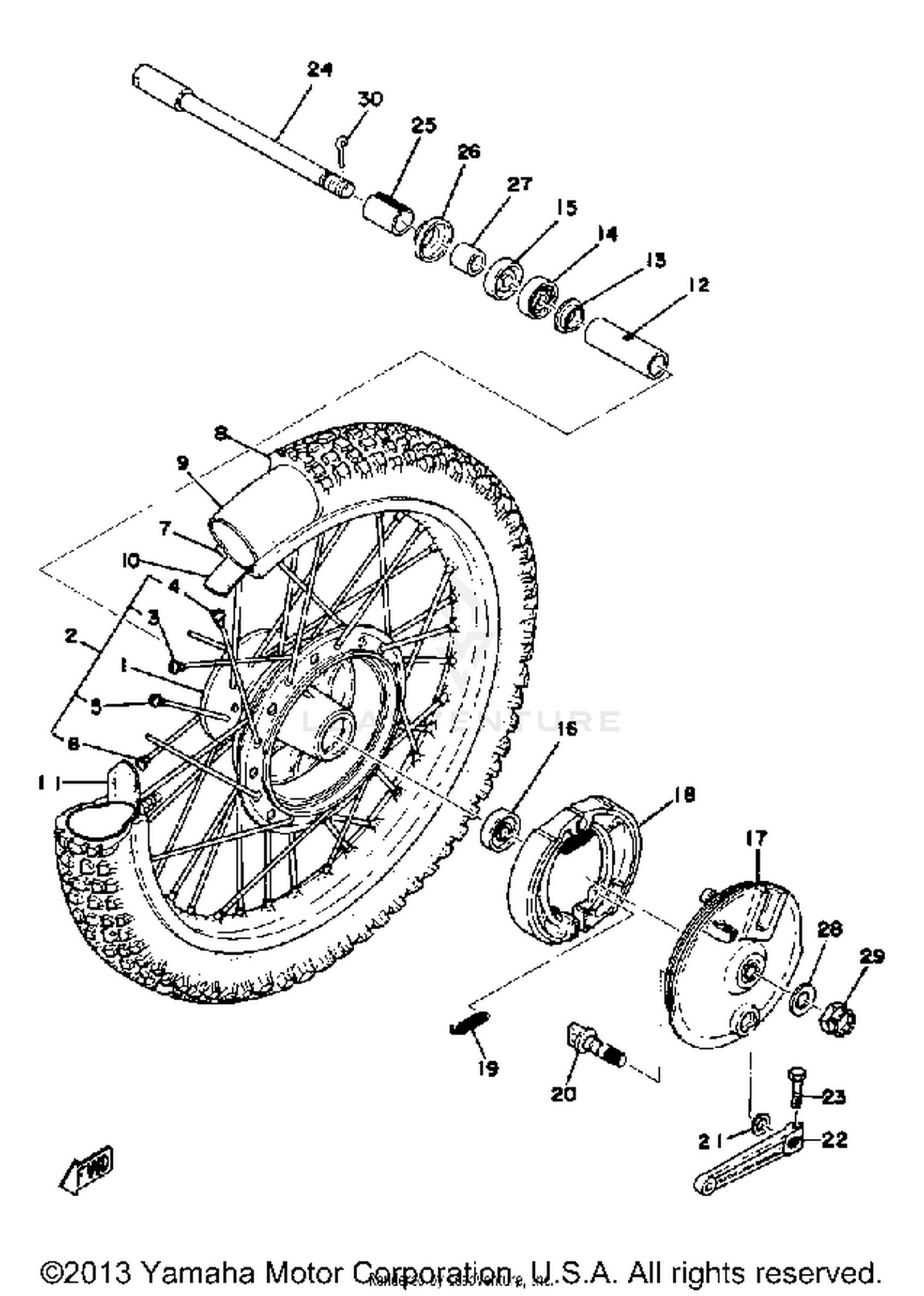

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
322-25111-00-98
|
$72.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
322-25104-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, INNER 1
322-25196-90-00
|
$7.68 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 1
322-25197-90-00
|
$8.46 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 2
322-25179-90-00
|
$8.99 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 2
322-25189-90-00
|
$9.99 | ||
|
Unavailable |
|||
|
#7
RIM 1.60X21
94416-21326-00
|
$513.99 | ||
|
Unavailable |
|||
|
#8
275X21 BS M7
94127-21216-00
|
$36.99 | ||
|
Unavailable |
|||
|
#
300X21 BS M7
94130-21226-00
|
$41.68 | ||
|
Unavailable |
|||
|
#9
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#11
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, BRAKE SHOE
483-25121-00-98
|
$92.80 | ||
|
Unavailable |
|||
|
#
PLATE, BRAKE SHOE
322-25121-00-98
|
$40.99 | ||
|
Unavailable |
|||
|
#18
BRAKE SHOE KIT
322-W2535-00-00
Superseded by 322-W253A-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#21
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#22
LEVER, CAMSHAFT 1
322-25155-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#23
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE, WHEEL
275-25181-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#25
COLLAR (322-25186-00)
90387-15116-00
|
$6.49 | ||
|
Unavailable |
|||
|
#26
COVER, HUB DUST
322-25118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR (322-25183-00)
90387-15418-00
|
$5.49 | ||
|
Unavailable |
|||
|
#28
WASHER, PLAIN
92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
