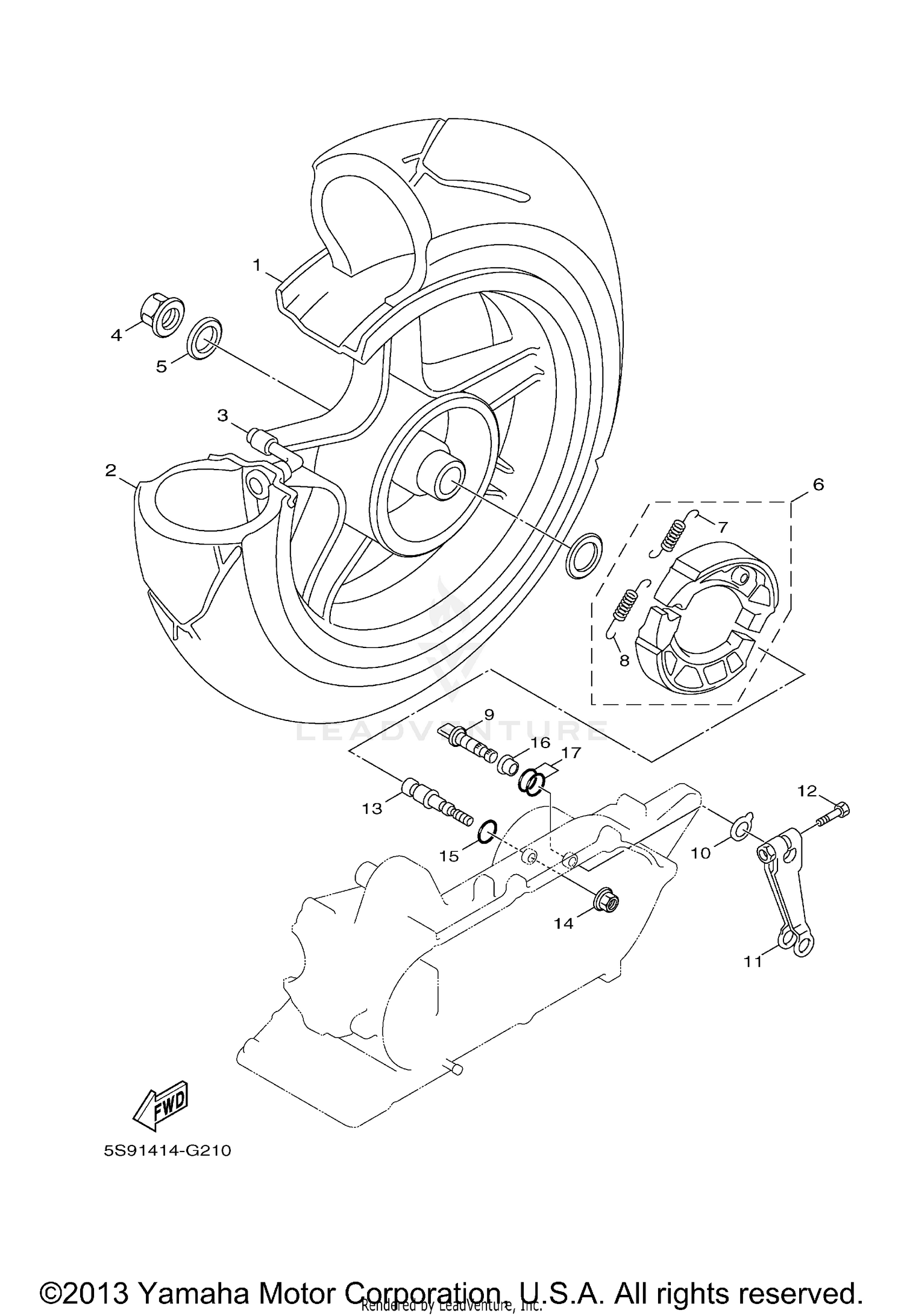

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
5ML-F5338-20-33
Superseded by 5ML-F5338-22-33
|
$283.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (130/70-12 56L)
94113-12802-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (PVR70)
93900-00814-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-14124-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-220J8-00
Superseded by 90201-225M9-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE SHOE SET
5ML-XF533-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-13800-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-16802-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT
5S9-F5351-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, INDICATOR
4VP-F533A-00-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, CAMSHAFT
5S9-F5355-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90101-06830-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, PIVOT
5ML-F5326-00-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE
95707-10500-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-09859-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, WHEEL
5ML-F5377-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-14802-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
