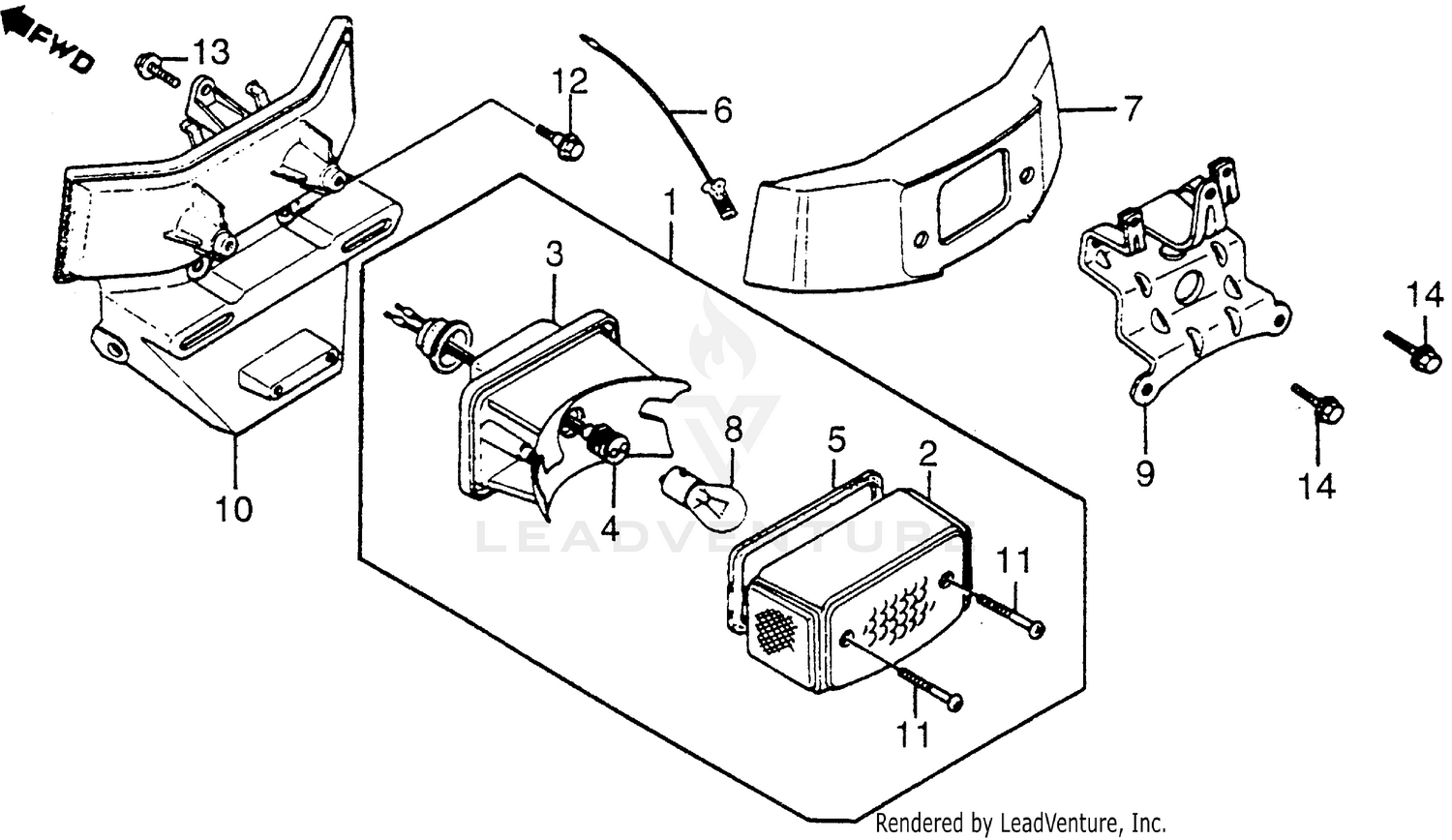

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT
33701-GAN-671
|
$89.69 | ||
|
Unavailable |
|||
|
#1
TAILLIGHT UNIT
33701-MC4-671
Superseded by 33701-GAN-671
|
$89.69 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT (COO) (STANLEY)
33702-MC4-671
Superseded by 33702-MGR-305
|
$35.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, TAILLIGHT
33703-MC4-671
|
$73.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, TAILLIGHT
33708-147-003
|
$10.91 | ||
|
Unavailable |
|||
|
#5
GASKET, TAILLIGHT LENS
33709-KB7-003
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE, GROUND
33711-GE8-671
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, TAILLIGHT *R133* (BERRY GLOW RED)
33720-GE8-671ZC
|
$17.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, TAILLIGHT *PB109* (NEPTUNE BLUE) (NOT AVAILABLE)
33720-GE8-671ZD
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-MG9-771
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)
34906-341-671
Superseded by 34906-MG9-771
|
$4.92 | ||
|
Unavailable |
|||
|
#9
STAY, TAILLIGHT
50358-GE8-000
|
$34.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, LICENSE PLATE (NOT AVAILABLE)
84710-GE8-671
|
$58.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TAPPING (4X40)
90105-GA7-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6MM)
90111-162-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-WASHER (5X20)
93891-05020-00
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
95701-06012-00
|
$1.62 | ||
|
Unavailable |
|||
