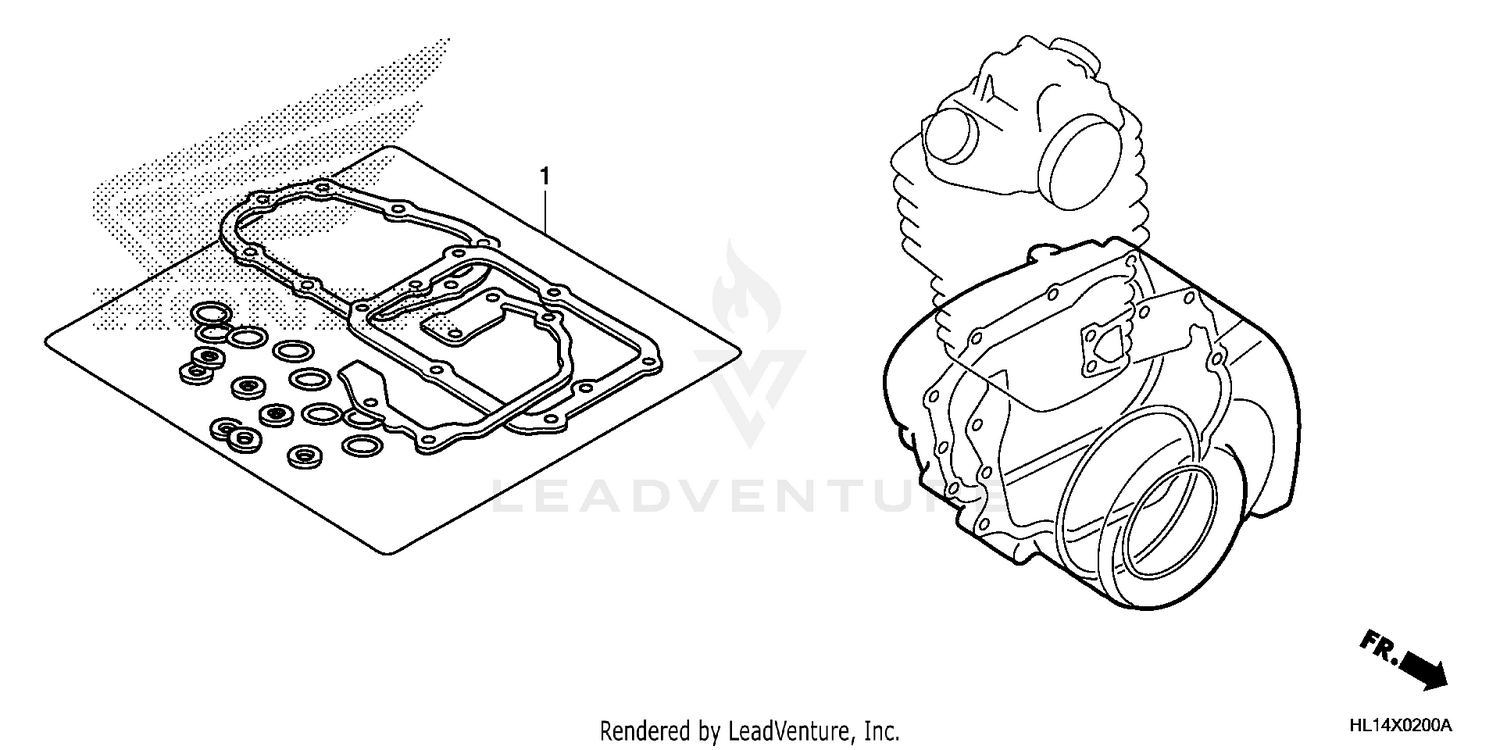

2009 Honda BIG RED MUV GASKET KIT B OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Labels
+
Other
+
Seat
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET KIT B (COMPONENT PARTS)
06112-HL1-A00
|
$165.30 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, RR. COVER
11345-HN8-000
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, ALTERNATOR COVER
11396-HN8-A60
|
$18.30 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, OIL STRAINER
15315-HN8-000
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, WATER PUMP COVER
19226-HN8-000
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, OIL CONTROL COVER
27135-HN8-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#1
WASHER, SEALING (6.5MM)
90412-HN8-003
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
WASHER, SEALING (10MM)
90443-MB0-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#1
WASHER A, SEALING (6MM)
90443-035-000
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET (8MM)
90471-580-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (19.20X1.90) (NOK)
91301-P7X-003
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (75X2.5)
91301-107-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (35.5X3) (NOK)
91301-428-003
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (7X1.7)
91301-473-003
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (43X2.5)
91302-HN8-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (15X2.5)
91302-377-000
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (17.8X1.9)
91303-HN8-003
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (13.8X2.5)
91303-377-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (11.5X2.3)
91303-679-003
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (9X1.8)
91305-GE1-920
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (17X3.6)
91305-HN8-003
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (27X2) (ARAI)
91305-KF0-003
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (5X1.7) (ARAI)
91305-MG7-003
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (22.1X2)
91305-679-003
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (24.4X3.1)
91312-MG7-003
|
$6.88 | ||
|
Unavailable |
|||
|
#1
O-RING (14.8X2.2)
91313-MB0-003
Superseded by 91313-MG7-004
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (14.8X2.2)
91313-MG7-004
|
$3.99 | ||
|
Unavailable |
|||
|
#1
O-RING (8.5X1.9) (NOK)
91314-PC9-003
Superseded by 91314-PC9-004
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (8.5X1.9) (NOK)
91314-PC9-004
|
$3.66 | ||
|
Unavailable |
|||
|
#1
O-RING (6X1.5) (N0K)
91315-PC9-004
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (8.4X2.4)
91316-MJ8-003
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (17.0X2.5) (ARAI)
91333-KE5-003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#1
O-RING (17.0X2.5) (ARAI)
91333-567-010
Superseded by 91333-KE5-003
|
$2.19 | ||
|
Unavailable |
|||
|
#1
O-RING (22.1X2)
91355-MB0-003
Superseded by 91305-679-003
|
$5.10 | ||
|
Unavailable |
|||
|
#1
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
