1989 Honda CB400F CB-1 PEDAL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+

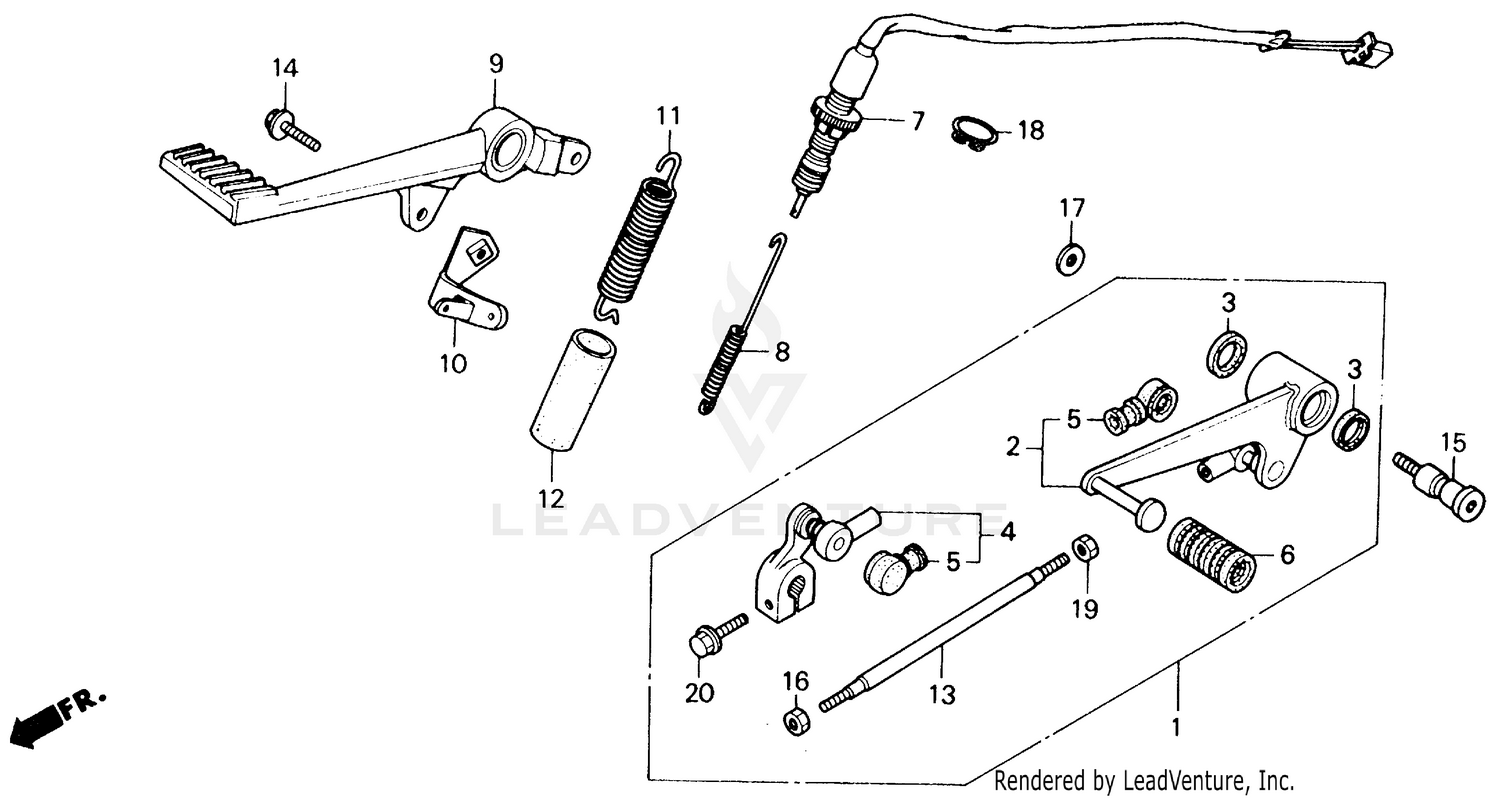

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)
24700-KAF-670
|
$80.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, GEARSHIFT (SOURCE: VINTAGE PARTS INC.)
24705-KAF-670
|
$71.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, DUST SEAL
24706-MK3-770
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, CHANGE (NOT AVAILABLE)
24710-KAF-670
|
$45.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
24724-422-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-KA2-405
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-MR7-000
Superseded by 35350-KA2-405
|
$18.53 | ||
|
Unavailable |
|||
|
#8
SPRING, STOP SWITCH (NOT AVAILABLE)
35357-KAF-000
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, BRAKE (NOT AVAILABLE)
46500-KAF-000
|
$99.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOOK, RETURN SPRING (NOT AVAILABLE)
46502-KAF-000
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE)
46514-KAF-000
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, BRAKE PEDAL SPRING (SOURCE: VINTAGE PARTS INC.)
46515-KS6-700
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, TIE ROD (NOT AVAILABLE)
90065-KAF-670
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (8X18) (NOT AVAILABLE)
90106-MR8-000
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CHANGE PIVOT
90115-KAF-000
|
$22.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)
90201-700-000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (8MM)
90514-921-000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94002-06020-0S
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X20)
95900-06020-00
Superseded by 95701-06020-00
|
$1.62 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.62 | ||
|
Unavailable |
|||
