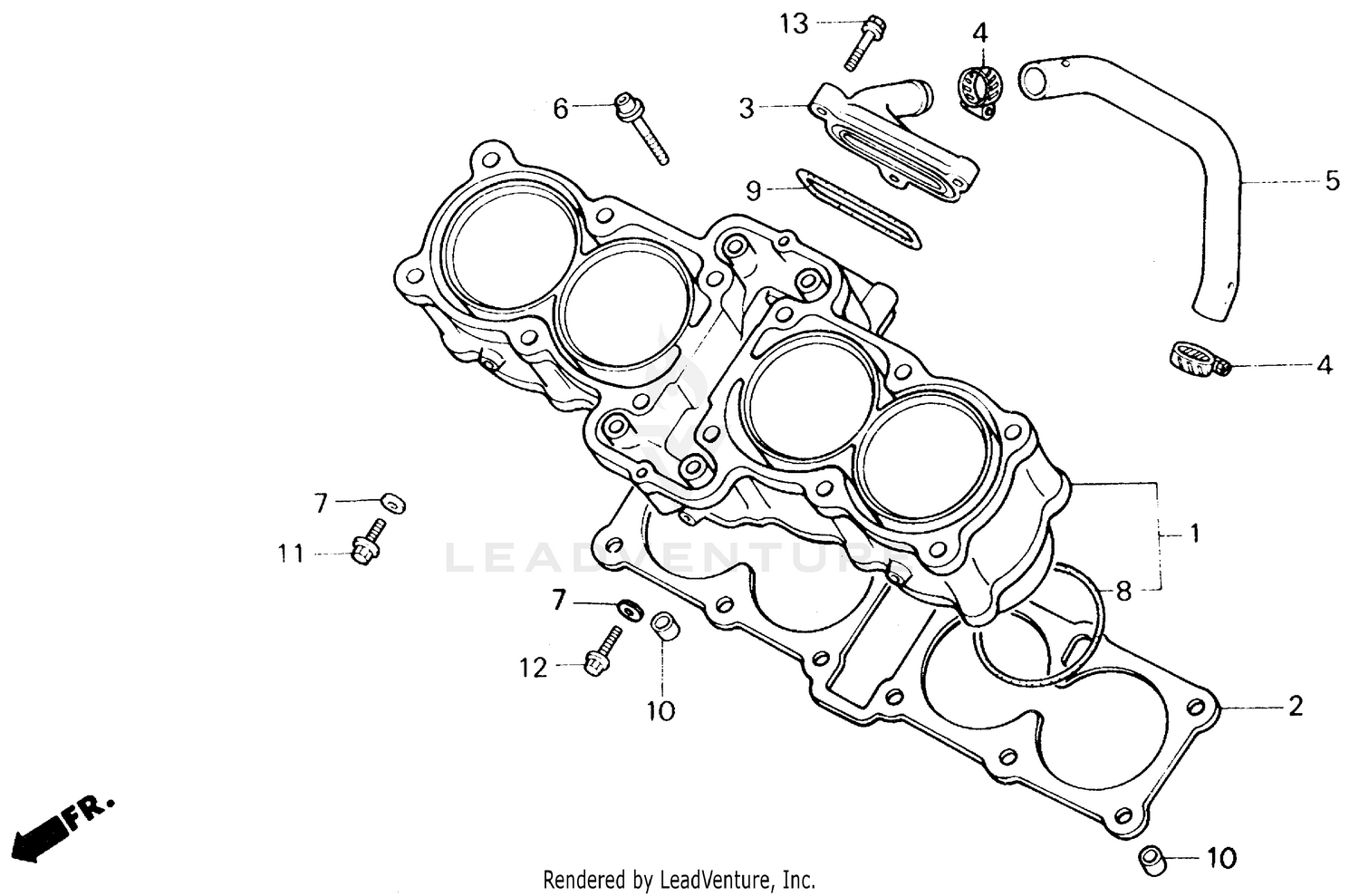

1990 Honda CB400F CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (NOT AVAILABLE)
12100-KAF-000
|
$729.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER (NOT AVAILABLE)
12191-KY2-000
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, WATER (NOT AVAILABLE)
19063-KT8-000
|
$55.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, WATER HOSE
19503-MB1-870
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, WATER HOSE
19516-MJ8-000
Superseded by 19503-MB1-870
|
$14.35 | ||
|
Unavailable |
|||
|
#5
HOSE A, WATER (NOT AVAILABLE)
19525-KT8-000
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE SOCKET (6X32)
90091-MG3-000
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (61X2) (ARAI)
91304-KT8-003
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (61X2) (ARAI)
91304-KT8-004
Superseded by 91304-KT8-003
|
$3.13 | ||
|
Unavailable |
|||
|
#9
GASKET, WATER JOINT (NOT AVAILABLE)
91307-KT8-003
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL (10X16)
94301-10160
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X14)
90018-KY6-000
Superseded by 95701-06014-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.07 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
