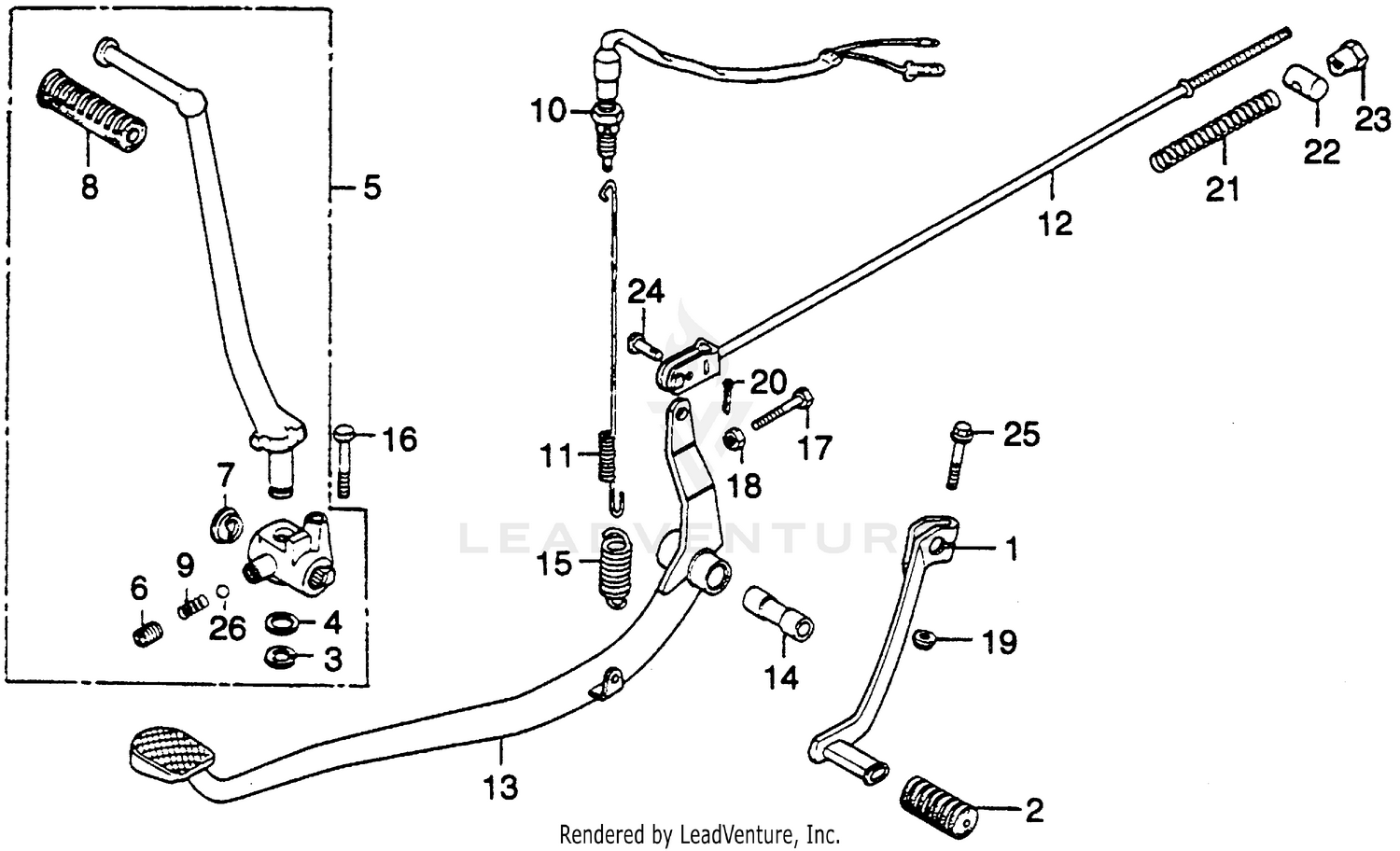

Brake Pedal + Change Pedal + Kick Starter Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-413-003
|
$43.21 | ||
|
Unavailable |
|||
|
#1
PEDAL, GEARSHIFT
24700-417-000
Superseded by 24700-413-003
|
$43.21 | ||
|
Unavailable |
|||
|
#2
RUBBER, GEARSHIFT PEDAL
24781-419-000
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, KICK STARTER ARM
28293-333-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, KICK STARTER ARM (NOT AVAILABLE)
28294-333-000
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-413-000
|
$99.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, KICK ARM (NOT AVAILABLE)
28303-310-010
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, KICK ARM (NOT AVAILABLE)
28305-310-000
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, KICK STARTER
28311-329-000
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, KICK STARTER STOPPER (NOT AVAILABLE)
28333-310-000
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., RR. STOP
35350-KJ9-405
|
$19.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., RR. STOP
35350-MC9-830
Superseded by 35350-KJ9-405
|
$19.67 | ||
|
Unavailable |
|||
|
#10
SWITCH ASSY., RR. STOP
35350-149-003
Superseded by 35350-KJ9-405
|
$19.67 | ||
|
Unavailable |
|||
|
#11
SPRING, STOP SWITCH
35357-413-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, RR. BRAKE
43451-393-000
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
46500-413-000
|
$68.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, RR. BRAKE PIVOT (NOT AVAILABLE)
46501-413-000
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, RR. BRAKE (NOT AVAILABLE)
46514-413-000
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (8X43)
90125-413-000
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X35)
92035-06035-0H
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X35)
92035-06035-08
Superseded by 92035-06035-0H
|
$0.72 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.32 | ||
|
Unavailable |
|||
|
#20
PIN, COTTER (1.6X12)
94201-16120
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING A, BRAKE ROD
95014-73100
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING A, BRAKE ROD
95014-73300
Superseded by 95014-73100
|
$1.42 | ||
|
Unavailable |
|||
|
#22
JOINT, BRAKE ARM
95015-32001
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN B, BRAKE ROD JOINT
95015-52000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.64 | ||
|
Unavailable |
|||
|
#26
BALL, STEEL (#10) (5/16)
96211-10000
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
