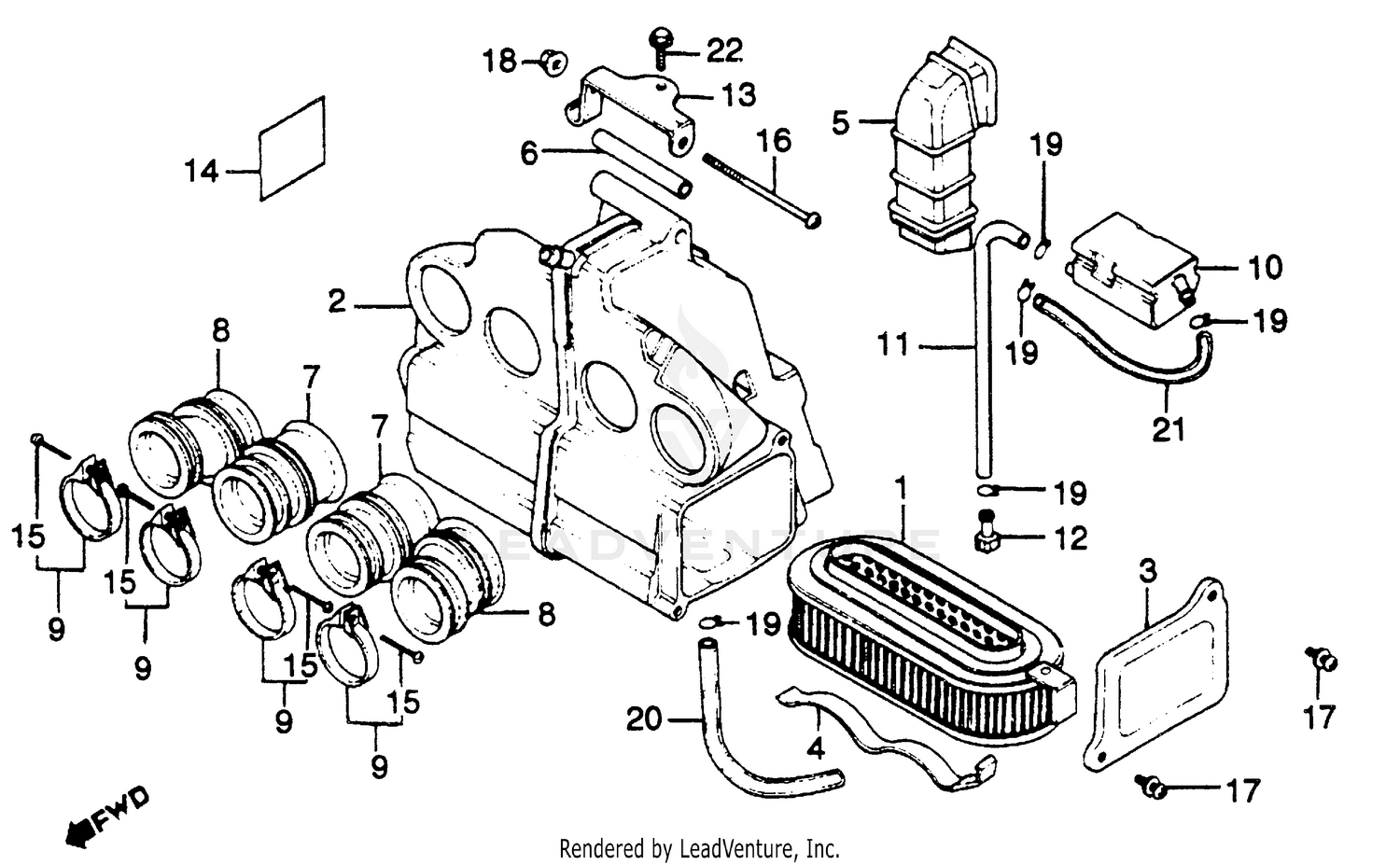

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, AIR CLEANER
17211-425-000
|
$38.17 | ||
|
Available to order. Add to View Price |
|||
|
#1
ELEMENT, AIR CLEANER
17211-MC3-670
Superseded by 17211-425-000
|
$38.17 | ||
|
Unavailable |
|||
|
#2
HOUSING, AIR CLEANER
17213-MC3-670
Superseded by 17213-425-020
|
$189.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, AIR CLEANER
17213-461-000
Superseded by 17213-425-020
|
$189.89 | ||
|
Unavailable |
|||
|
#2
HOUSING, AIR CLEANER
17213-425-010
Superseded by 17213-425-020
|
$189.89 | ||
|
Unavailable |
|||
|
#2
HOUSING, AIR CLEANER
17213-425-020
|
$189.89 | ||
|
Unavailable |
|||
|
#3
CAP, AIR CLEANER (NOT AVAILABLE)
17222-425-000
|
$18.15 | ||
|
Unavailable |
|||
|
#4
SPRING, ELEMENT SETTING
17223-425-000
|
$17.06 | ||
|
Unavailable |
|||
|
#5
DUCT, AIR CLEANER IN. (NOT AVAILABLE)
17240-425-670
|
$19.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE A, AIR CLEANER CONNECTING
17253-425-000
|
$29.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE B, AIR CLEANER CONNECTING
17254-425-000
|
$29.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, AIR CLEANER CONNECTING TUBE (60)
17256-425-010
Superseded by 95018-60250
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK, STORAGE (NOT AVAILABLE)
17300-425-000
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULK HOSE, VINYL (8X12X8000) (8X12X190)
95003-23008-60M
|
$41.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, BREATHER TUBE
17370-419-700
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, AIR CLEANER HANGER (NOT AVAILABLE)
17375-425-000
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (5X25)
93500-05025-0G
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X70)
93500-06070
Superseded by 93500-06070-0A
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X70)
93500-06070-0A
|
$1.18 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (5X16)
93891-05016-07
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, TUBE (C12)
95002-80000
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, VINYL (8X12X3000) (8X12X230)
95003-23003-10M
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, VINYL (8X12X3000) (8X12X360)
95003-23003-10M
|
$14.50 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.62 | ||
|
Unavailable |
|||
