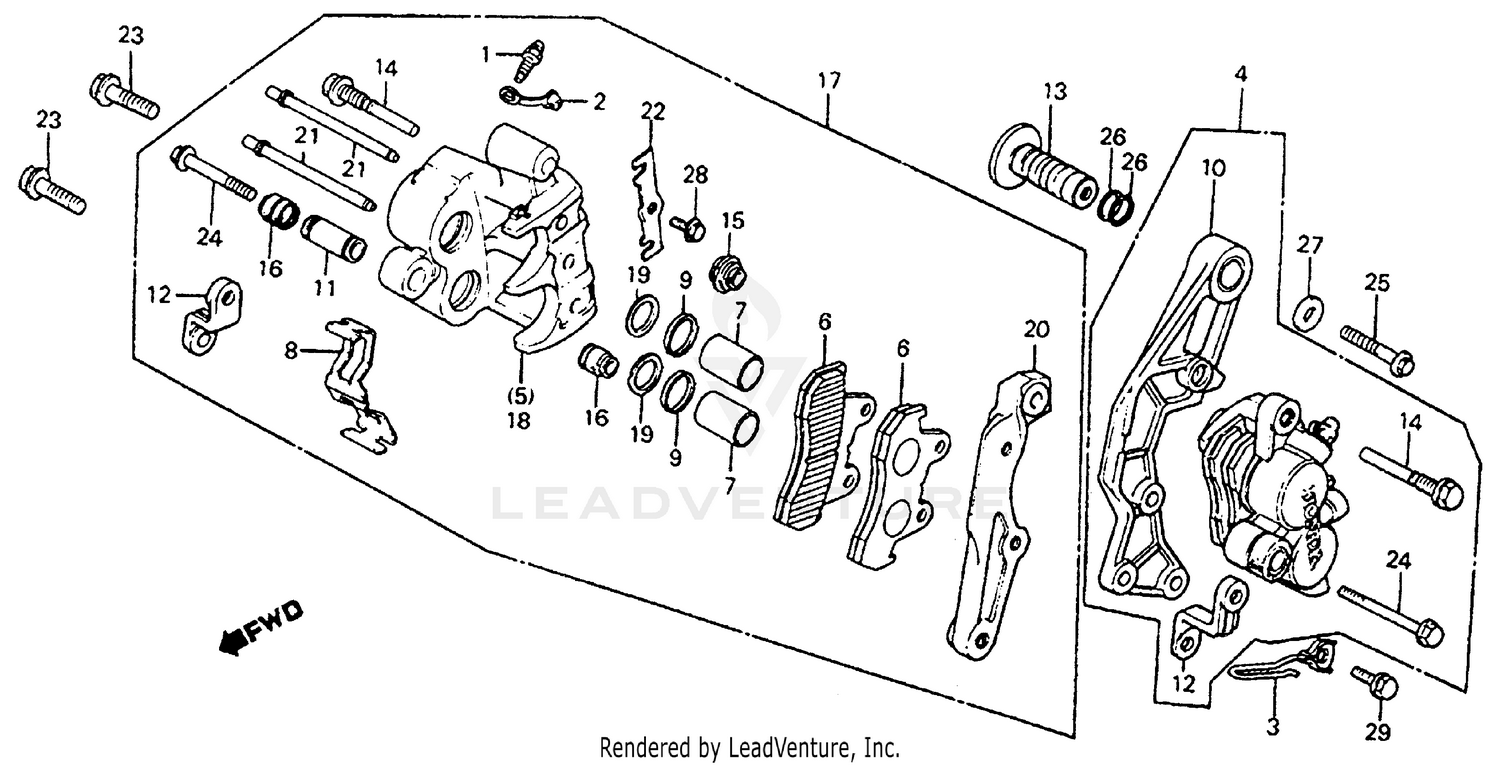

1983 Honda CB750SC NIGHTHAWK FRONT BRAKE CALIPER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
PAD SET
451A0-MC7-670
Superseded by 06435-MC7-405
|
$51.17 | ||
|
Unavailable |
|||
|
#1
SCREW, BLEEDER
43352-568-003
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, BLEEDER
43353-461-771
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, SPEEDOMETER CABLE
44832-ME1-670
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY., L. FR. (NOT AVAILABLE)
45100-MA5-771
Superseded by 45100-MA5-772
|
$341.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY., L. FR. (NOT AVAILABLE)
45100-MA5-772
|
$341.64 | ||
|
Unavailable |
|||
|
#4
CALIPER, L. FR.
45100-ME1-671
Superseded by 45100-ME1-673
|
$355.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER, L.
45101-MA3-006
|
$159.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER, L. (NOT AVAILABLE)
45101-MA5-771
|
$128.52 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER, L.
45101-MC7-006
Superseded by 45101-MA3-006
|
$159.31 | ||
|
Unavailable |
|||
|
#6
PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
45105-KL8-004
Superseded by 45105-KL8-014
|
$32.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
45105-KL8-014
|
$32.15 | ||
|
Unavailable |
|||
|
#6
PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
45105-MC7-004
Superseded by 45105-KL8-014
|
$32.15 | ||
|
Unavailable |
|||
|
#6
PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
45105-MC7-014
Superseded by 45105-KL8-014
|
$32.15 | ||
|
Unavailable |
|||
|
#7
PISTON
45107-MA3-006
|
$57.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, PAD
45108-MA3-006
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, PAD (NOT AVAILABLE)
45108-MA5-771
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL
45109-MA5-771
Superseded by 45109-166-006
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL
45109-166-006
|
$7.60 | ||
|
Unavailable |
|||
|
#10
BRACKET, L. FR.
45110-MA5-771
|
$135.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, L. FR.
45110-ME1-671
|
$135.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLEEVE
45111-MA3-006
|
$15.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLEEVE (NOT AVAILABLE)
45111-MA5-771
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRIDGE, CALIPER BRACKET (NOT AVAILABLE)
45113-ME1-670
|
$23.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLEEVE, FR. CALIPER BRACKET
45114-MB7-610
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, BOLT
45131-MA3-006
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT B
45133-MA3-006
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT, PIN
45133-MA5-771
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT, PIN
45133-166-016
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT, BOLT
45134-MA5-771
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
CALIPER, R. FR.
45200-MA5-771
Superseded by 45200-MA5-406
|
$288.01 | ||
|
Available to order. Add to View Price |
|||
|
#17
CALIPER, R. FR.
45200-MA5-772
Superseded by 45200-MA5-406
|
$288.01 | ||
|
Unavailable |
|||
|
#17
CALIPER, R. FR.
45200-ME1-671
Superseded by 45200-ME1-673
|
$394.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
CALIPER, R. (NOT AVAILABLE)
45201-MA3-006
|
$125.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
BODY, R. CALIPER (NOT AVAILABLE)
45201-MA5-771
|
$121.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, PISTON
45209-166-006
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, PISTON
45209-183-003
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, R. FR. (NOT AVAILABLE)
45210-MA5-006
|
$99.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, R.
45210-MA5-771
|
$135.72 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, HANGER
45215-MA3-006
|
$13.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, PAD RETAINING (NOT AVAILABLE)
45215-MA5-771
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE
45217-MA3-006
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE (NOT AVAILABLE)
45217-MA5-771
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (10X40) (NOT AVAILABLE)
90164-460-840
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X49)
90180-MA3-006
Superseded by 90180-MN8-006
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X55)
90180-MA3-660
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (10X53)
90154-KT7-000
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (10X53) (NOT AVAILABLE)
90188-ME1-670
Superseded by 90154-KT7-000
|
$5.97 | ||
|
Unavailable |
|||
|
#26
O-RING (16.8X1.9)
91302-MC7-611
Superseded by 91347-PY3-000
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (16.8X1.9)
91347-PY3-000
|
$2.83 | ||
|
Unavailable |
|||
|
#27
WASHER, PLAIN (10MM)
94102-10000
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
95700-06010-07
Superseded by 95701-06010-07
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X10)
95701-06010-07
|
$1.62 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (8X20)
95700-08020-07
Superseded by 95701-08020-07
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X20)
95701-08020-07
|
$1.83 | ||
|
Unavailable |
|||
