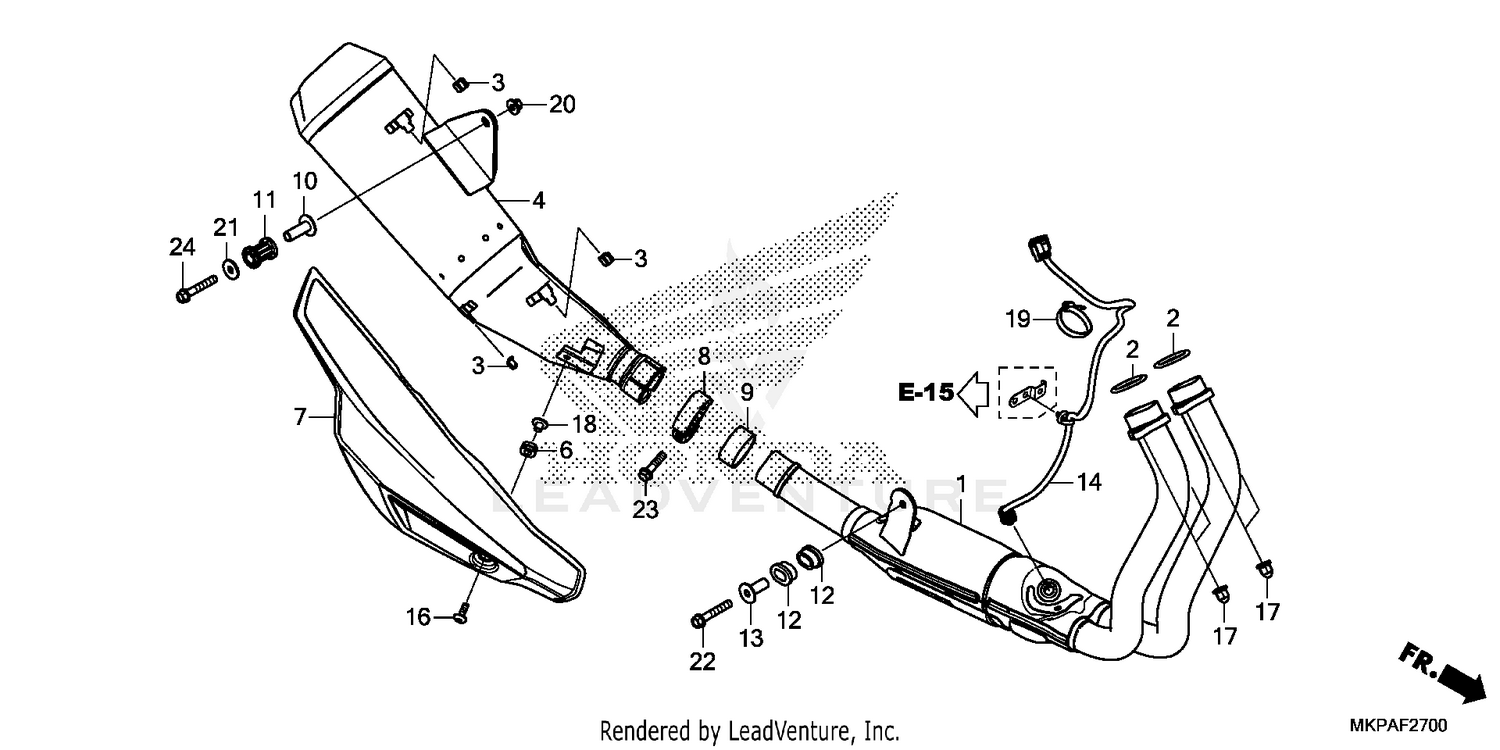

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EX.
18150-MKP-J00
|
$1,164.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, EX. PIPE
18291-MN4-920
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, PROTECTOR
18293-MN0-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
MUFFLER
18310-MKP-J00
|
$459.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER A, PROTECTOR
18320-196-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, MUFFLER
18350-MJW-J00
|
$125.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, L. RR. MUFFLER (R. SIDE)
18376-413-000
|
$42.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, MUFFLER
18391-MJW-J01
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, MUFFLER MOUNTING
18420-MGZ-J00
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, MUFFLER MOUNTING
18421-MGZ-J00
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, EX. PIPE MOUNTING
18422-MGZ-J00
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, EX. PIPE MOUNTING
18423-MGZ-J00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, AIR FUEL RATIO
36533-MKP-D01
|
$182.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X20)
90118-MGZ-J00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. CAP (8MM)
90304-KPH-700
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, HEAD SIDE COVER
90502-KGB-610
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN (8MM)
94103-08000
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X50)
95701-08050-00
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X35)
96400-08035-04
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X50)
95801-08050-00
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X50)
96400-08050-00
Superseded by 95801-08050-00
|
$3.58 | ||
|
Unavailable |
|||
